Outer Rear View Mirror: Replacement

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.
• A bolt without a torque specification is shown in the standard bolt chart (see SUSPENSION CONTROL SYSTEM ).

1. REMOVE DOOR INSIDE HANDLE BEZEL NO.2 LH (see  OVERHAUL  )
2. REMOVE FRONT ARMREST BASE PANEL UPPER LH (see  OVERHAUL  )
3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH (see  OVERHAUL  )
4. REMOVE DOOR FRAME GARNISH LH (see  OVERHAUL  )
5. REMOVE OUTER REAR VIEW MIRROR ASSY
   1. Disconnect the connector.
   2. Remove the 3 bolts and mirror.

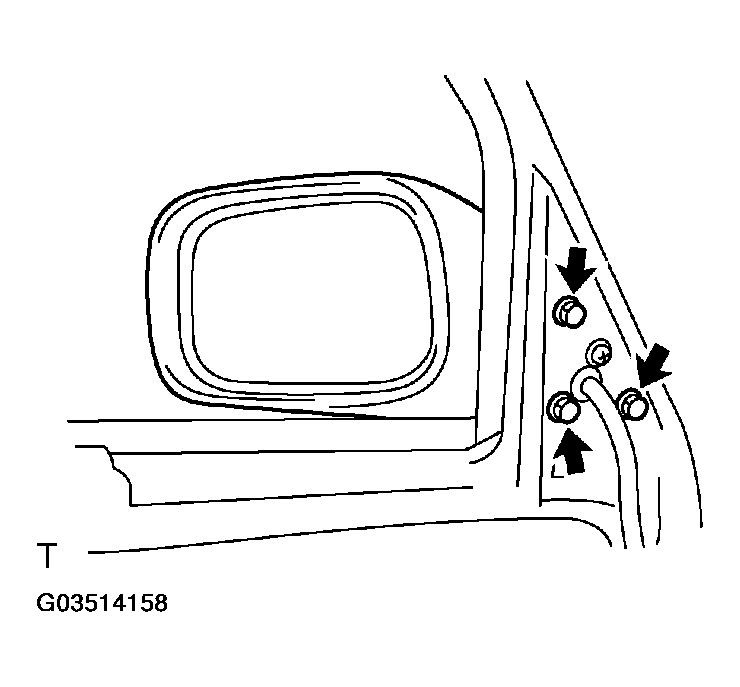

      Fig 1: Removing 3 Bolts And Mirror

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE OUTER MIRROR COVER
   1. Insert the shop rag between the mirror and mirror body. Wrap the mirror in the shop rag.
   2. Pull up the lower side of the shop rag to disconnect the mirror joint.

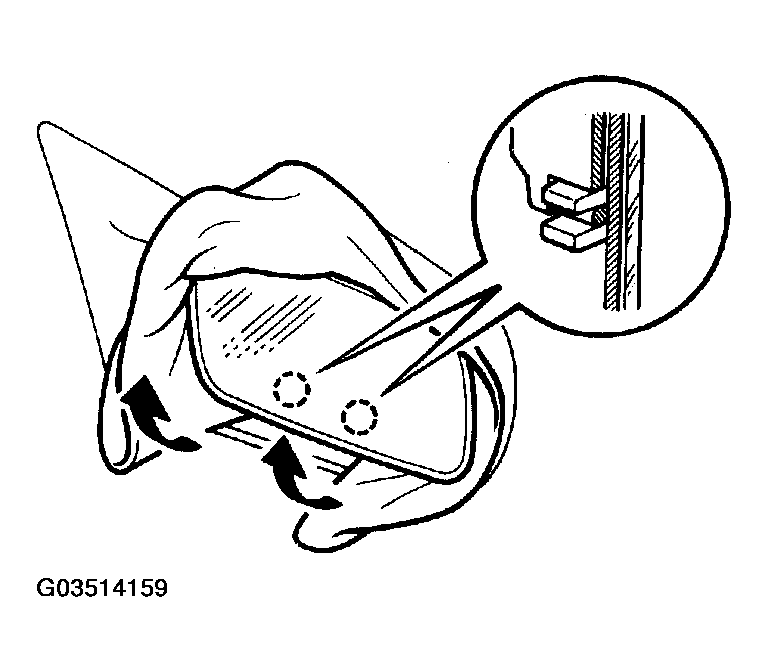

      Fig 2: Pulling Up Lower Side Of Shop Rag To Disconnecting Mirror Joint

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Pull up the mirror and disconnect it.

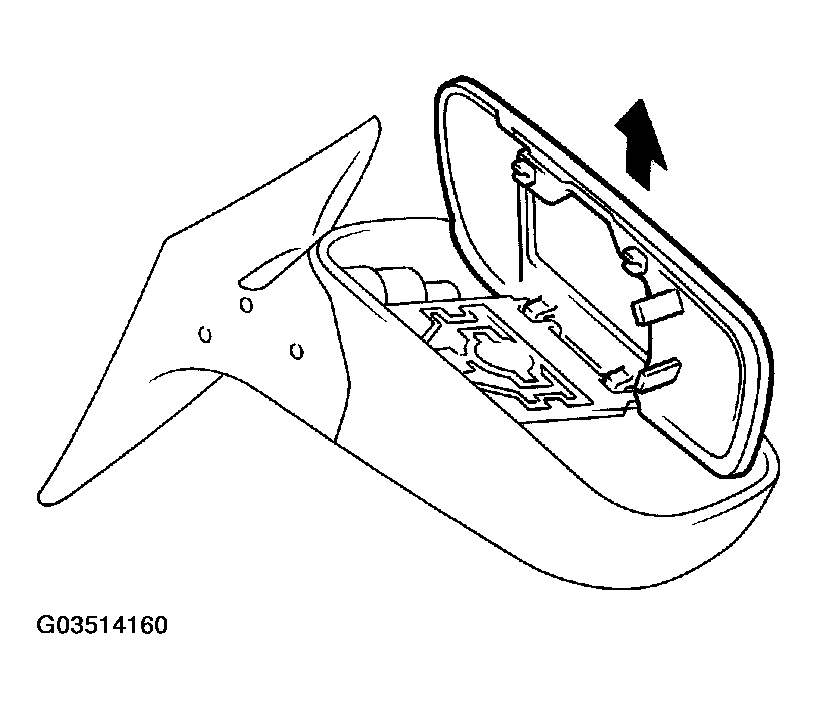

      Fig 3: Pulling Up Mirror

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Using a small screwdriver, disconnect the connector.

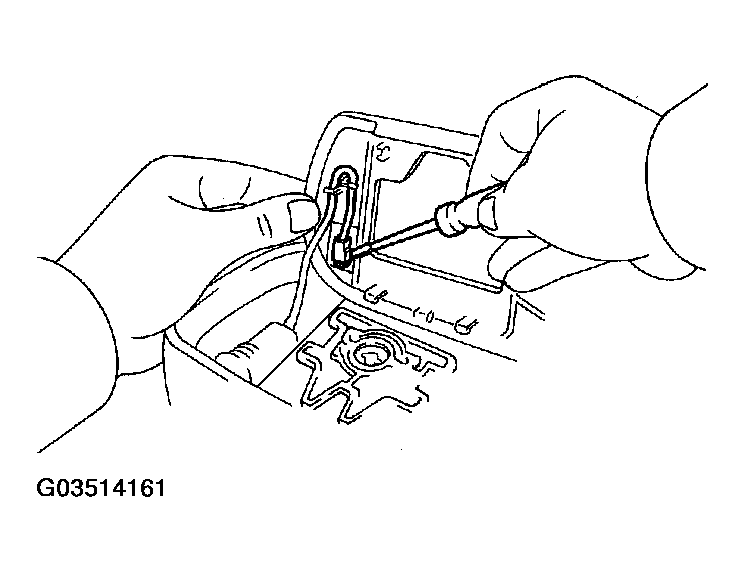

      Fig 4: Disconnecting Connector Using Small Screwdriver

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Remove the 4 screws and mirror cover.

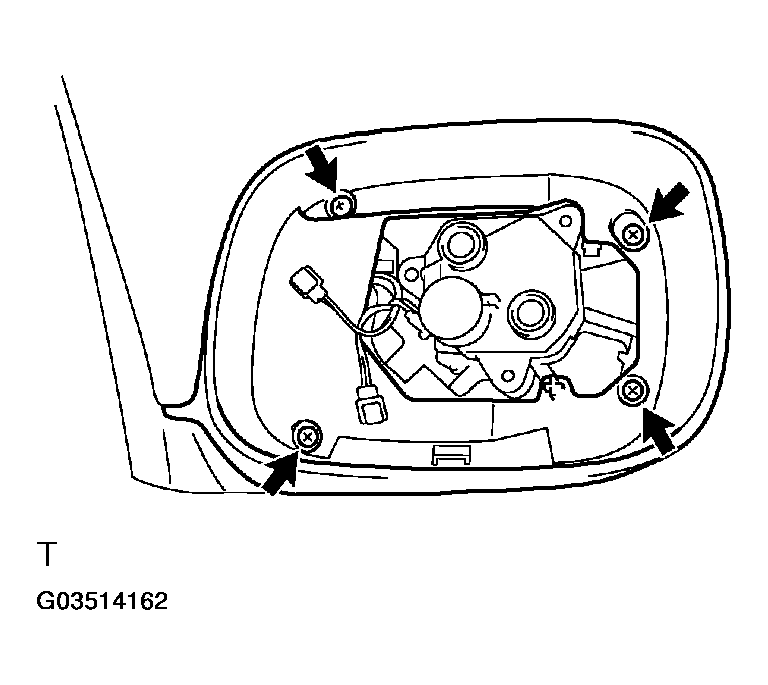

      Fig 5: Removing Screws And Mirror Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   6. Remove the mirror lamp.

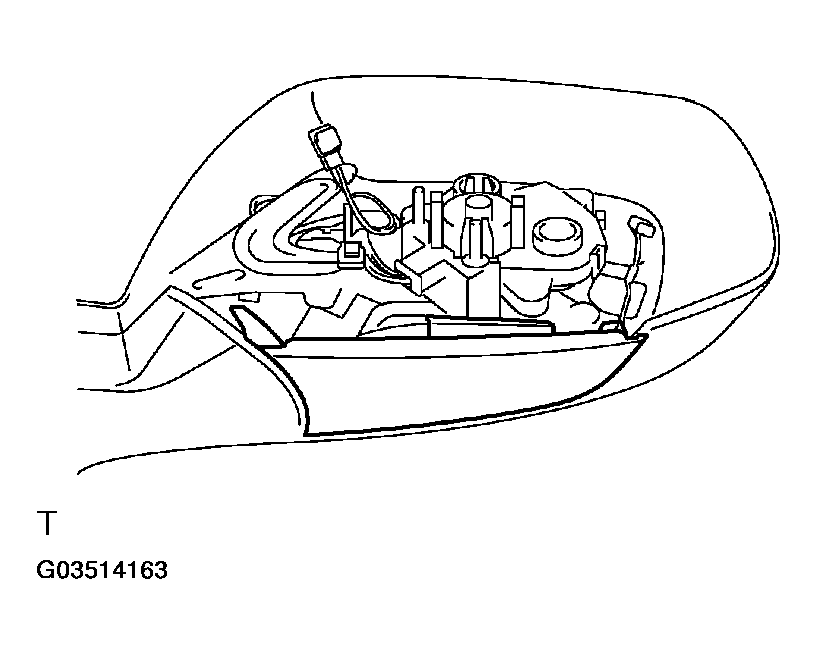

      Fig 6: Removing Mirror Lamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

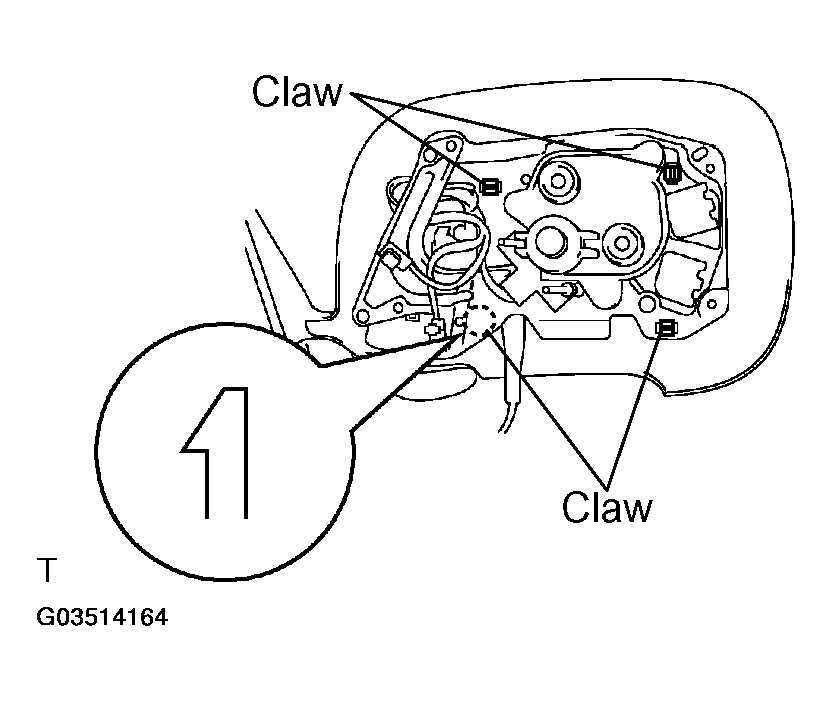

   7. Using a screwdriver, disengage the 4 claws and remove the back mirror cover.
      Fig 7: Disengaging Claws And Removing Back Mirror Cover Using Screwdriver

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL OUTER REAR VIEW MIRROR ASSY
   1. Install the mirror with the 3 bolts.

      Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

      Fig 8: Installing Mirror With Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
