Data List/Active Test

DATA LIST
HINT:

Using the hand-held tester DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to shorten labor time.
1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Read the DATA LIST according to the display on the tester.

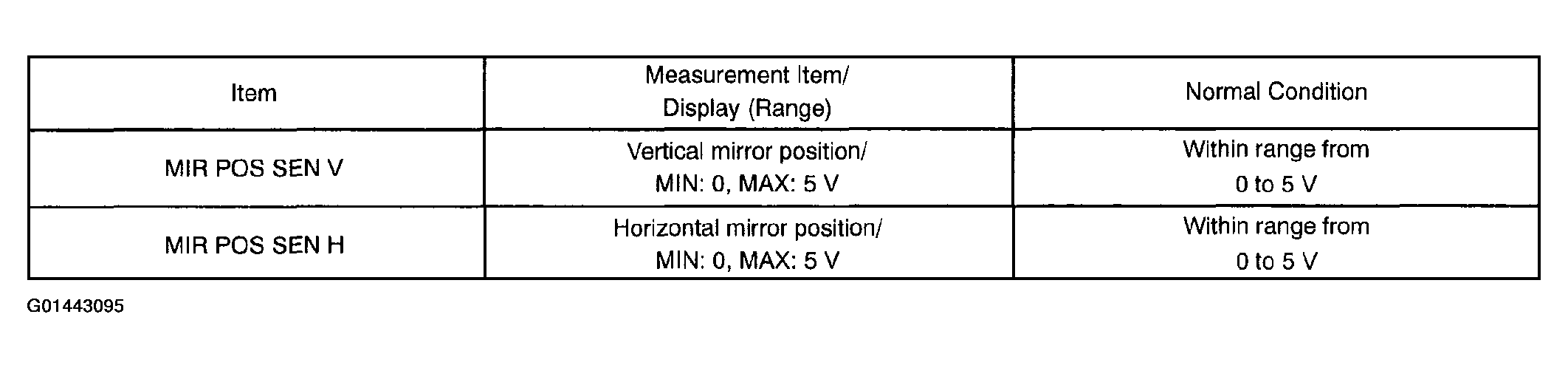

Fig 1: Driver Door ECU -: Data List
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

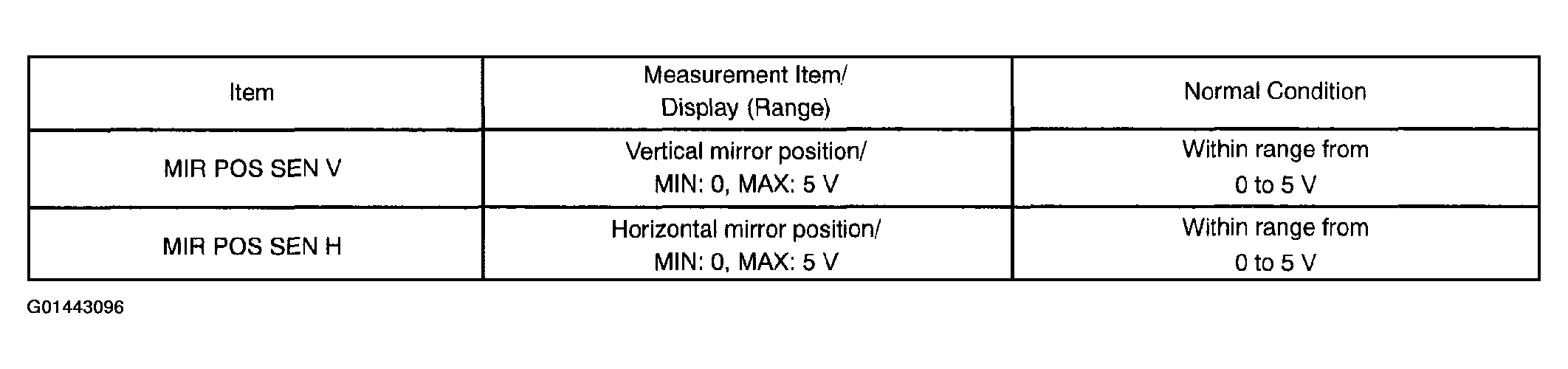

Fig 2: Front Passenger Door ECU -: Data List
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

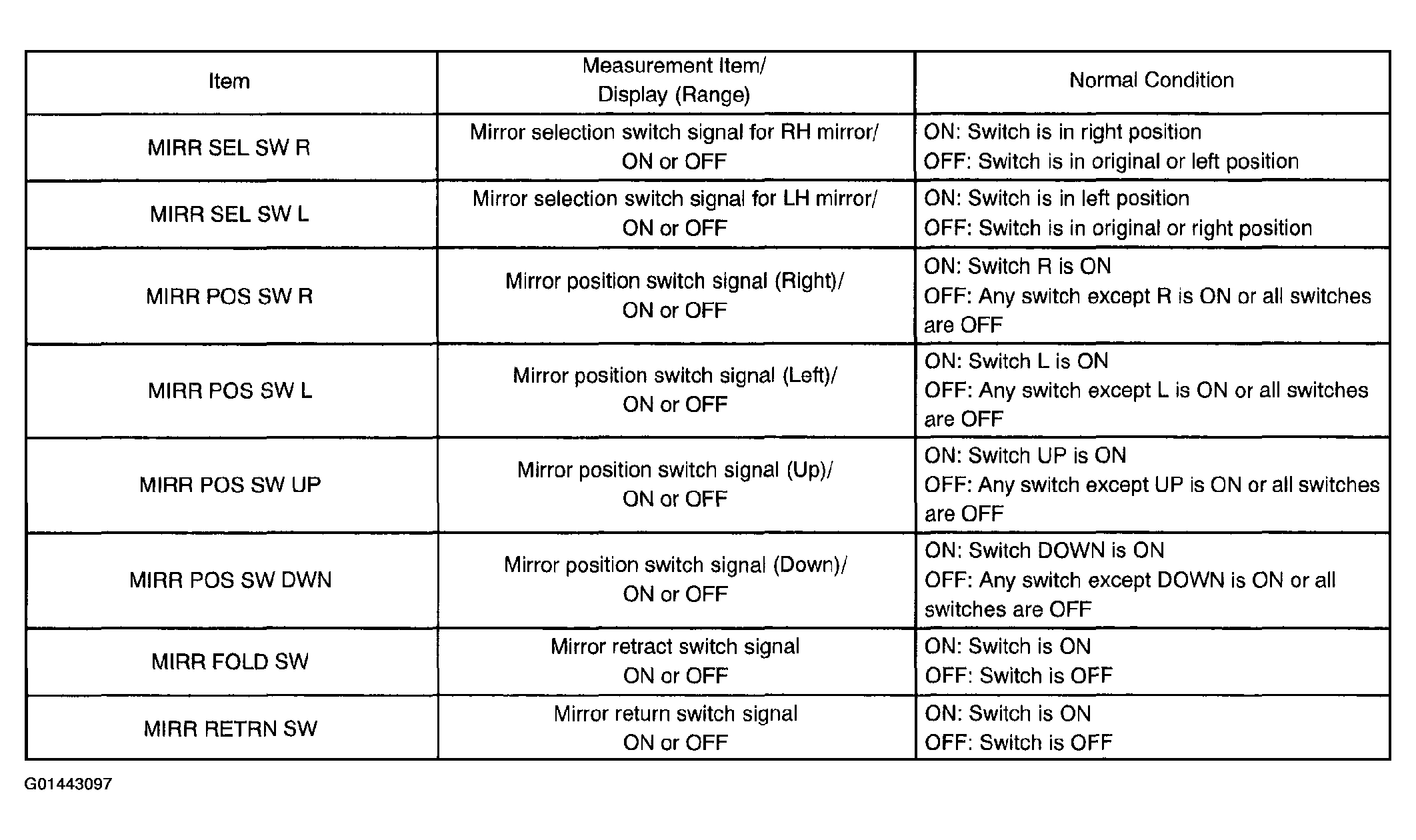

Fig 3: Driver Side J/B ECU -: Data List
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

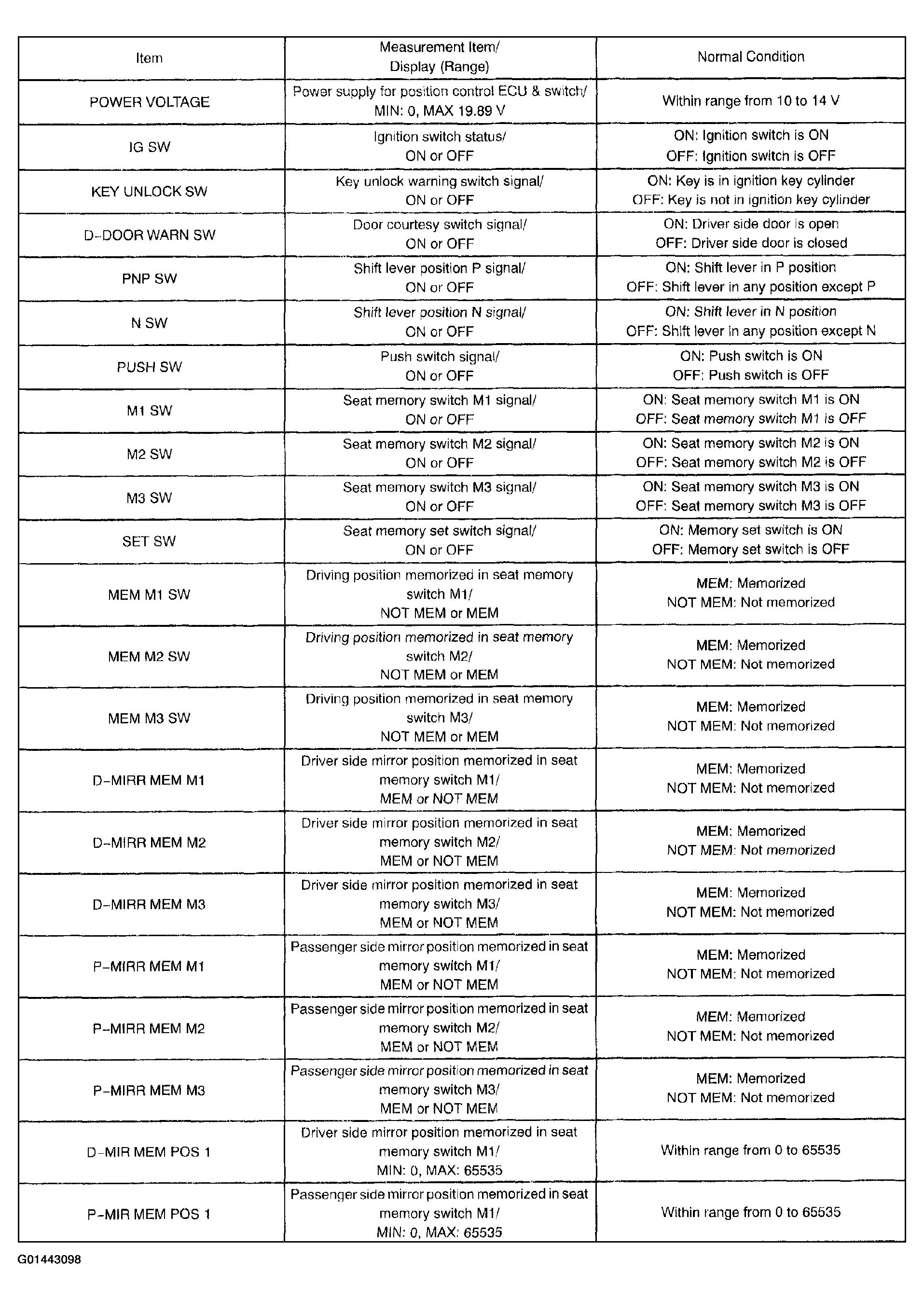

Fig 4: Driver Seat ECU -: Data List (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

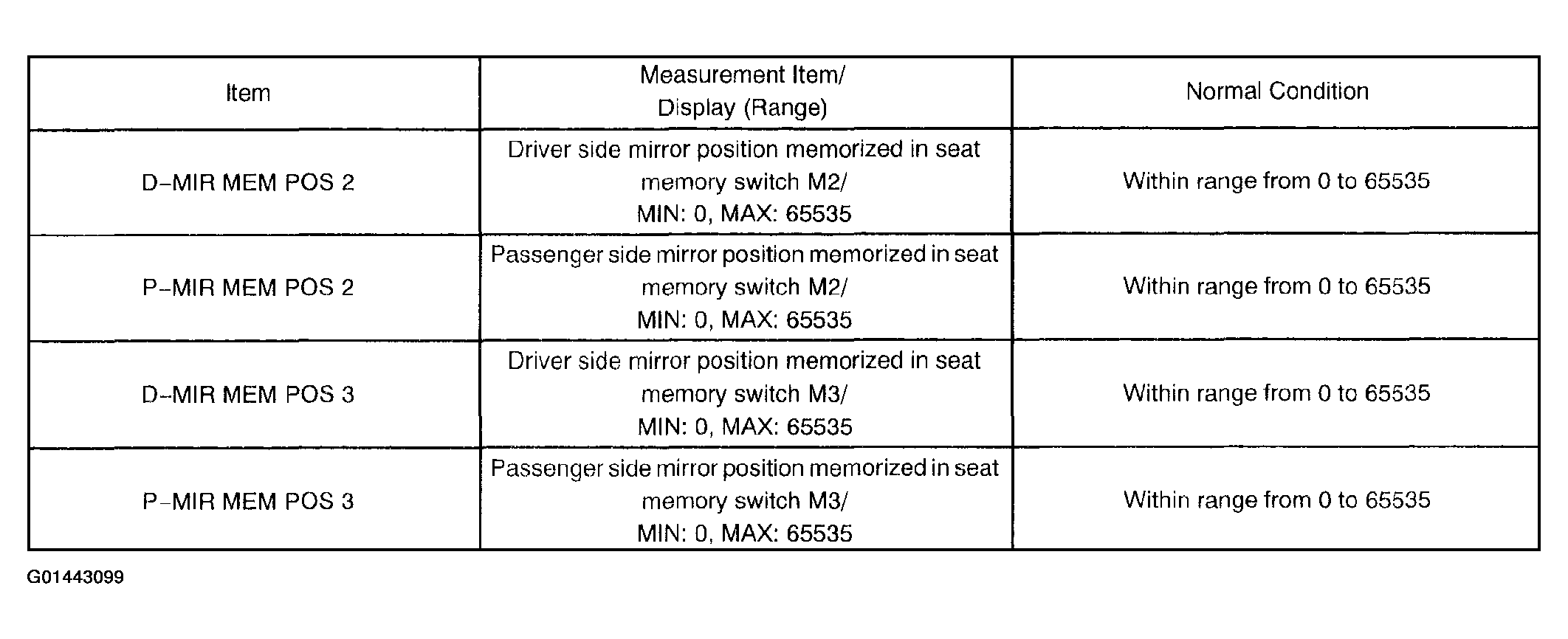

Fig 5: Driver Seat ECU -: Data List (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ACTIVE TEST
HINT:

Performing the hand-held tester ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in the troubleshooting is one way to shorten labor time. The DATA LIST can be displayed during the ACTIVE TEST.
1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Perform the ACTIVE TEST according to the display on the tester.

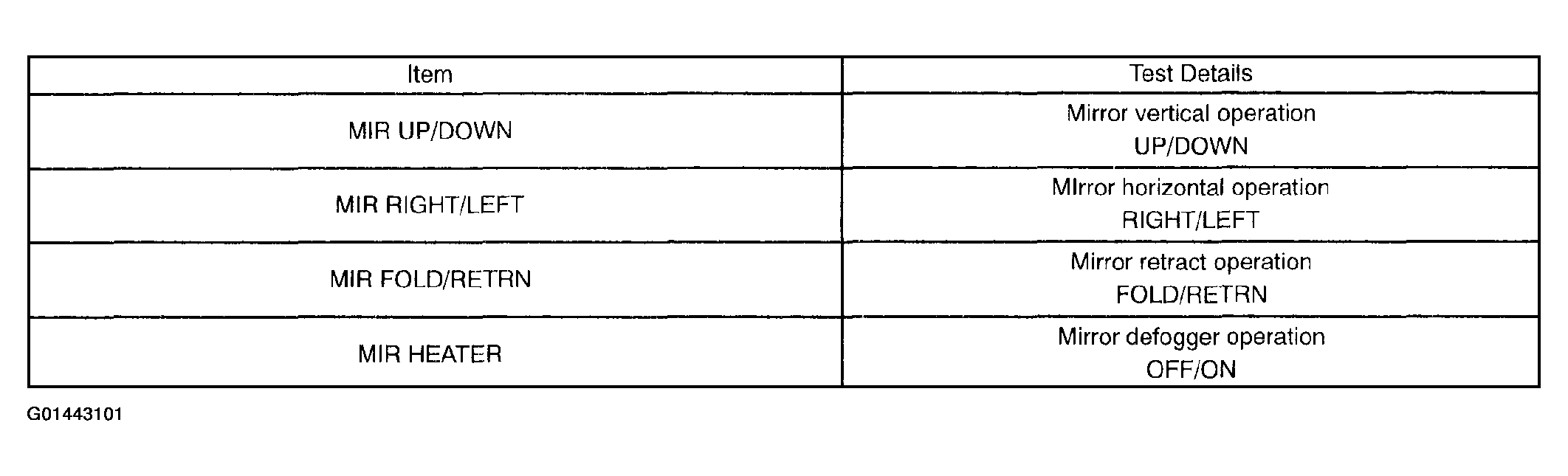

Fig 6: Driver Door ECU -: Active Test Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Front Passenger Door ECU -: Active Test Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
