System Description

  1. POWER MIRROR CONTROL SYSTEM DESCRIPTION

    this system has these functions: automatic glare-resistant electrochromatic (EC) mirror, reverse shift-linked mirror, electrical remote control type mirror, memory function, rear window defogger-linked mirror defogger, ignition switch-linked automatic electrical retractable mirror, and wiper-linked mirror defogger.

  2. FUNCTION OF MAIN COMPONENT

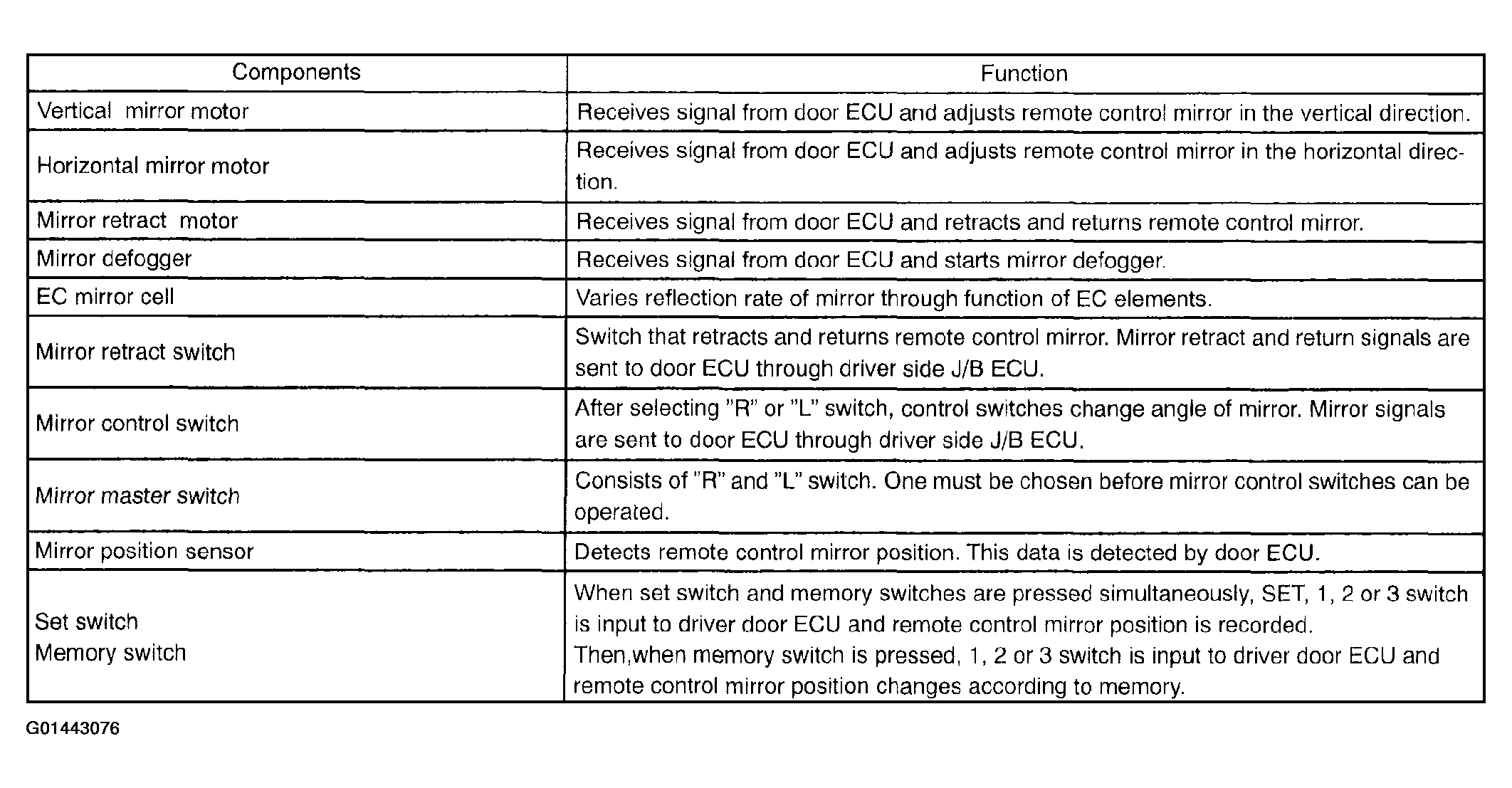

    Fig 1: Main Component Function Chart
    G01443076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. SYSTEM OPERATION

    The remote control mirror has following features:

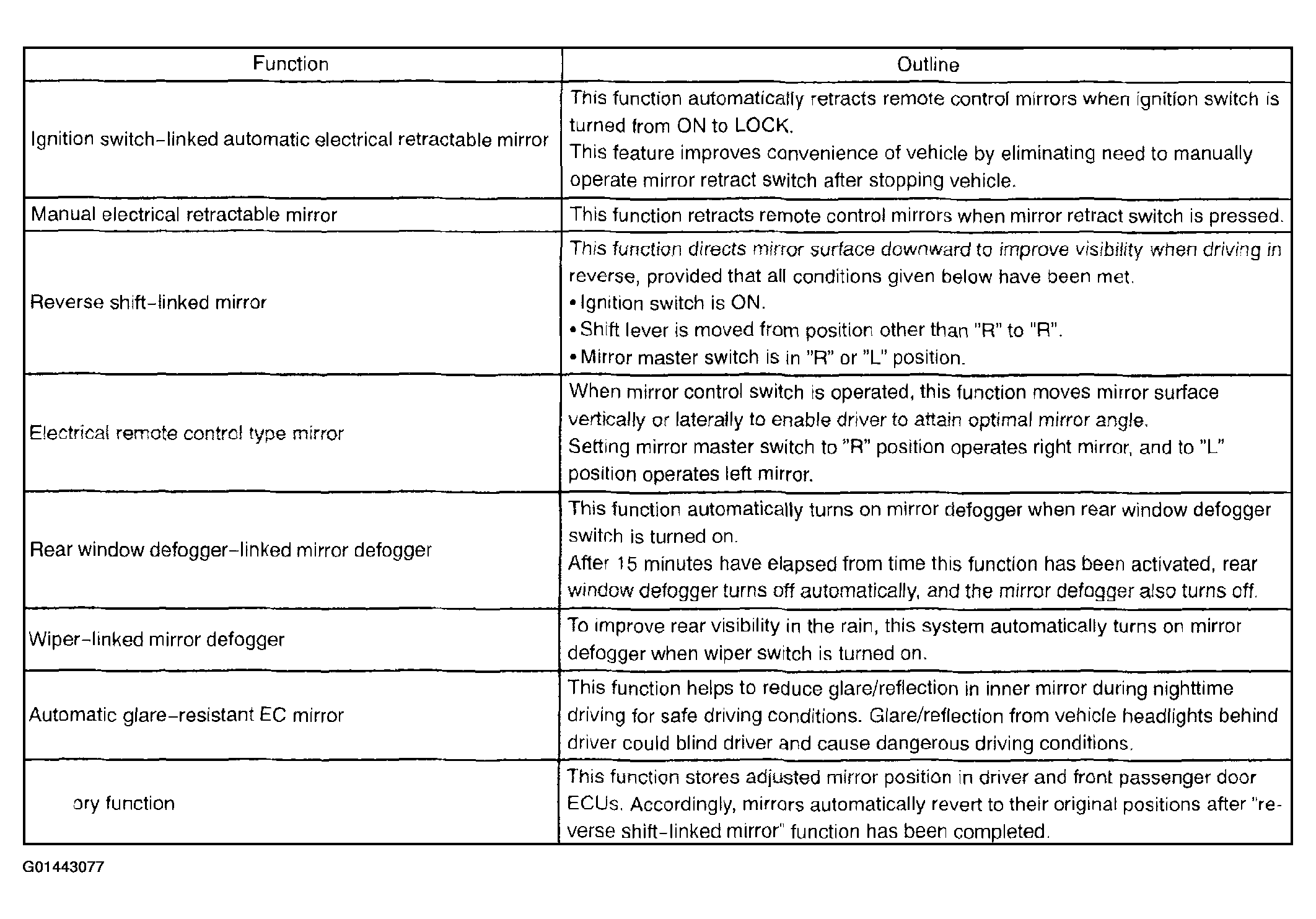

Fig 2: System Operation Chart
G01443077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
