Data List/Active Test

DATA LIST
HINT:

Using the hand-held tester DATA LIST allows switch, sensor, actuator and other item value to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to shorten labor time.
1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the engine switch ON.
3. Read the DATA LIST according to the display on the tester.
Driver door ECU: (Switch condition)

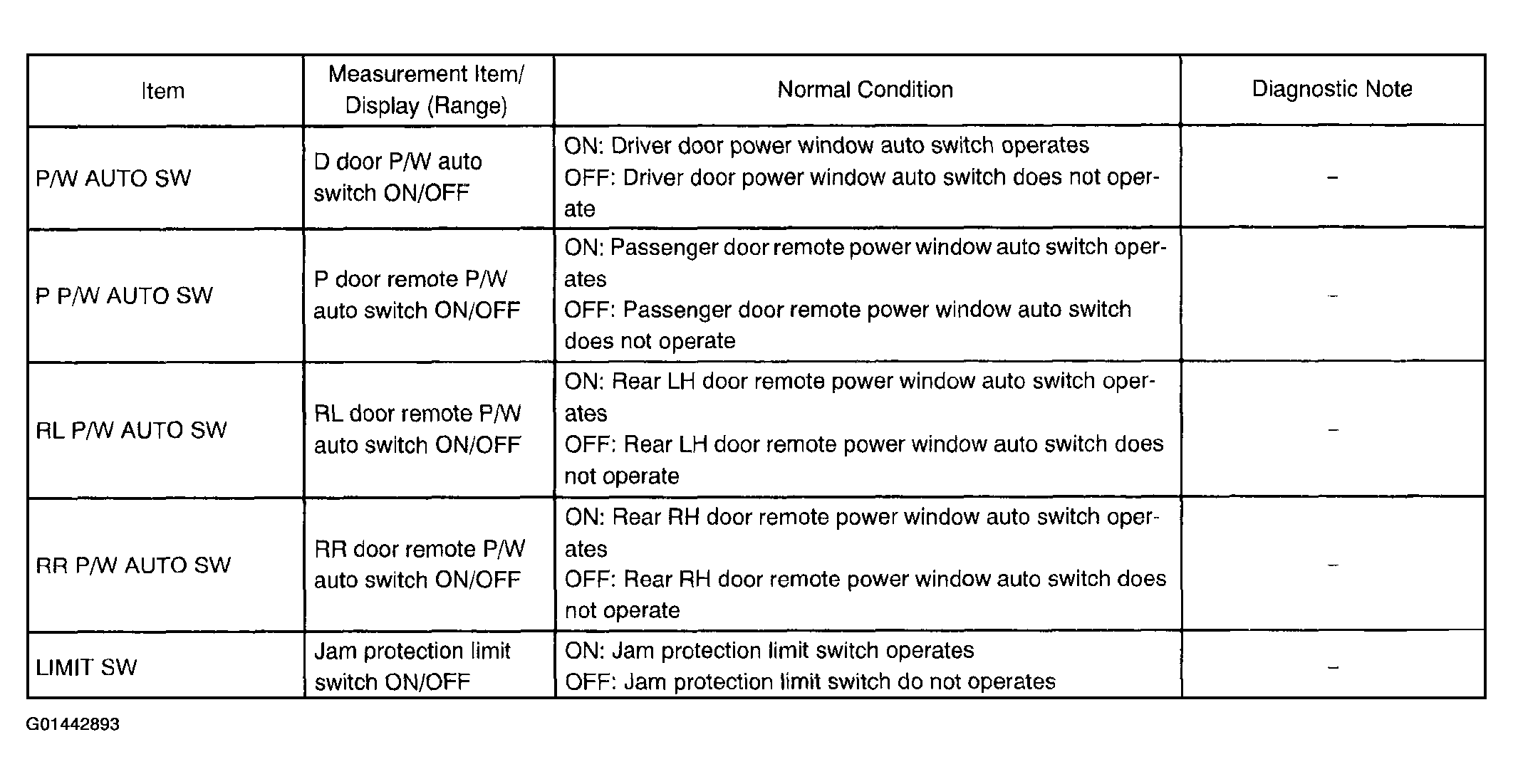

Fig 1: Driver Door ECU (Switch Condition) - Data List
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Door ECU (Passenger, Rear LH, Rear RH): (Switch condition)

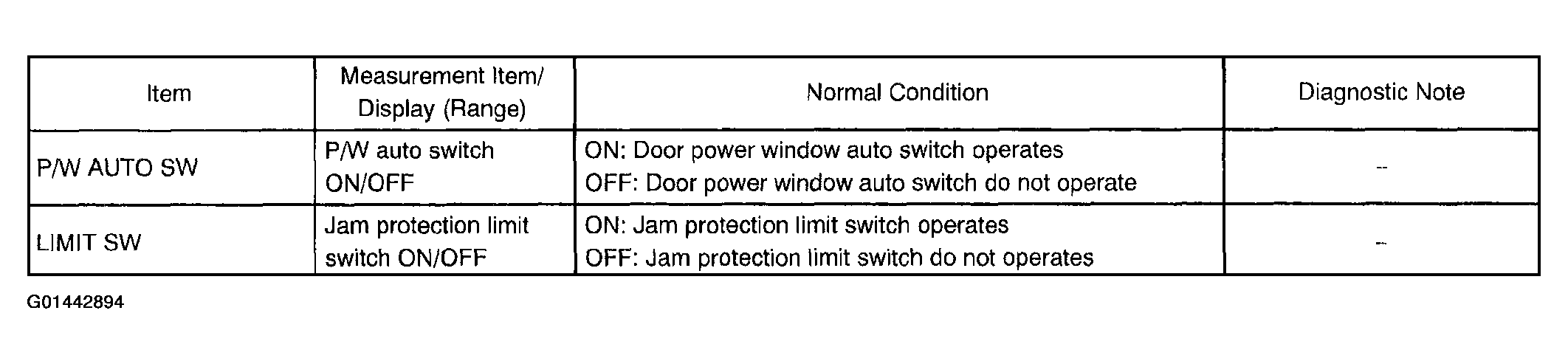

Fig 2: Door ECU (Passenger, Rear LH, Rear RH) (Switch Condition) - Data List
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Door ECU (All doors), Glass position)

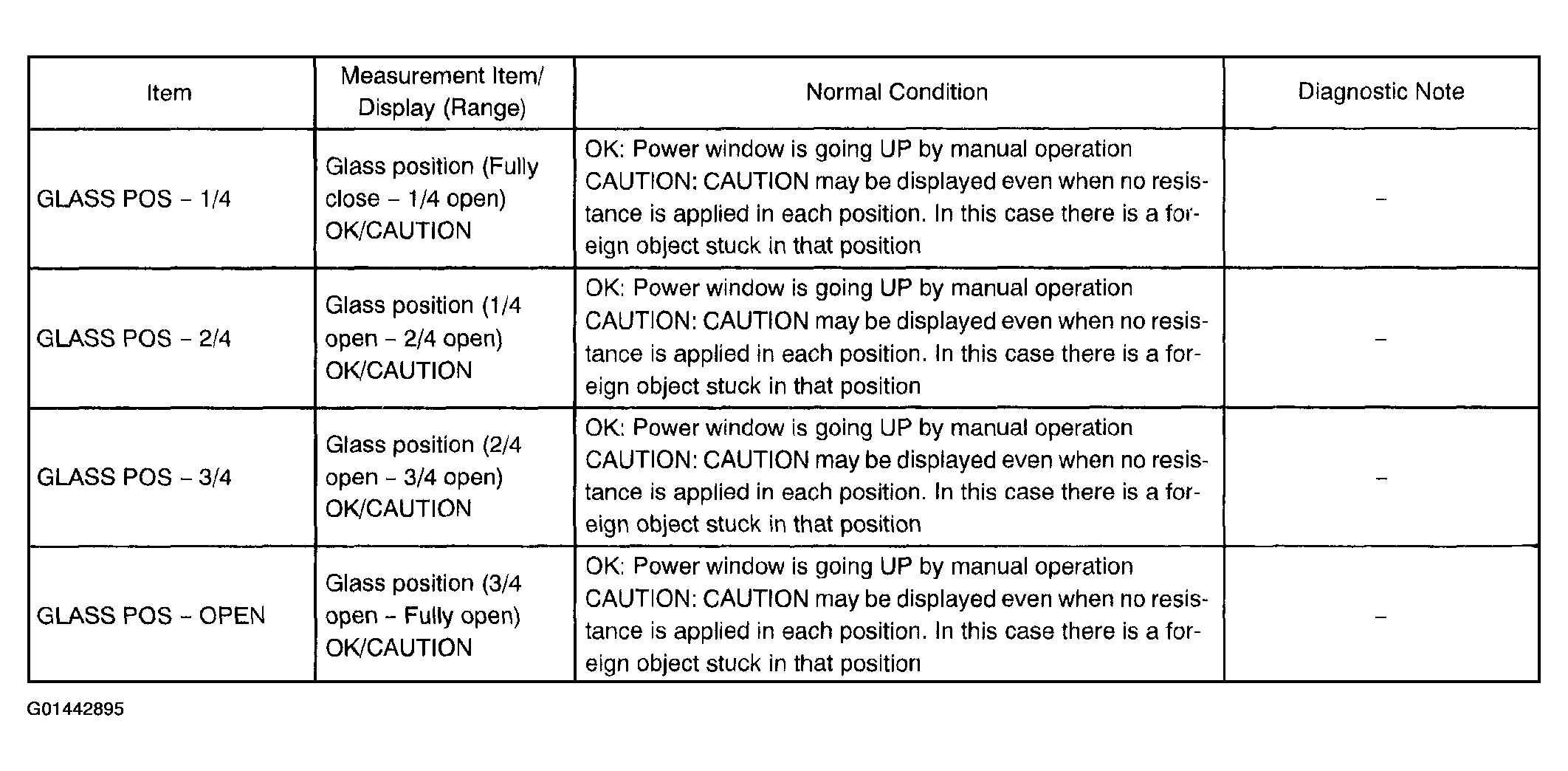

Fig 3: Door ECU (All Doors, Glass Position) - Data List
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ACTIVE TEST
NOTE: is test causes vehicle parts to move. Please watch your hands.

HINT:

Performing the hand-held tester ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to shorten labor time. The DATA LIST can be displayed during the ACTIVE TEST.
1. Connect the hand-held tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
2. Turn the ignition switch ON.
3. Performing the ACTIVE TEST according to the display on the tester.
Door ECU (All doors):

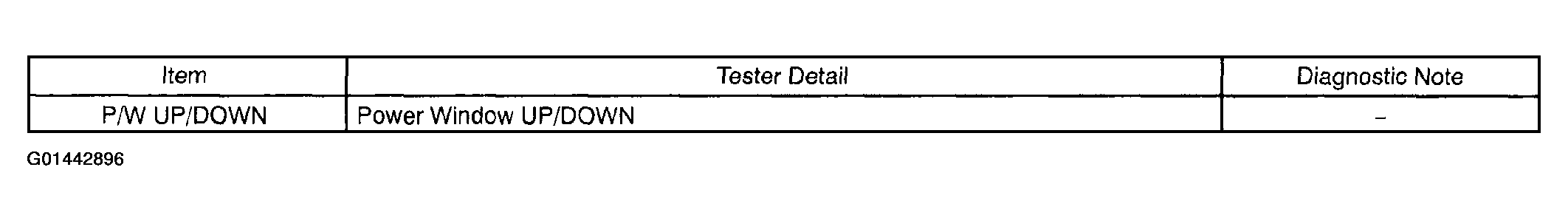

Fig 4: Door ECU (All Doors) - Active Test
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
