Diagnostic Trouble Code Chart
- DTC CHECK
If a malfunction code is displayed during the DTC check, check the suspected area listed for that code.

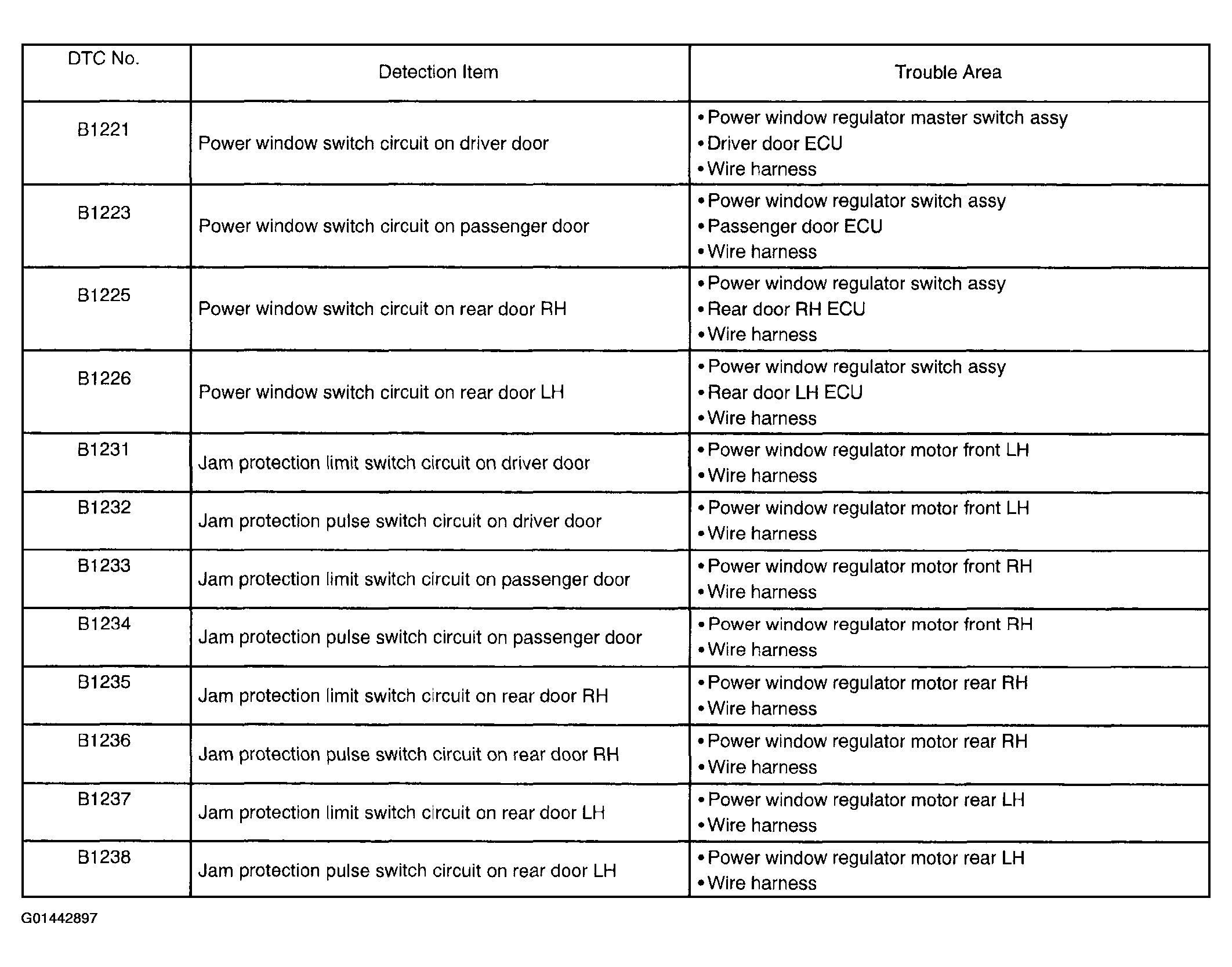

DIAGNOSTIC TROUBLE CODE CHARTDTC Description DTC B1221 POWER WINDOW SWITCH CIRCUIT ON DRIVER DOOR DTC B1223 POWER WINDOW SWITCH CIRCUIT ON PASSENGER DOOR DTC B1226 POWER WINDOW SWITCH CIRCUIT ON REAR DOOR LH DTC B1225 POWER WINDOW SWITCH CIRCUIT ON REAR DOOR RH DTC B1231, B1232 JAM PROTECTION LIMIT SWITCH CIRCUIT ON DRIVER SIDE DOOR, JAM PROTECTION PULSE SENSOR CIRCUIT ON DRIVER SIDE DOOR DTC B1233, B1234 JAM PROTECTION LIMIT SWITCH CIRCUIT ON PASSENGER SIDE DOOR, JAM PROTECTION PULSE SENSOR CIRCUIT ON PASSENGER SIDE DOOR DTC B1237, B1238 JAM PROTECTION LIMIT SWITCH CIRCUIT ON REAR DOOR LH, JAM PROTECTION PULSE SENSOR CIRCUIT ON REAR DOOR LH DTC B1235, B1236 JAM PROTECTION LIMIT SWITCH CIRCUIT ON REAR DOOR RH, JAM PROTECTION PULSE SENSOR CIRCUIT ON REAR DOOR RH
