Driver Door Ecu Power Source Circuit: Wiring Diagram

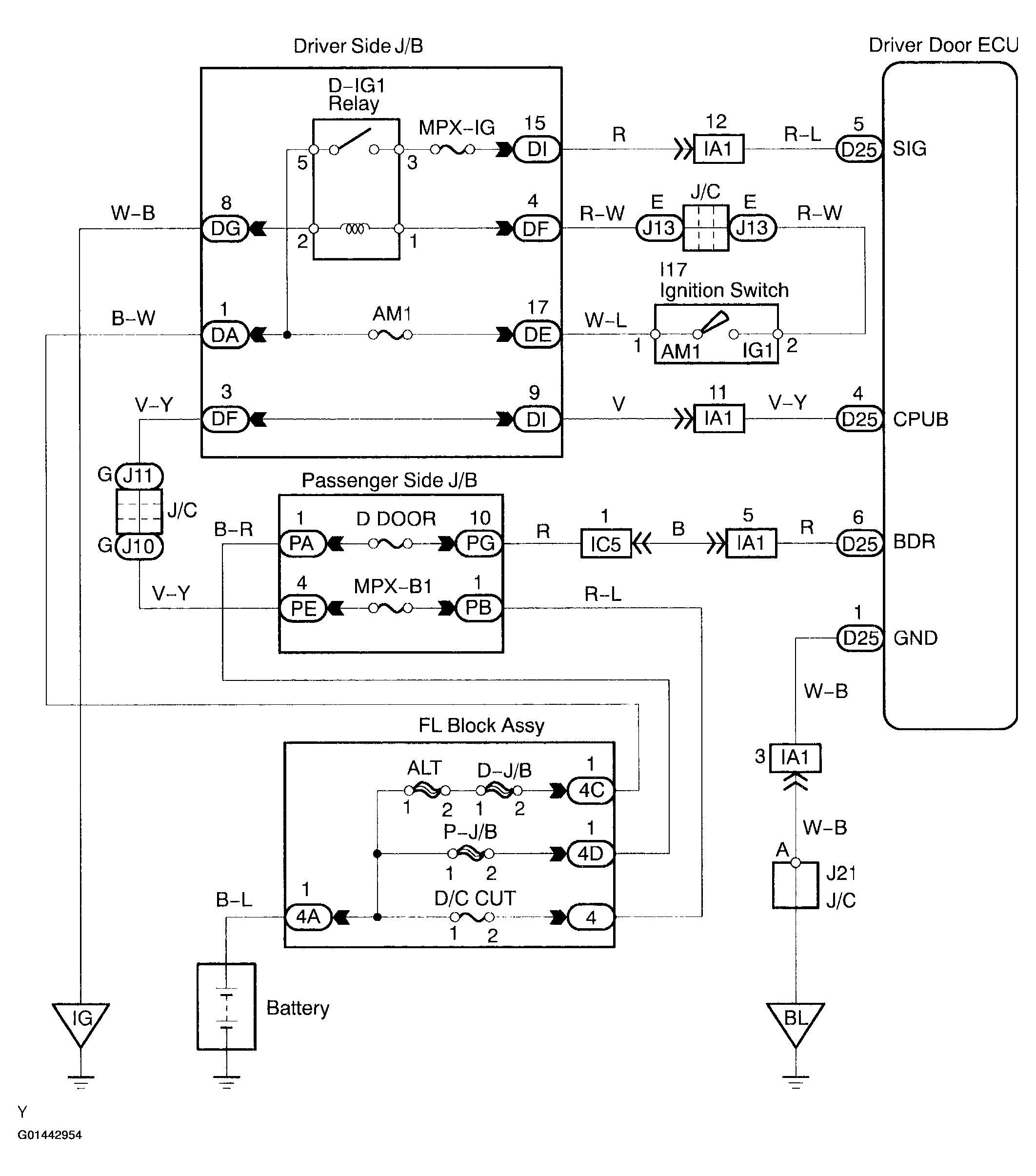

Fig 1: Driver Door ECU Power Source Circuit - Wiring Diagram
G01442954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
