Power Window Control System - Diagnosis: Location

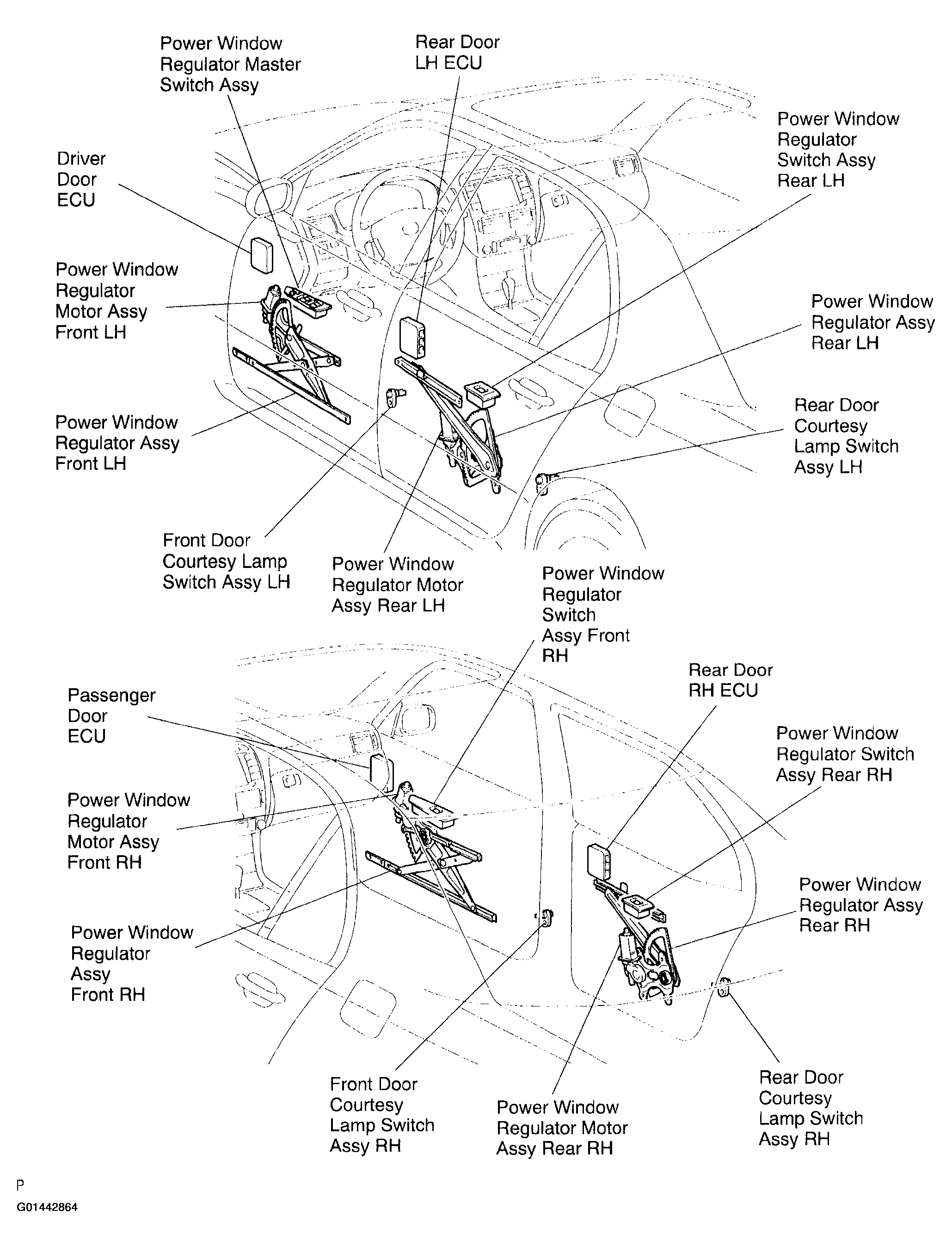

Fig 1: Identifying Power Window Control System Components Location (1 Of 2)
G01442864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

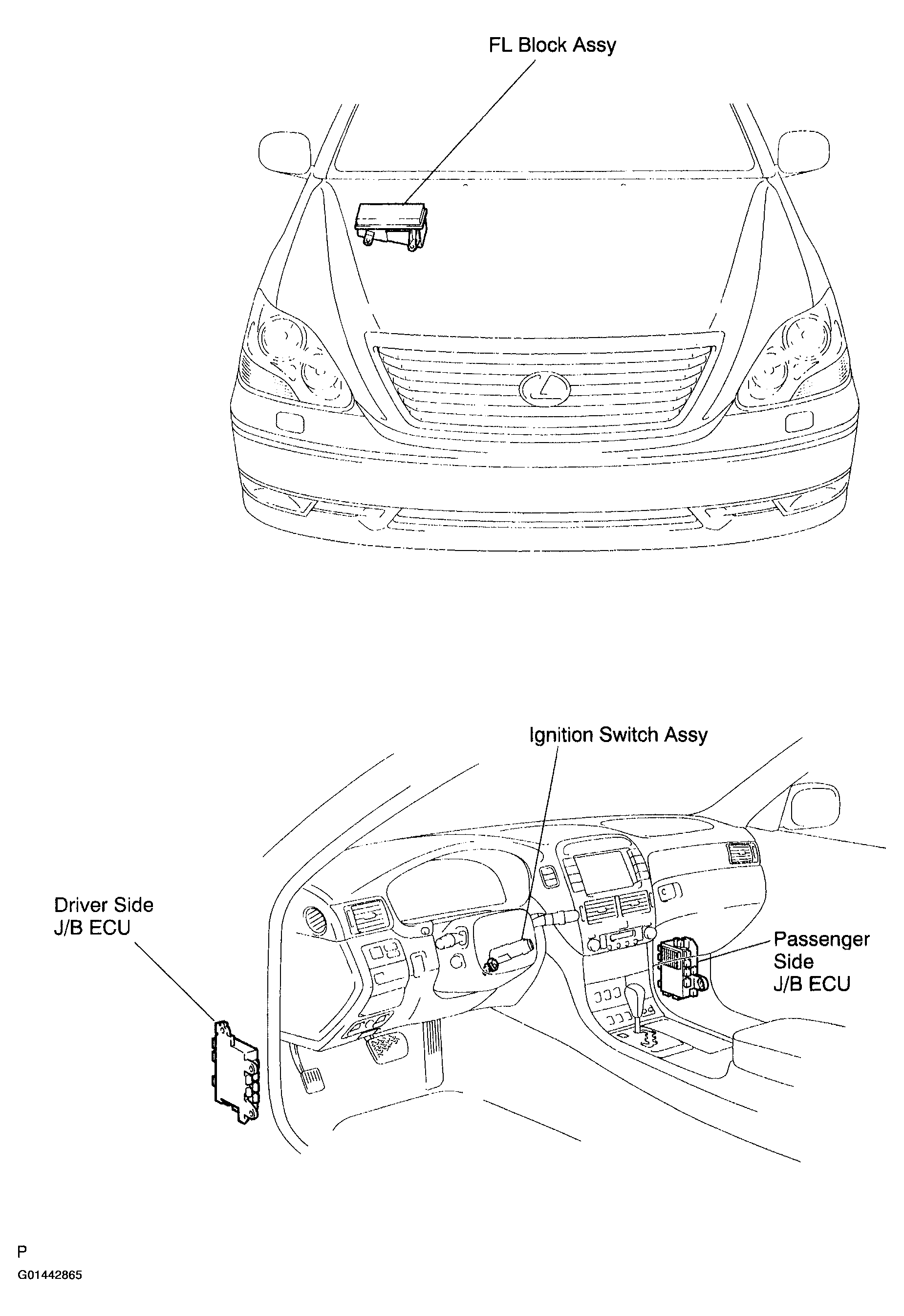

Fig 2: Identifying Power Window Control System Components Location (2 Of 2)
G01442865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
