On-Vehicle Inspection

1. Check that the passenger side power window and rear power windows' operation are disabled when the window lock switch of the power window master switch is pressed.
2. Check that the passenger side power window and rear power windows can be operated when the window lock switch is pressed again.

Fig 1: Checking Window Lock Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the driver side power window operates as follows:

   OK: Go to next step.

   Fig 2: Manual Up/Down Function Operation Chart (Driver Side Power Window)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the power windows except the driver side power window operate as follows:

OK: Go to next step.

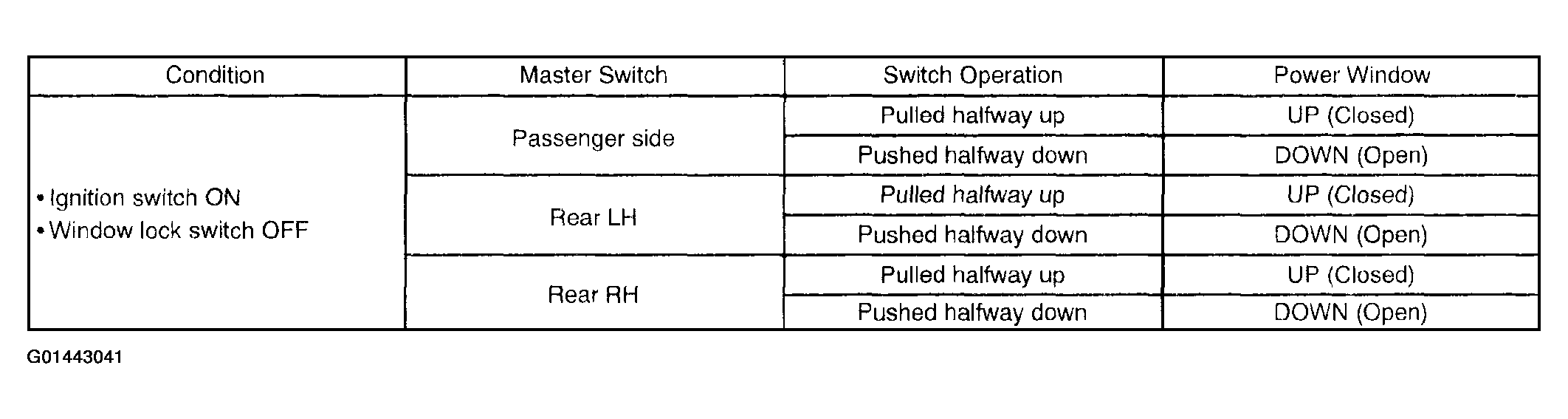

Fig 3: Manual Up/Down Function Operation Chart (Except Driver Side Power Window)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the driver side power window operates as follows:

   OK: Go to next step.

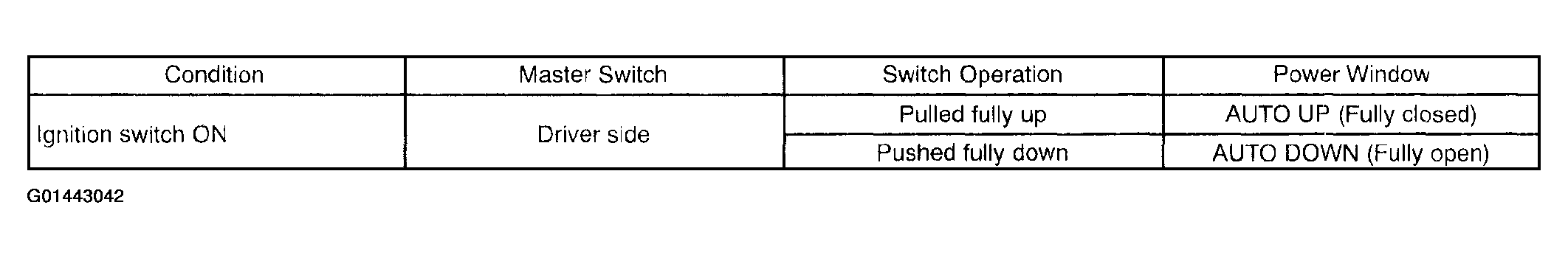

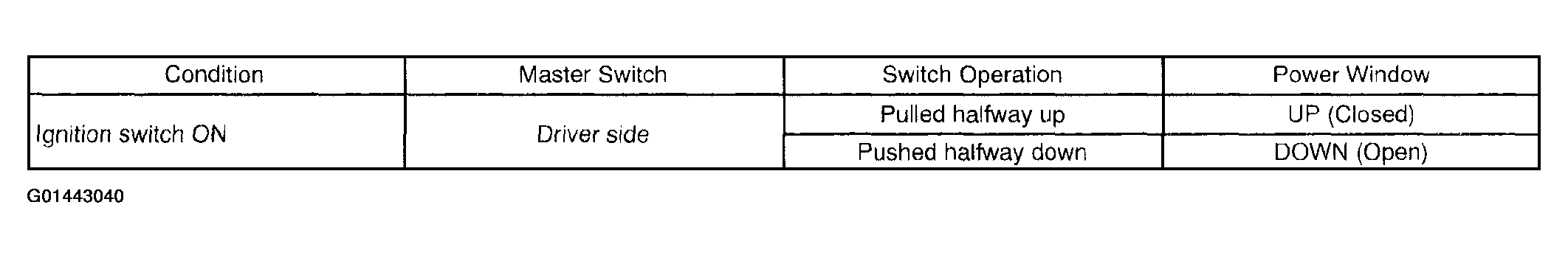

   Fig 4: Auto Up/Down Function Operation Chart (Driver Side Power Window)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the power windows except the driver side power window operate as follows:

   OK: Go to next step.

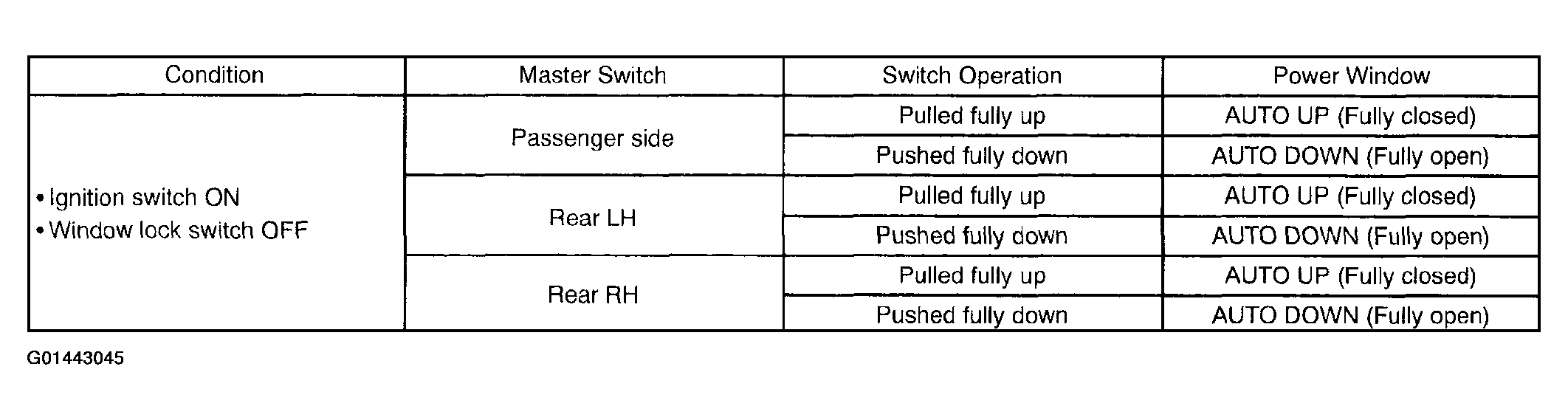

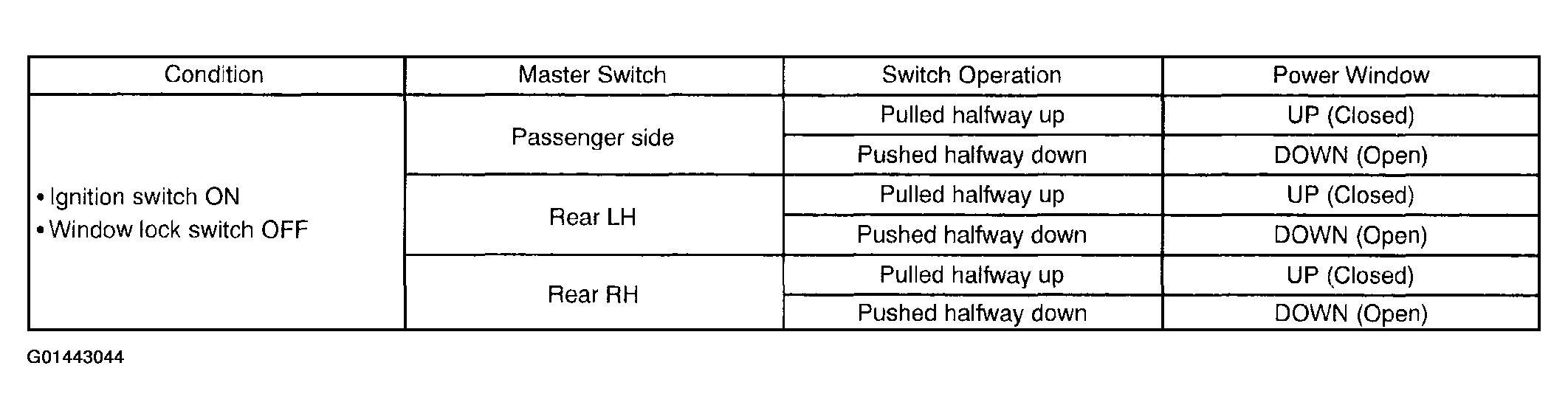

   Fig 5: Auto Up/Down Function Operation Chart (Except Driver Side Power Window)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the power windows except the driver side power window operate as follows:

OK: Go to next step.

Fig 6: Remote Manual Up/Down Function Operation Chart (Except Driver Side Power Window)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the power windows except the driver side power window operate as follows:

OK: Go to next step.

Fig 7: Remote Auto Up/Down Function Operation Chart (Except Driver Side Power Window)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The jam protection function prevents any part of your body from getting caught by accident between the door frame and the door glass during power window operation.

1. Check that the door glass goes down by approximately 50 mm (1.97 in.) right when something gets caught between the door frame and door glass during power window operation. However, when the opening between the door frame and the door glass is less than 200 mm (7.87 in.), the door glass continues to go down and does not stop until an opening of 200 mm (7.87 in.) is achieved.

Operative conditions:

• AUTO UP (ALL DOORS)
• AUTO UP/MANUAL UP function after the ignition switch is turned of (ALL DOORS)
• MANUAL UP function using the driver side door lock key cylinder

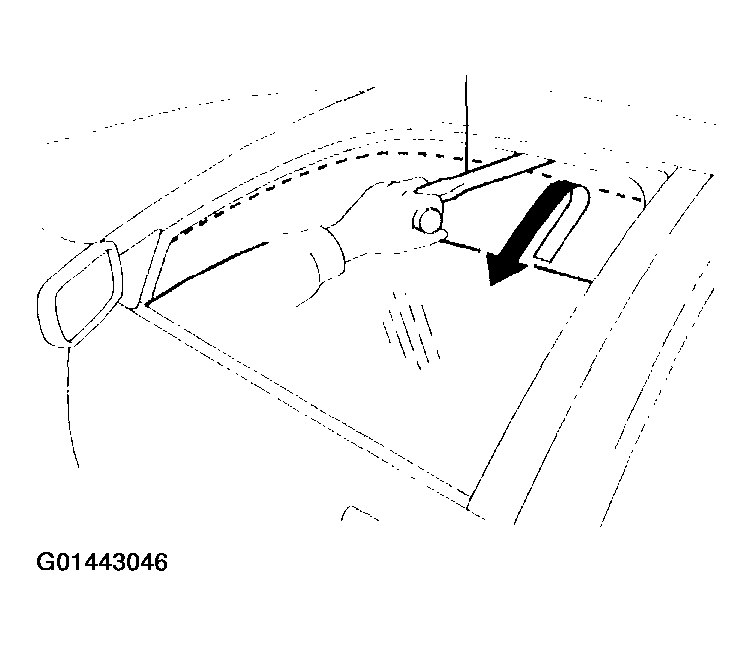

Fig 8: Checking Jam Protection Function

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that all power windows and sliding roof (standard type only) operate as follows, when the key is inserted into the driver side door lock key cylinder.

OK: Go to next step.

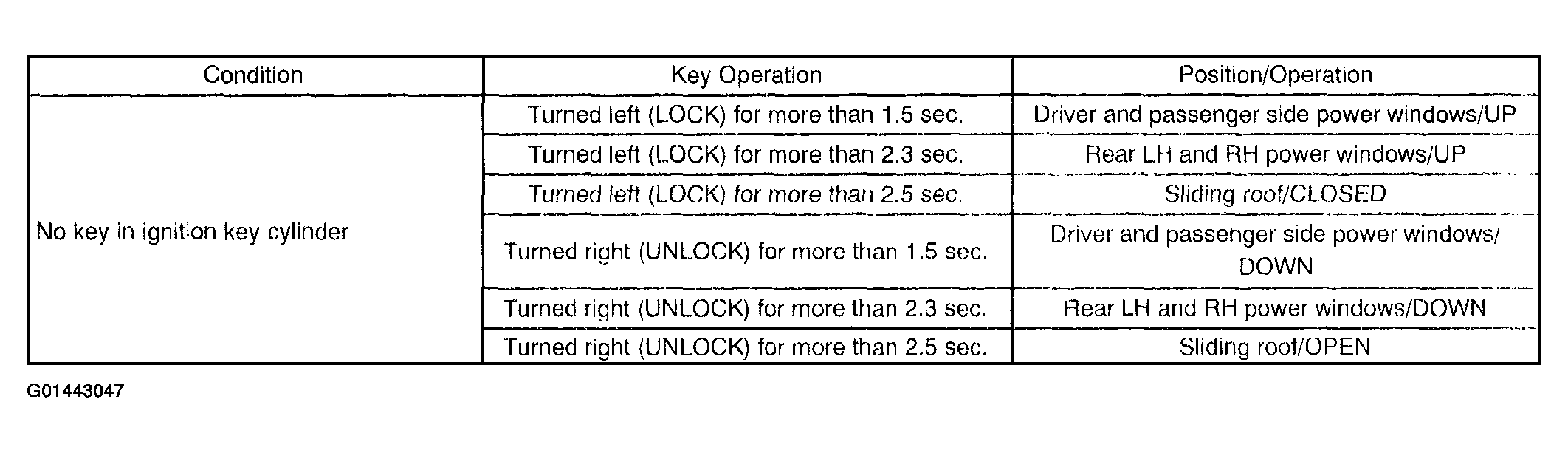

Fig 9: Manual Up/Down Function Using Driver Side Door Lock Key Cylinder Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that all power windows and sliding roof (standard type only) operate as follows when operating the transmitter.

OK: Go to next step.

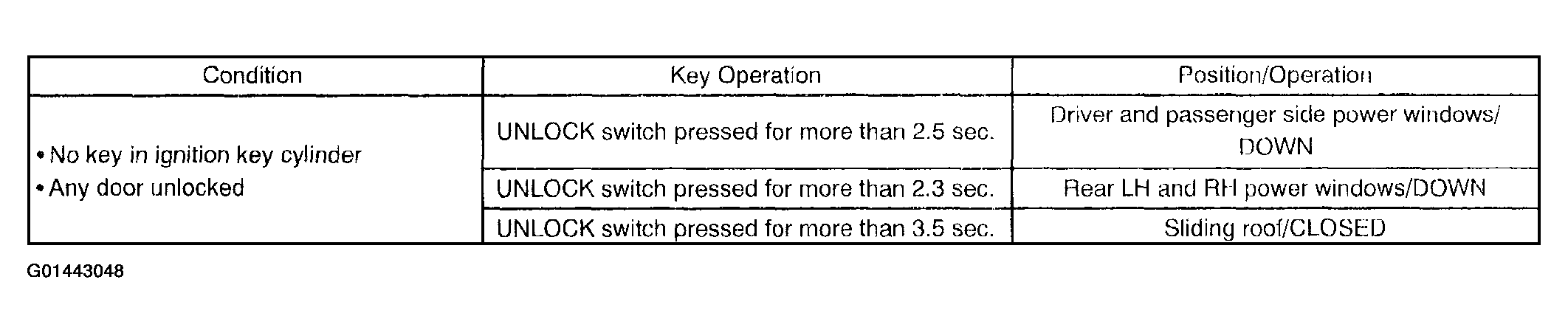

Fig 10: Manual Down Function Using Transmitter Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

For a sign for starting operation, the wireless door lock buzzer sounds once (answer-back).

When both of the following condition are fulfilled, check that the power windows can be operated even after the ignition switch is turned OFF.

1. Within 45 seconds after the ignition switch is turned OFF.
2. The front doors are closed.

HINT:

If there is a malfunction in the power window system, some of the power window functions will be disabled.

Driver side power window:

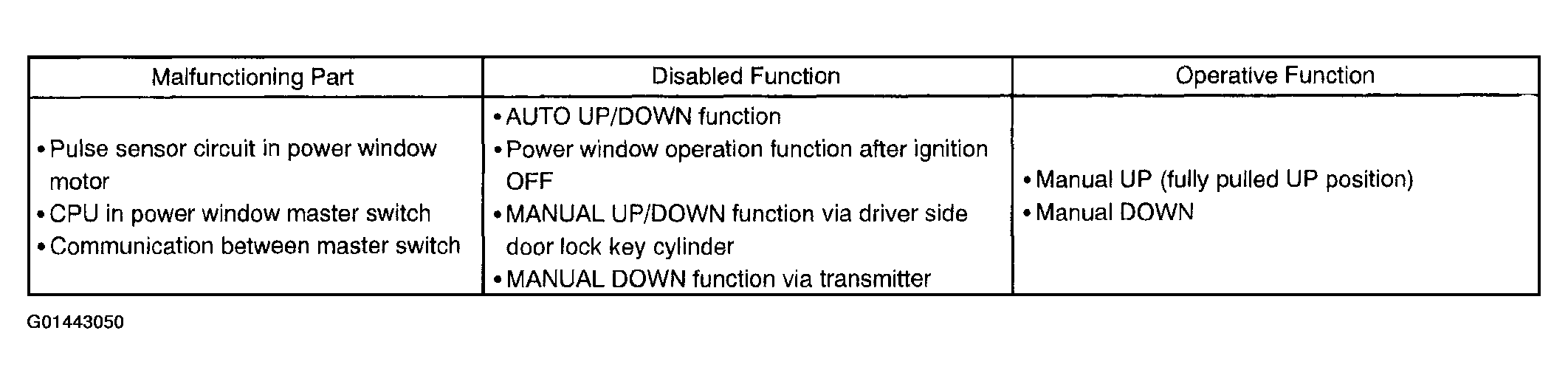

Fig 11: Power Window Fail-Safe Function Chart (Driver Side Power Window)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Power windows except driver side power window:

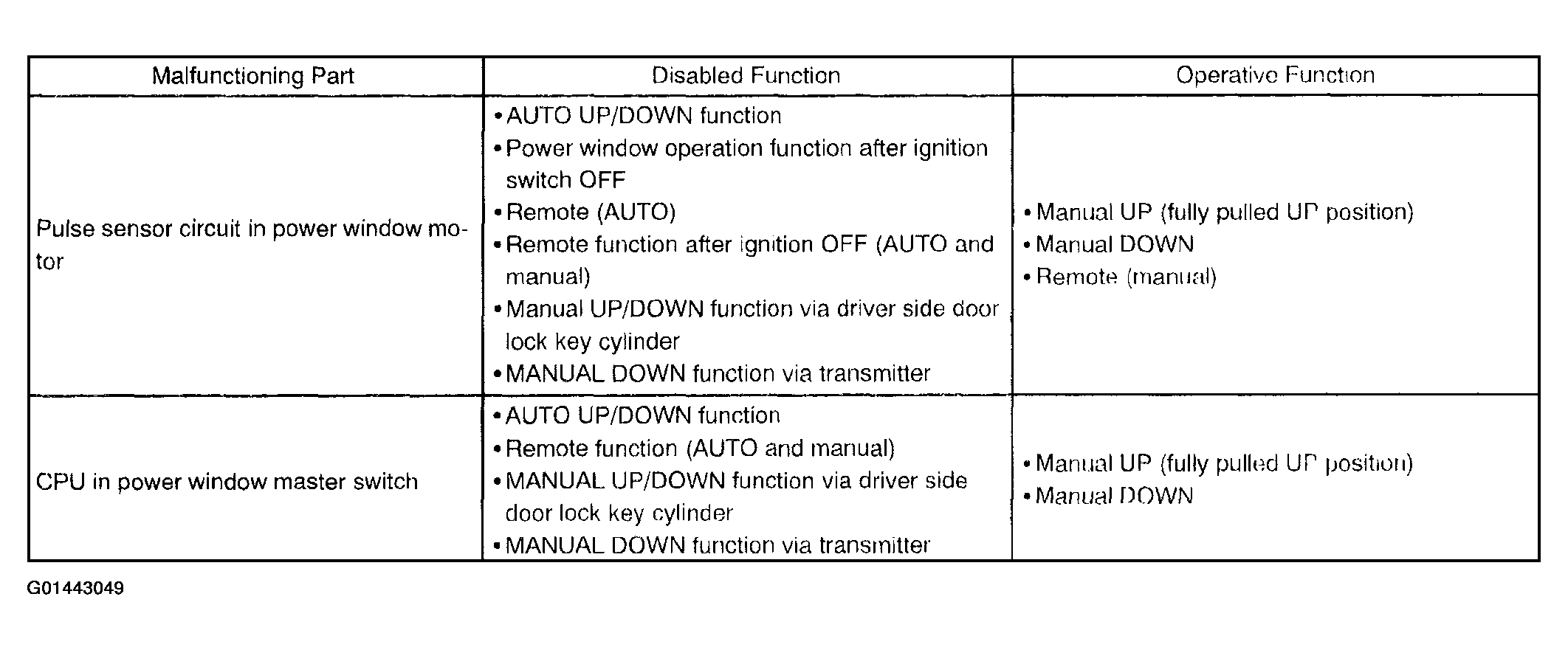

Fig 12: Power Window Fail-Safe Function Chart (Except Driver Side Power Window)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
