Inspection Procedure

1. Operate the passenger door power window. Check if any DTCs are output.

Result:

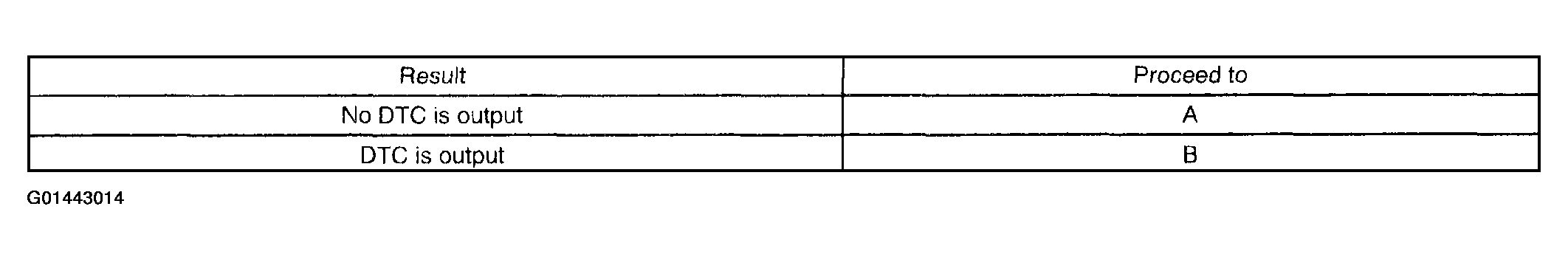

Fig 1: Result Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

B: PROCEED TO DTC CHART (See  DIAGNOSTIC TROUBLE CODE CHART  )

A: Go to next step.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON and press the hand-held tester main switch ON.
3. Select the item below in the ACTIVE TEST and then check that the power window operates.

Passenger door ECU:

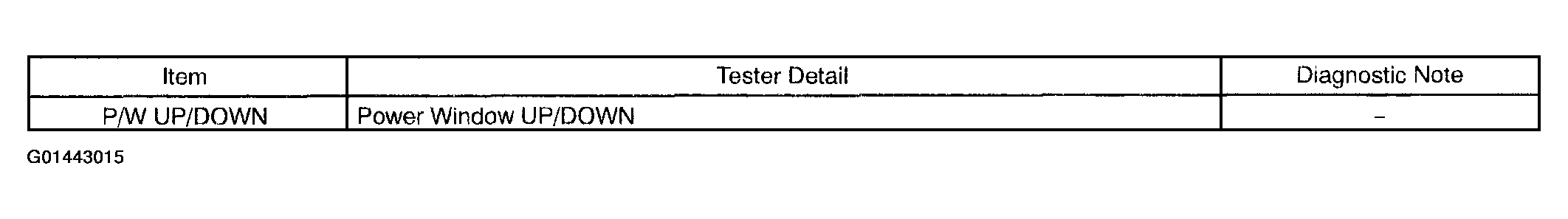

Fig 2: Passenger Door ECU - Active Test Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: "ON"(power window is operating) appears on the screen.

NG: Go to step 3

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )

1. Disconnect the P15 motor connector.
2. Disconnect the F17 ECU connector.
3. Measure the resistance of the wire harness side connectors.

Standard:

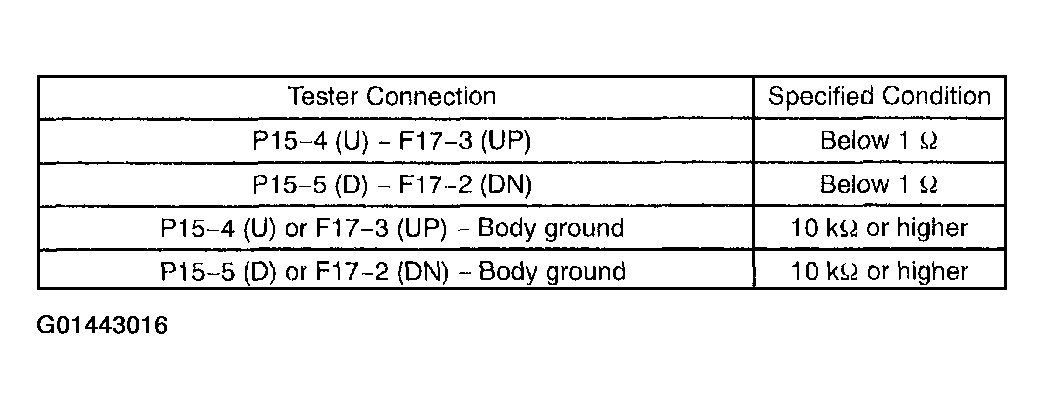

Fig 3: Terminals Resistance Reference Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

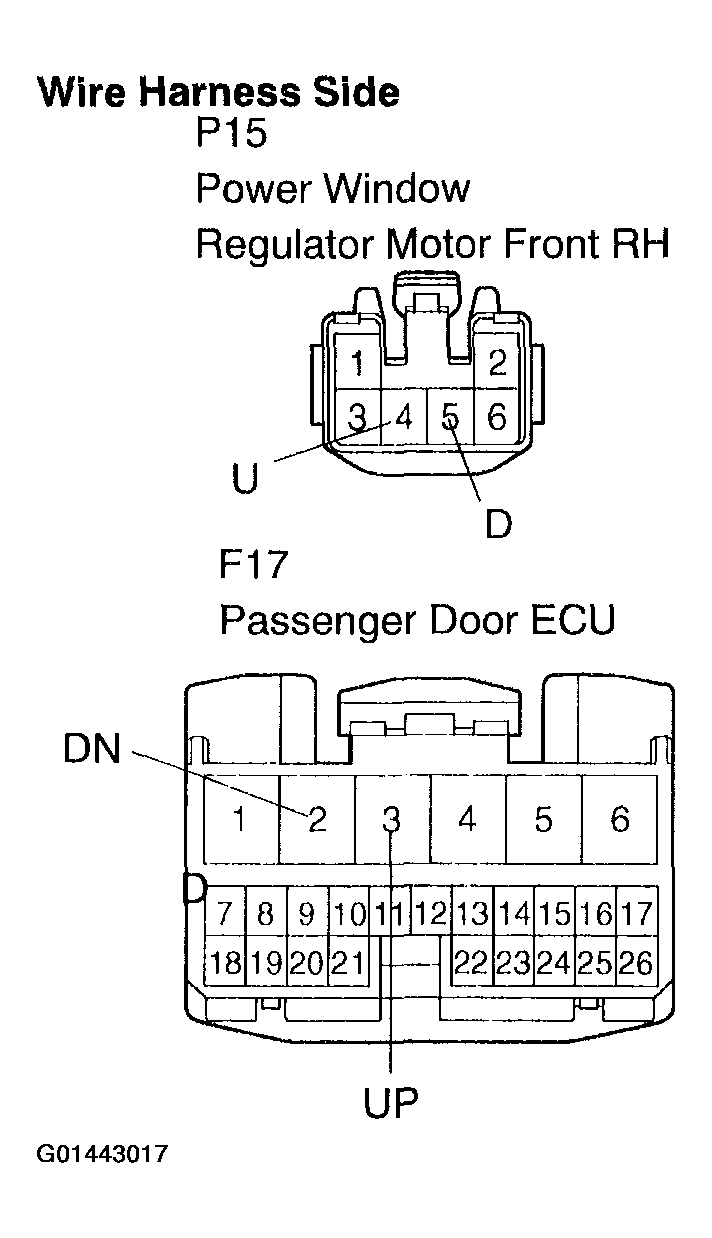

Fig 4: Checking Wire Harness (Power Window Regulator Motor Assy Front RH -Passenger Door ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step.

1. Remove the motor (see OVERHAUL ).
2. Apply battery voltage to the motor connector according to the figure Fig 5 below.
3. Check that the motor rotates smoothly.

OK: Go to next step.

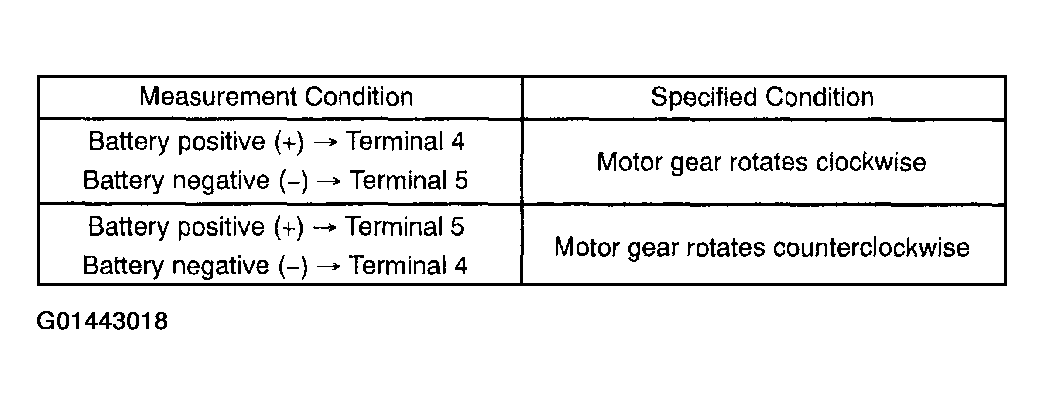

Fig 5: Measurement Condition Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

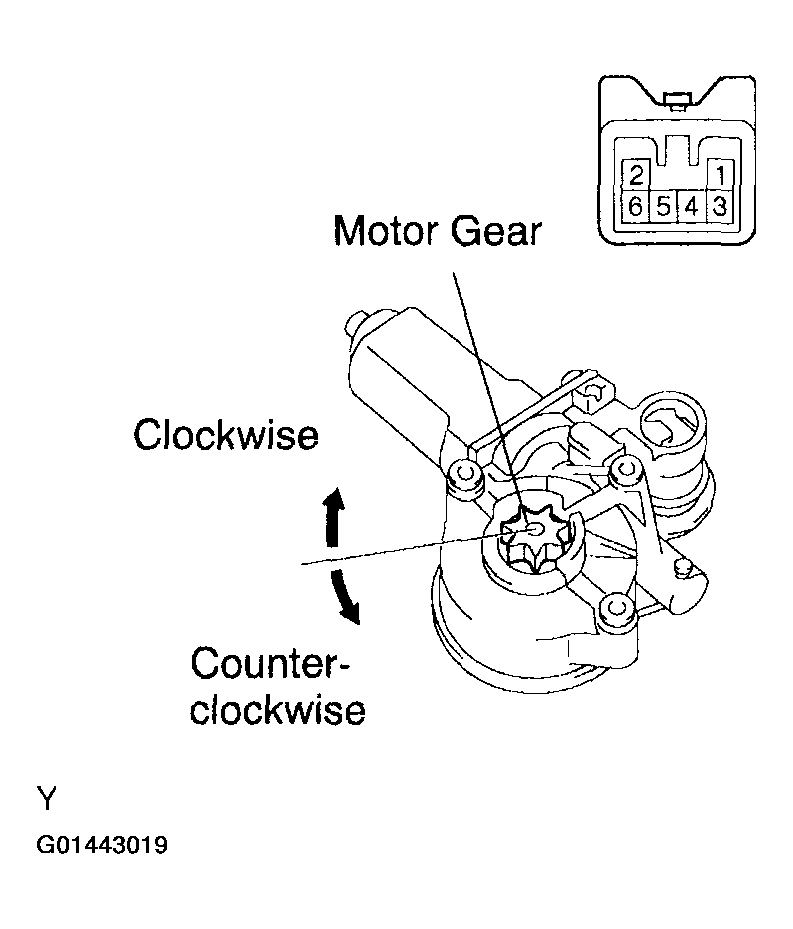

Fig 6: Inspecting Power Window Regulator Motor Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSY

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )
