Inspection Procedure

1. Operate the power window regulator switch on rear door RH. Check if any DTCs are output.

Result:

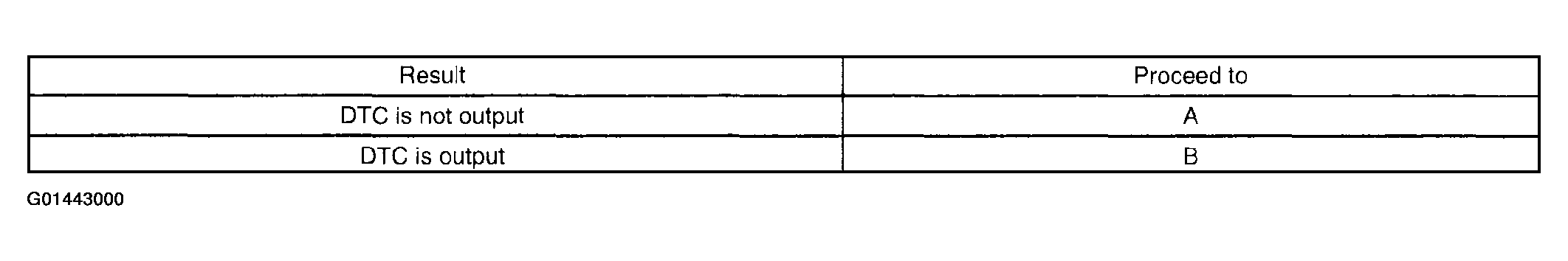

Fig 1: Result Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

B: PROCEED TO DTC CHART (See  DIAGNOSTIC TROUBLE CODE CHART  )

A: Go to next step.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON and press the hand-held tester main switch ON.
3. Select the items below in the DATA LIST, and read the displays on the hand-held tester.

Rear door RH ECU:

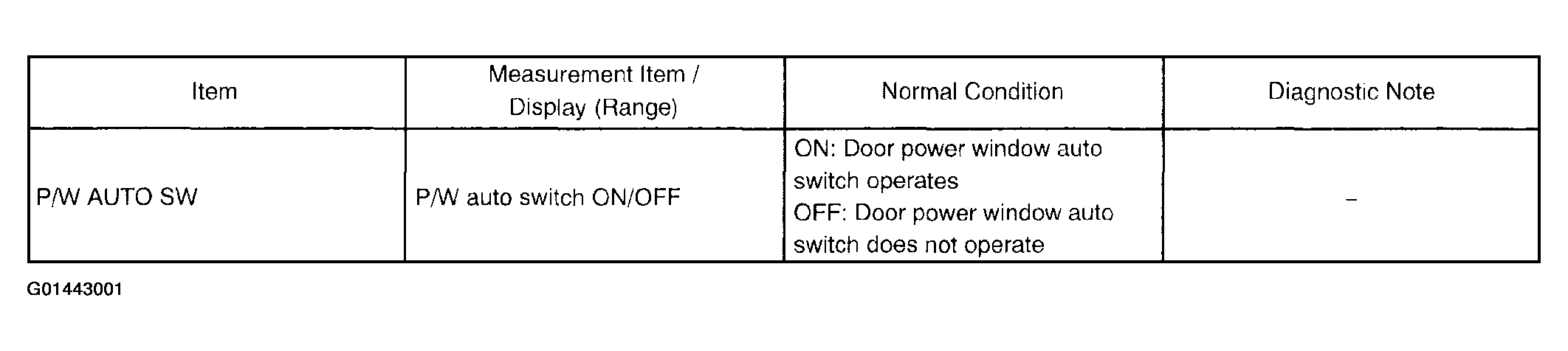

Fig 2: Rear Door RH ECU - Data List

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: "ON"(switch is operated) appears on the screen.

NG: Go to step 3

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )

1. Remove the regulator switch.
2. Disconnect the switch connector.
3. Measure the resistance between the terminals of the wire harness side connector.

Standard:

Regulator switch

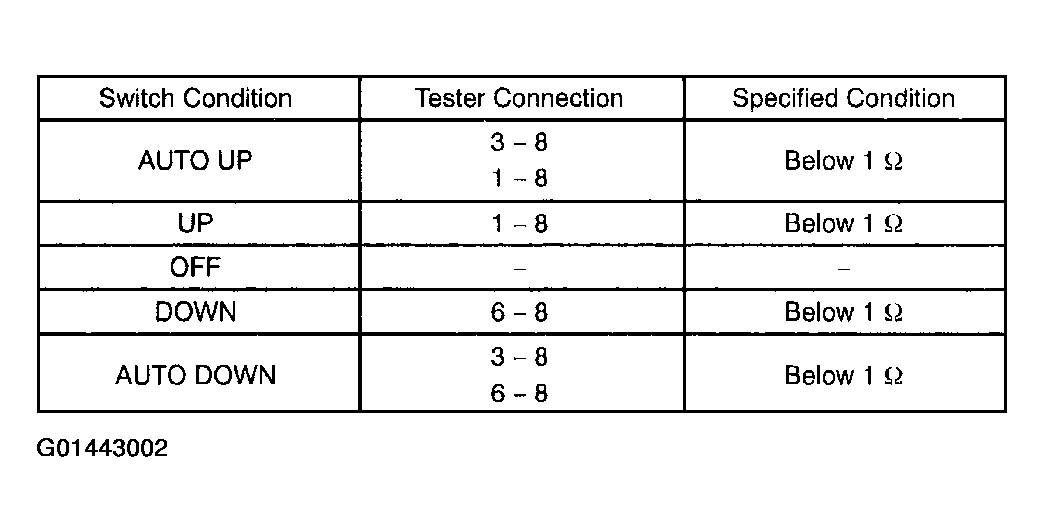

Fig 3: Terminals Resistance Reference Chart (Regulator Switch)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

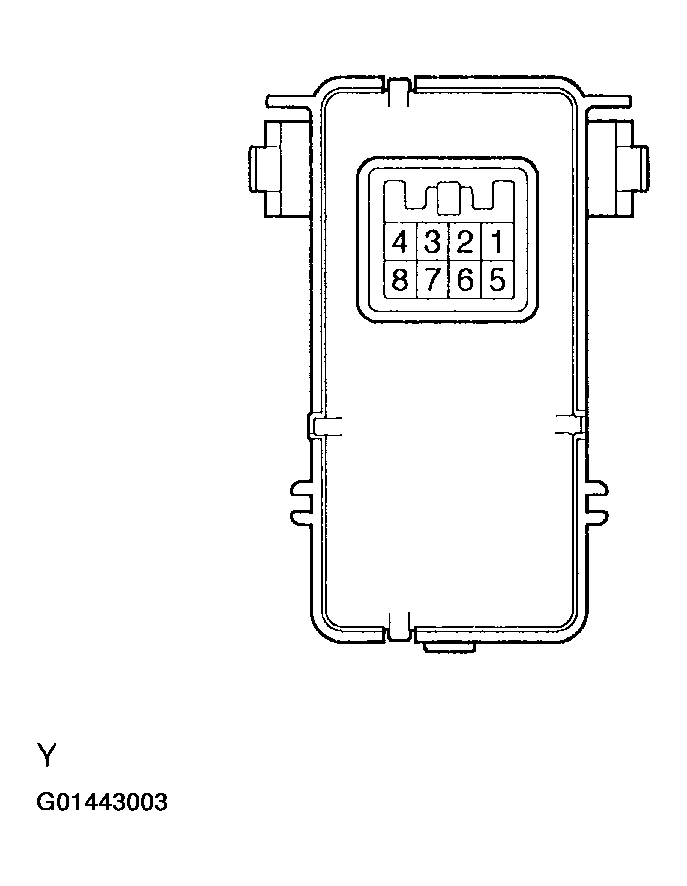

Fig 4: Inspecting Power Window Regulator Switch Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSY REAR RH

OK: Go to next step.

1. Disconnect the P12 switch connector.
2. Disconnect the R15 ECU connector.
3. Measure the resistance of the wire harness side connectors.

Standard:

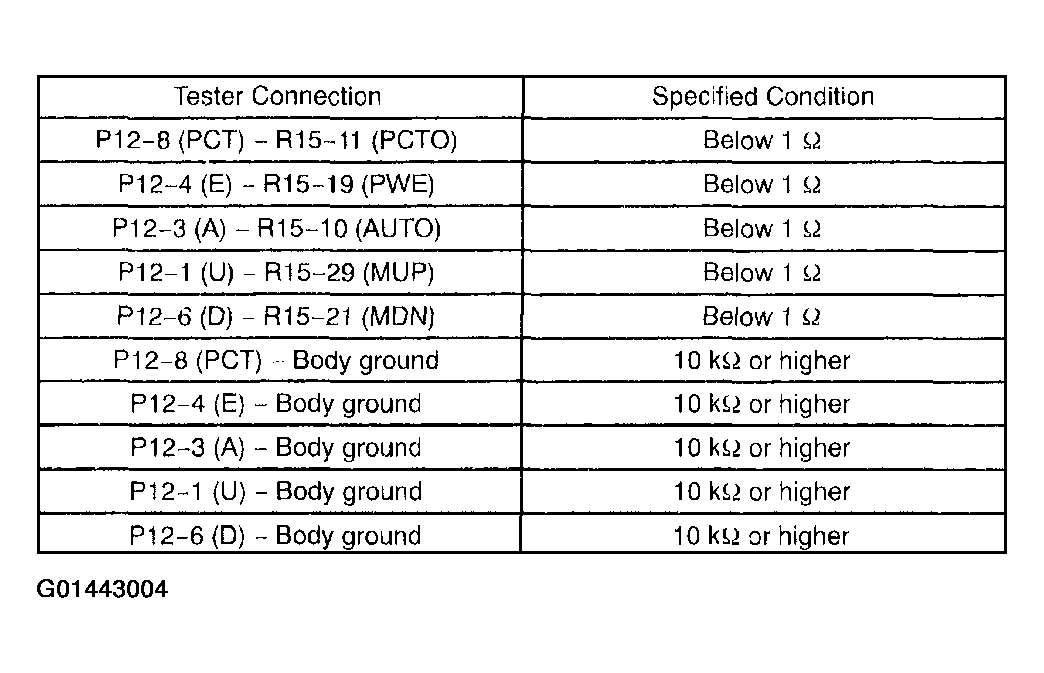

Fig 5: Terminals Resistance Reference Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

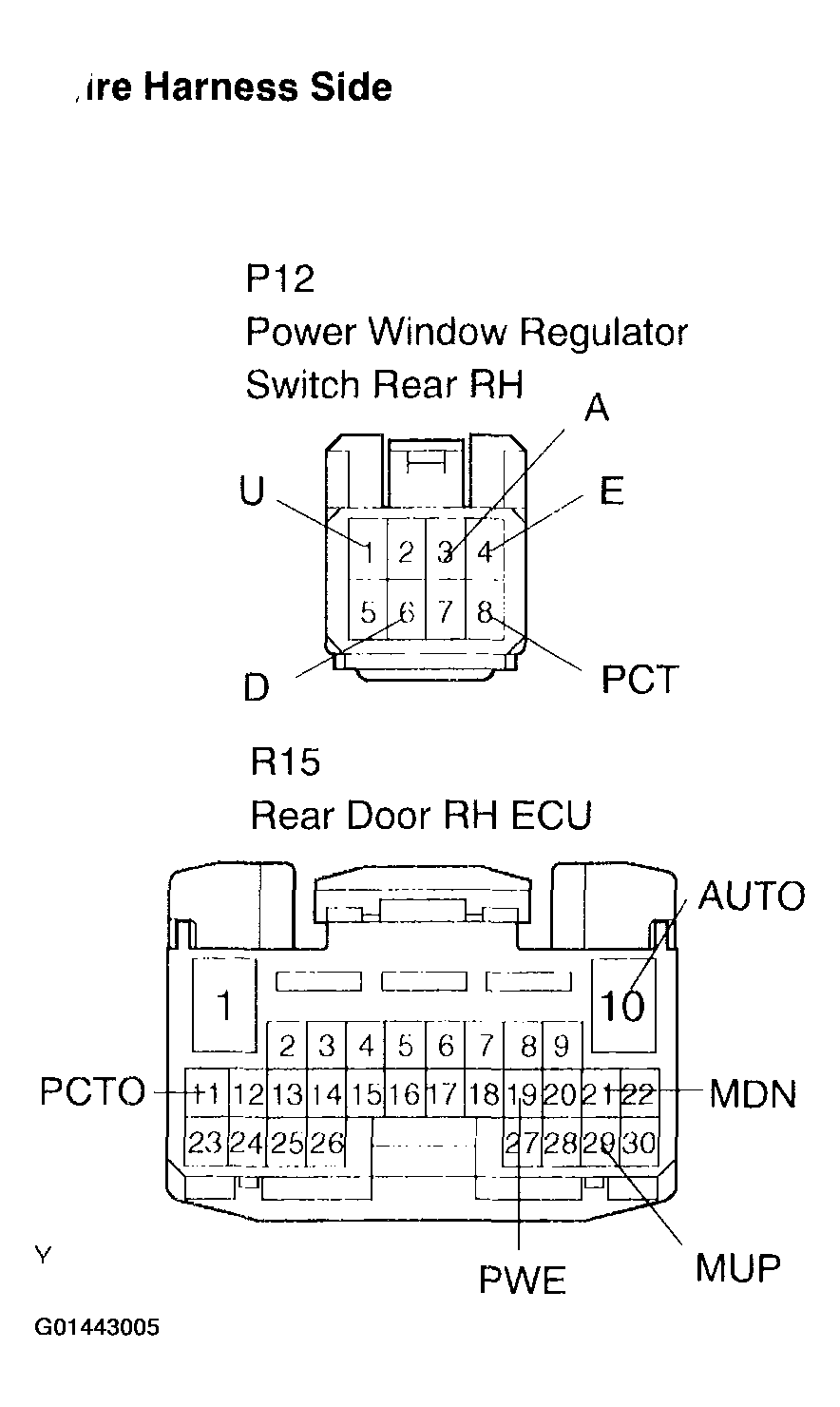

Fig 6: Checking Wire Harness (Power Window Regulator Switch Assy Rear RH -Rear Door RH ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )
