Inspection Procedure

INSPECT FUSE (RR DOOR LH, MPX-B1, MPX-IG, AM1)
1. Remove the RR DOOR LH and MPX-B1 fuses from the passenger side J/B.
2. Remove the MPX-IG and AM1 fuses from the driver side J/B
3. Measure the resistance.
Standard: Below 1 Ω

NG: REPLACE FUSE

OK: Go to next step.
INSPECT RELAY (D-IG1)
1. Remove the D-IG1 relay from the driver side J/B.
2. Measure the resistance.
Standard:

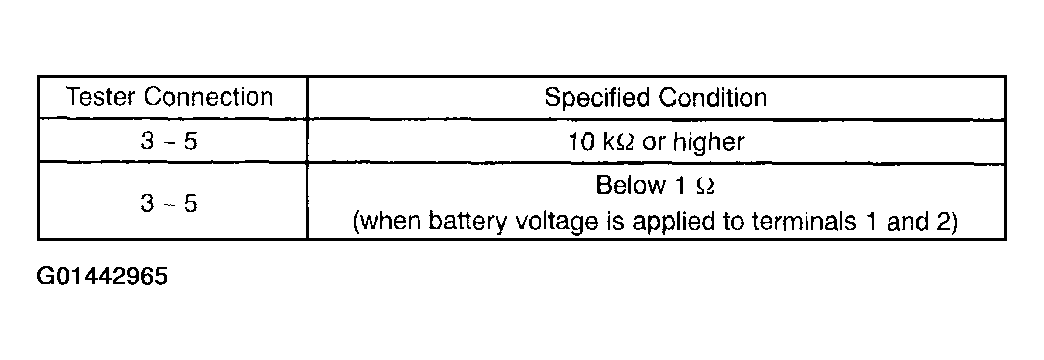

Fig 1: Terminals Resistance Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

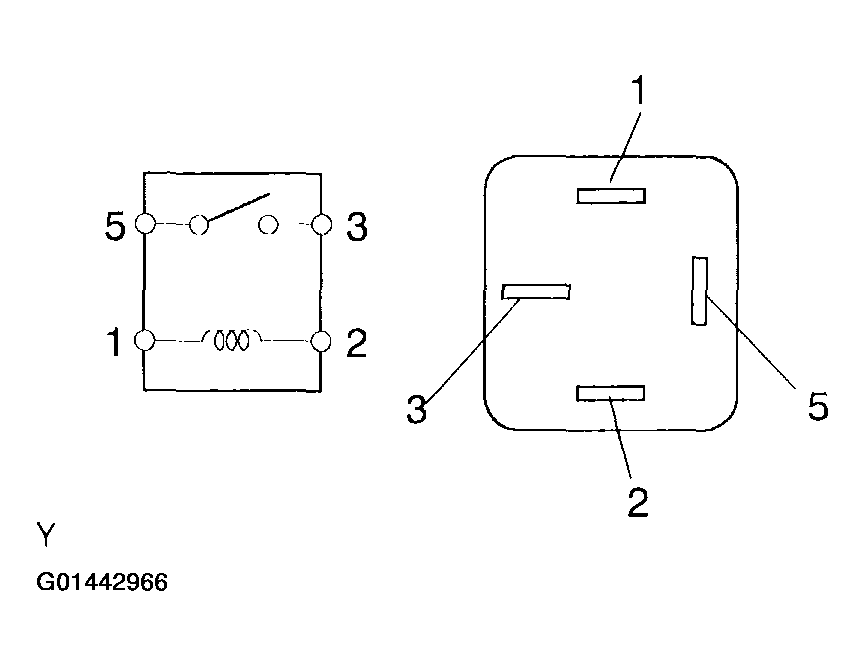

Fig 2: Inspecting Relay (D-IG1)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE RELAY

OK: Go to next step.
CHECK WIRE HARNESS (REAR DOOR LH ECU - BODY GROUND)
1. Disconnect the R13 ECU connector.
2. Measure the voltage and resistance of the wire harness side connector.
Standard:

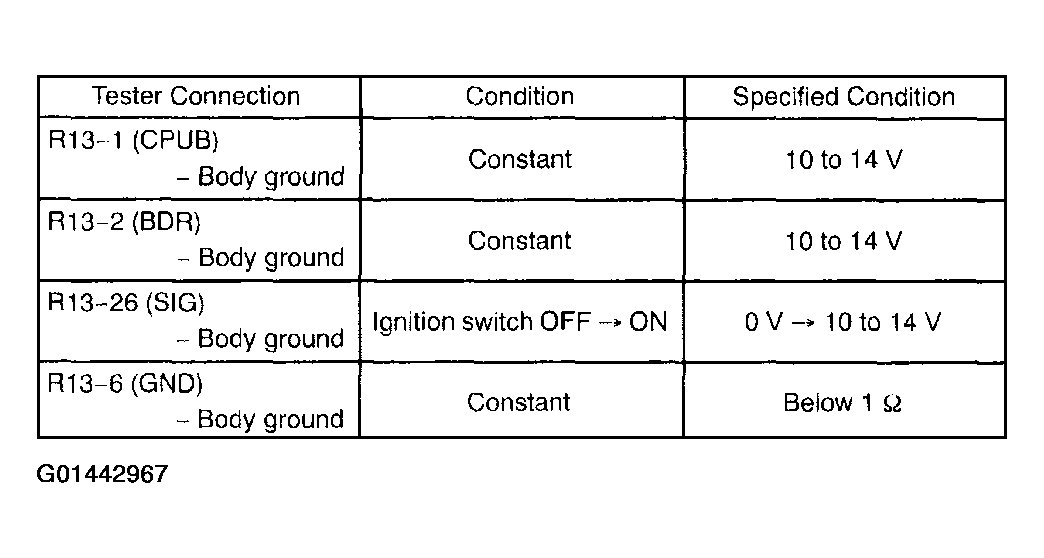

Fig 3: Terminals Resistance And Voltage Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

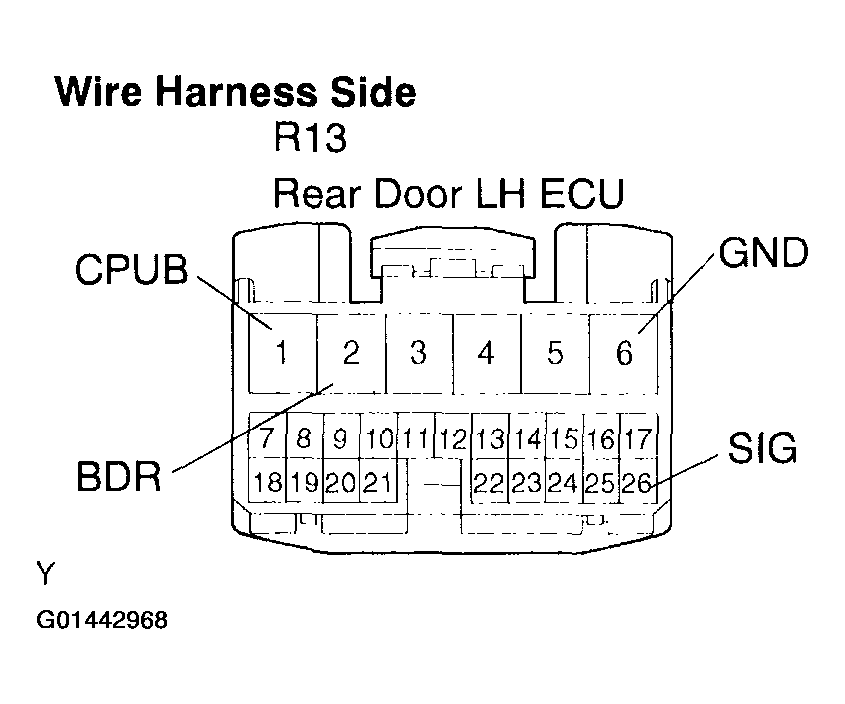

Fig 4: Checking Wire Harness (Rear Door LH ECU - Body Ground)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
