Inspection Procedure

1. Turn the window lock switch OFF. Then operate the remote UP/DOWN function of the power window regulator master switch assy, passenger door and rear door windows. Check if function operates normally.

OK: Remote UP/DOWN function operates normally.

NG: Go to step 2

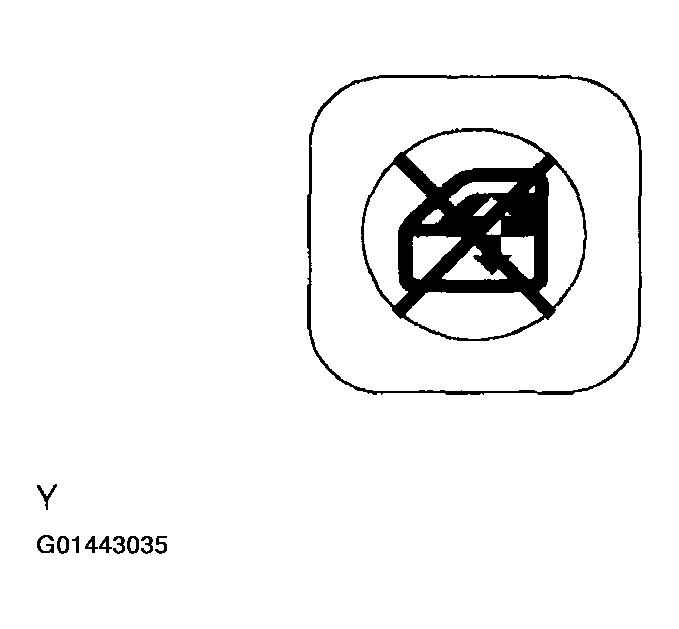

Fig 1: Checking Power Window Lock Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to next step.

1. Check that the passenger side power window manual UP/DOWN function operates normally.

NG: OTHER PROBLEM (See  PROBLEM SYMPTOMS TABLE  )

OK: Go to next step.

1. Disconnect the D25, F17, R13 and R14 ECU connector.
2. Disconnect the DG and DI J/B connectors.
3. Disconnect the PE and PI J/B connectors.
4. Measure the resistance of the wire harness side connectors.

Standard:

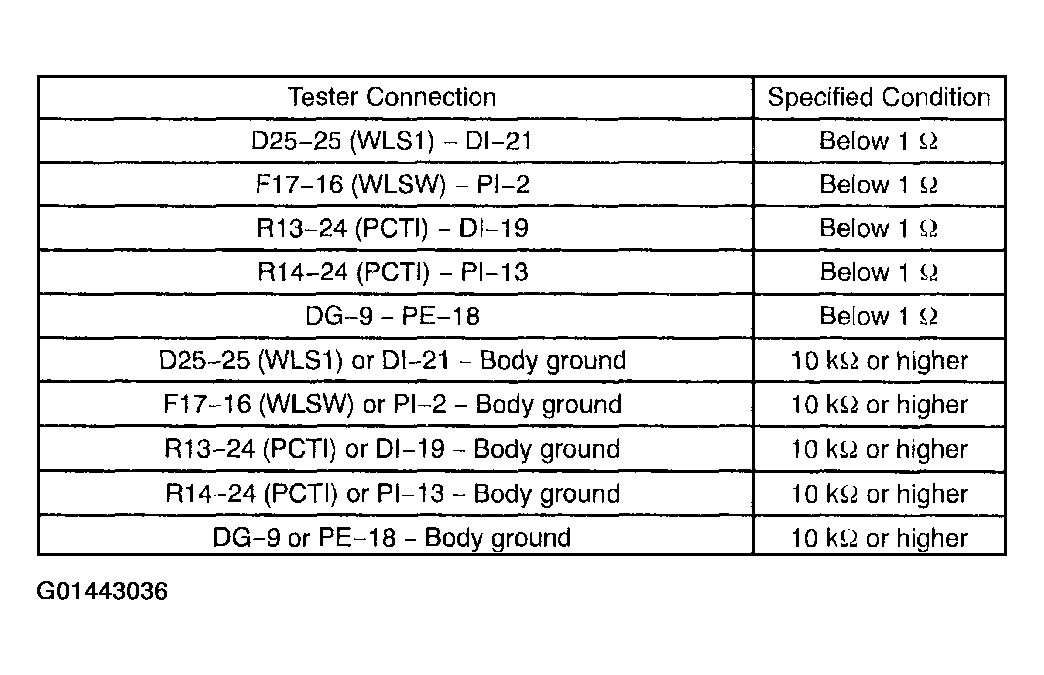

Fig 2: Terminals Resistance Reference Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Driver side J/B, passenger side J/B

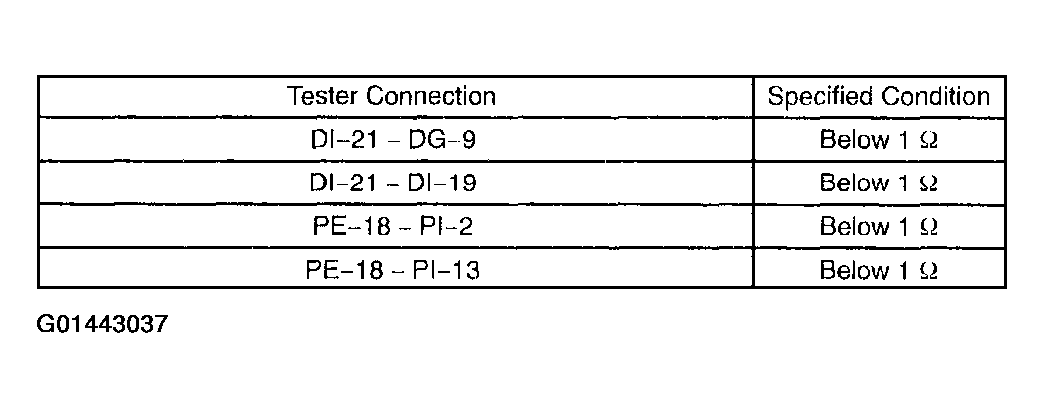

Fig 3: Terminals Resistance Reference Chart (Driver Side J/B, Passenger Side J/B)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

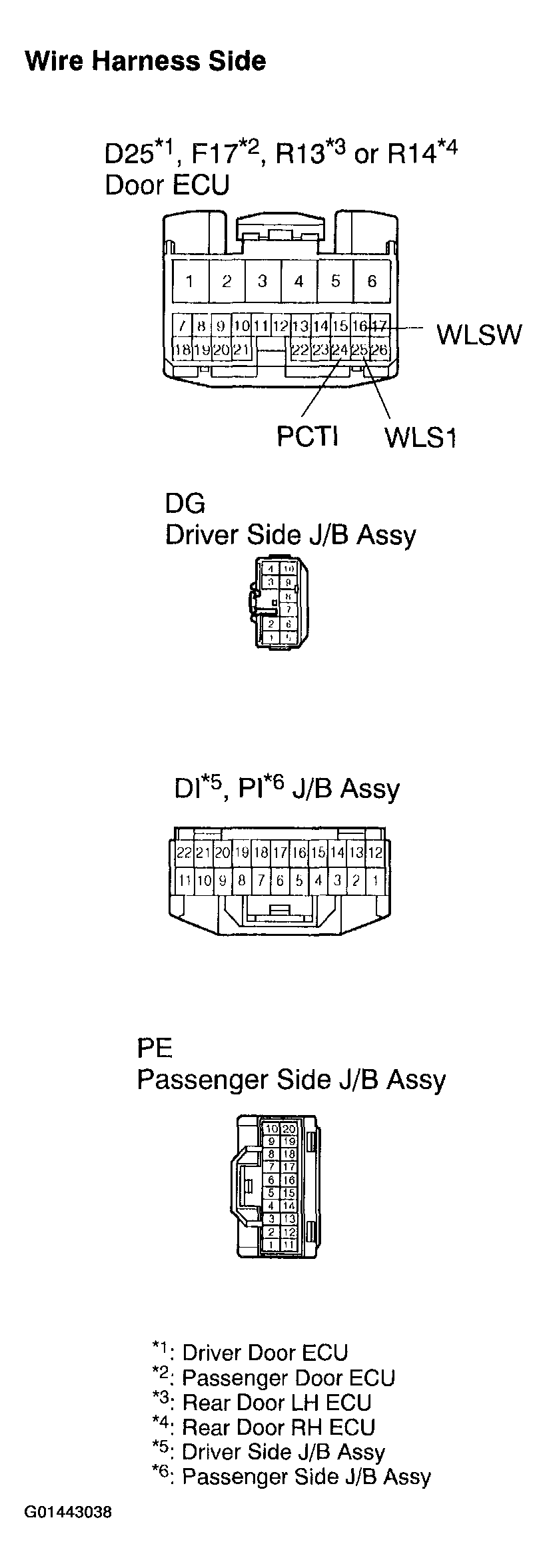

Fig 4: Checking Driver side J/B, passenger side J/B Wire Harness

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )
