Speed Sensor Rear LH: Replacement

HINT:

• Replace the RH side by using the same procedures as for the LH side.
• The procedures listed below are for the LH side.

1. REMOVE REAR SEAT CUSHION ASSY (SEE  OVERHAUL (FIXED TYPE)  or  OVERHAUL (POWER ADJUSTER TYPE)  )
2. REMOVE REAR SEAT HEAD REST ASSY (SEE  OVERHAUL (FIXED TYPE)  or  OVERHAUL (POWER ADJUSTER TYPE)  )
3. REMOVE REAR SEATBACK ASSY (SEE  OVERHAUL (FIXED TYPE)  or  OVERHAUL (POWER ADJUSTER TYPE)  )
4. REMOVE REAR WHEEL
5. REMOVE REAR WHEEL HOUSE LH LINER
6. REMOVE SPEED SENSOR REAR LH
   1. Disconnect the speed sensor connector, and pull out the speed sensor wire harness with the grommet.

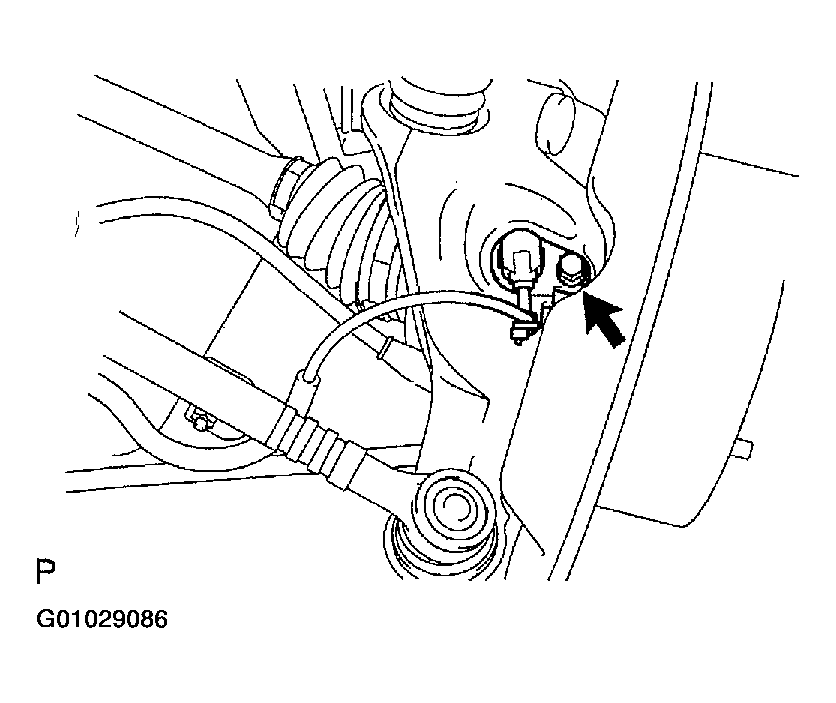

      Fig 1: Disconnecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the nut and bolt and disconnect the speed sensor rear wire harness.

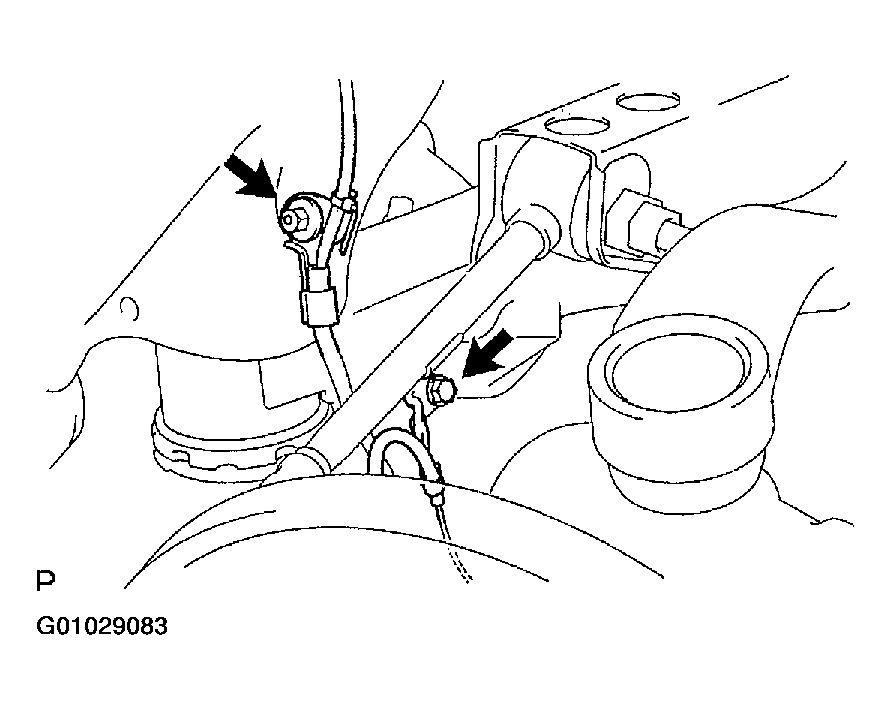

      Fig 2: Removing Nut And Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. RH side:

      Disconnect the pad wear indicator connector from the speed sensor rear.

   4. RH side:

      Remove the bolt and disconnect the speed sensor rear wire harness.

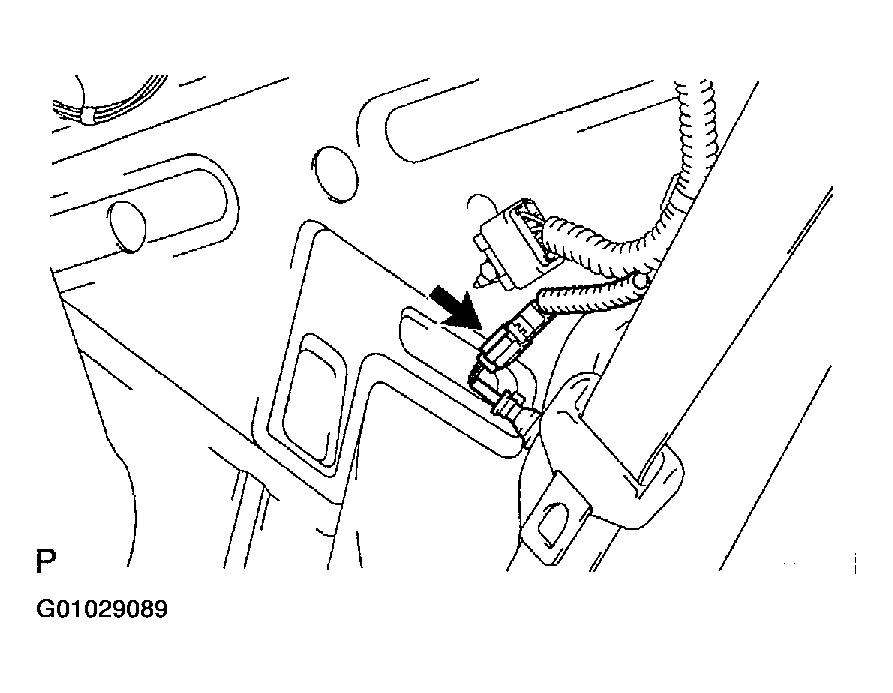

      Fig 3: Disconnecting Pad Wear Indicator Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Remove the bolt and speed sensor rear.
   NOTE: Prevent foreign matter from attaching to the sensor tip.

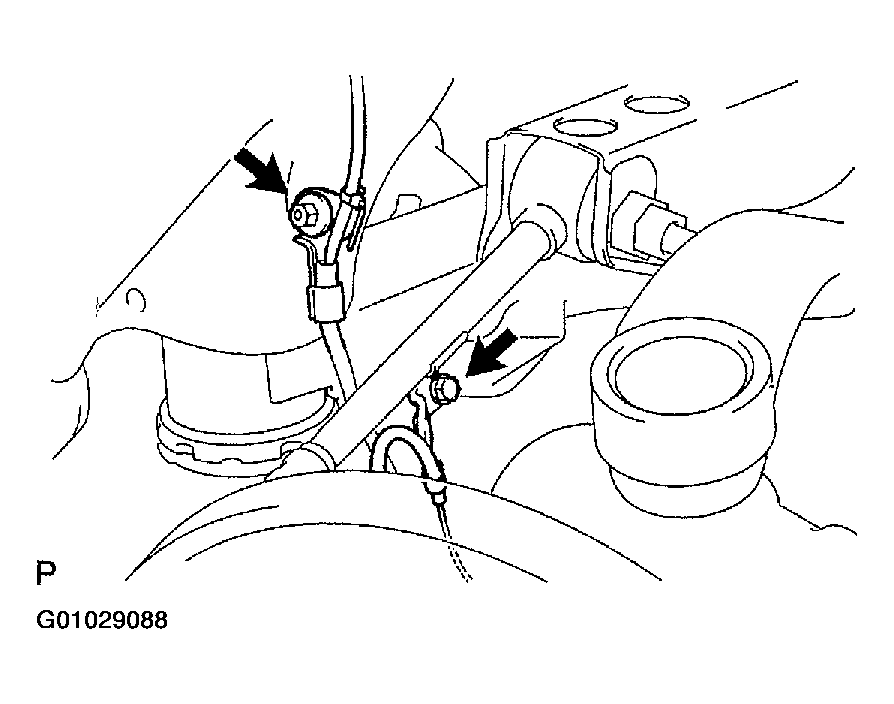

   Fig 4: Removing Bolt And Speed Sensor Rear

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL SPEED SENSOR REAR LH
   NOTE: Do not twist the sensor wire when installing the sensor.
   1. Install the speed sensor rear with the bolt.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

      NOTE: Prevent foreign matter from attaching to the sensor tip.

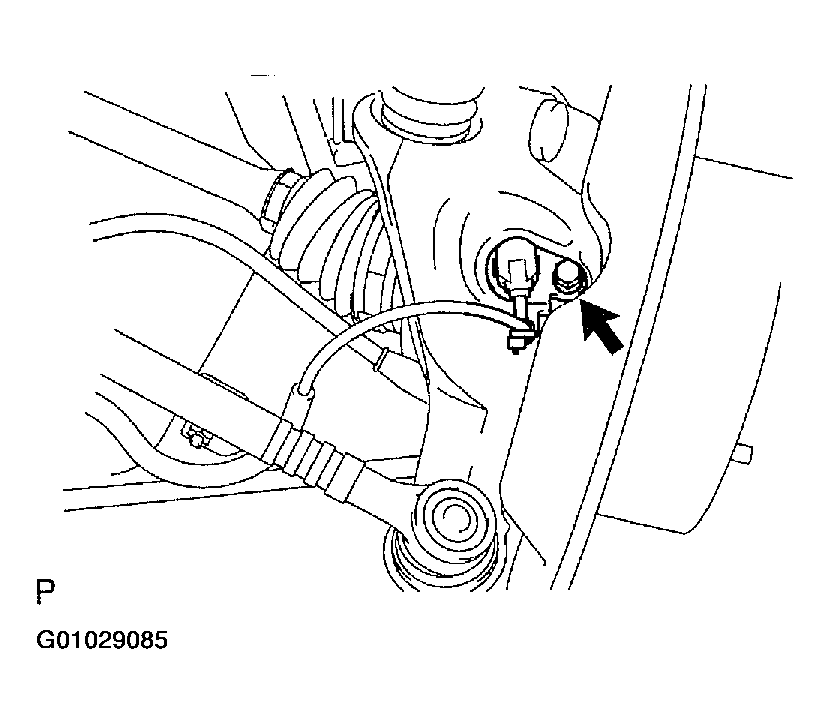

      Fig 5: Installing Speed Sensor Rear Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. RH side:

      Connect the speed sensor rear wire harness with the bolt.

      Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

   3. RH side:

      Connect the pad wear indicator connector to the speed sensor rear.

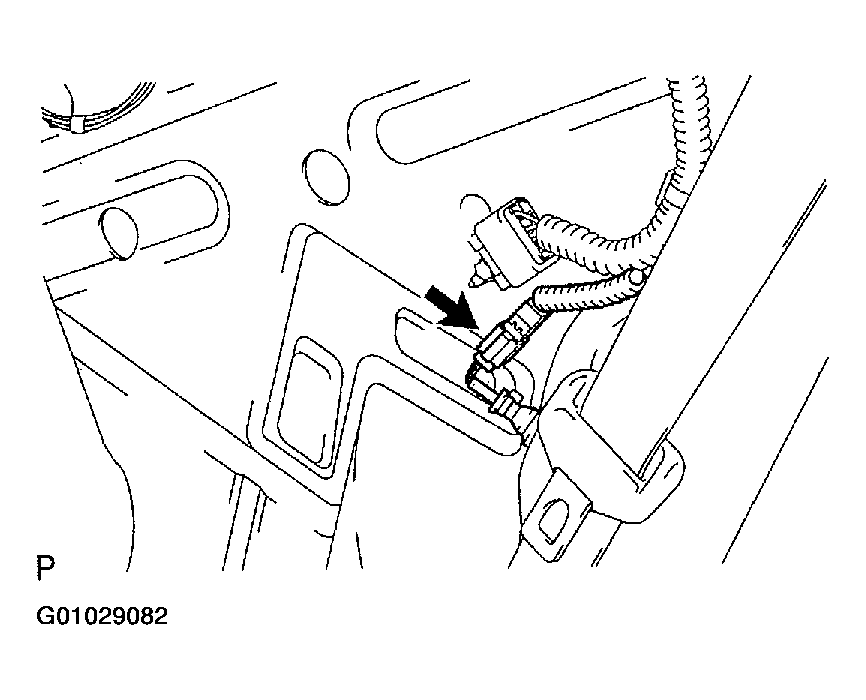

      Fig 6: Connecting Pad Wear Indicator Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Connect the speed sensor rear wire harness with the nut and bolt.

      Nut Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

      Bolt Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

      Fig 7: Connecting Speed Sensor Rear Wire Harness

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Connect the grommet and speed sensor rear.
      Fig 8: Connecting Grommet Speed Sensor Rear

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. INSTALL REAR WHEEL HOUSE LH LINER
9. INSTALL REAR WHEEL

   Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

10. INSTALL REAR SEATBACK ASSY (SEE  OVERHAUL (FIXED TYPE)  or  OVERHAUL (POWER ADJUSTER TYPE)  )
11. INSTALL REAR SEAT HEAD REST ASSY (SEE  OVERHAUL (FIXED TYPE)  or  OVERHAUL (POWER ADJUSTER TYPE)  )
12. INSTALL REAR SEAT CUSHION ASSY (SEE  OVERHAUL (FIXED TYPE)  or  OVERHAUL (POWER ADJUSTER TYPE)  )
13. CHECK ABS SPEED SENSOR SIGNAL (SEE  TEST MODE PROCEDURE  )
