Ignition Or Starter Switch ASSY: Replacement

HINT:

The installation procedures are the removal procedures in reverse order.

1. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1 (See  REPLACEMENT  )
2. REMOVE SWITCH BASE HOLE COVER (See  REPLACEMENT  )
3. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO. 1 (See  REPLACEMENT  )
4. REMOVE IGNITION OR STARTER SWITCH ASSY
   1. Disconnect the ignition switch connector and unlock warning switch connector.
   2. Remove the clamp.
   3. Remove the 2 screws and ignition switch.

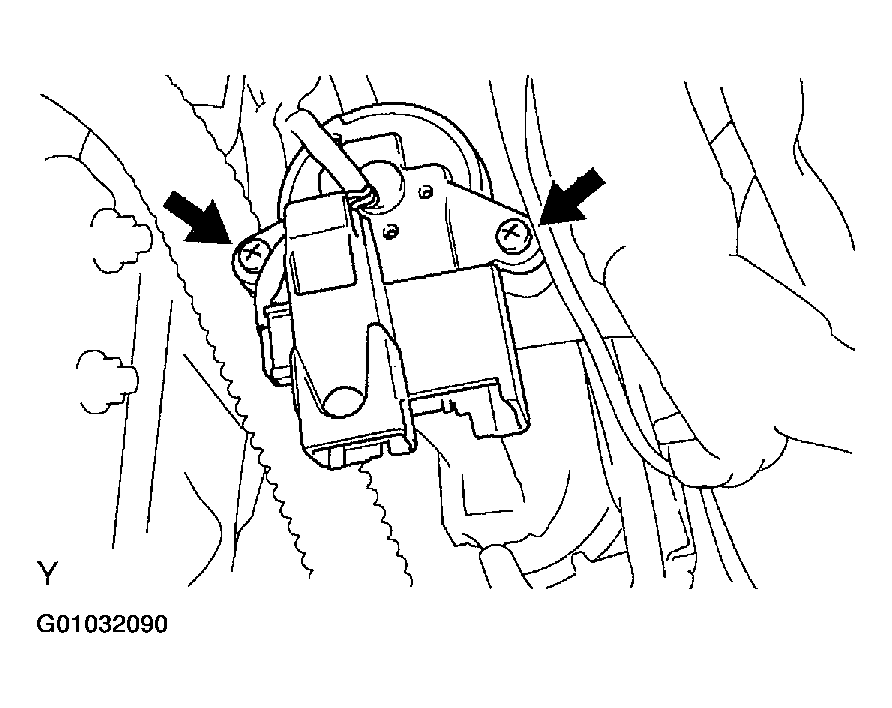

      Fig 1: Locating Ignition Switch Screw

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
