Emission Control System: Location

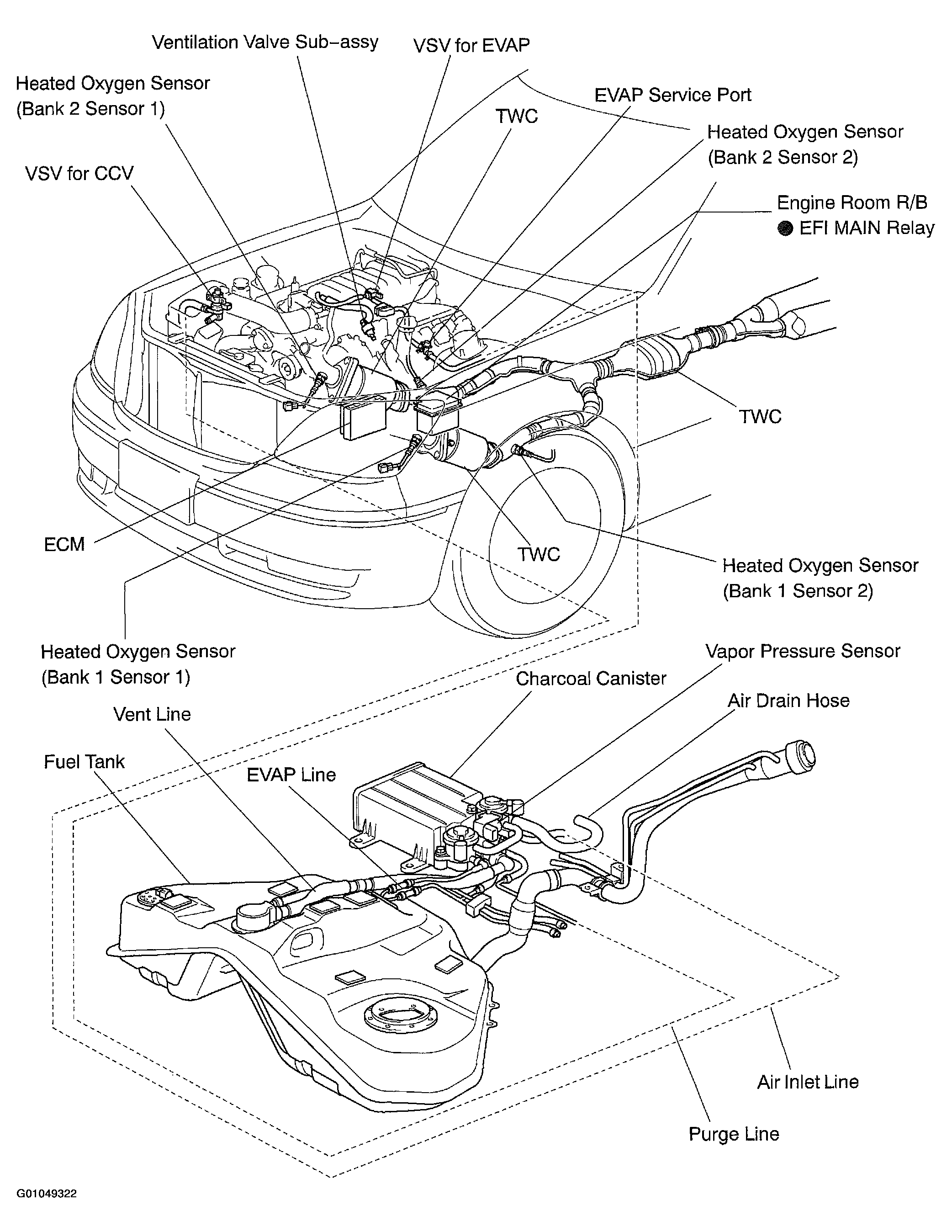

Fig 1: Identifying Emission Control System Components Locations
G01049322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
