Data List/Active Test

DATA LIST
HINT:

Using the hand-held tester DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to shorten labor time.

NOTE: In Fig 1 below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.
1. Warm up the engine.
2. Turn the ignition switch OFF.
3. Connect the hand-held tester to the Controller Area Network Vehicle Interface Module (CAN VIM). Then connect the CAN VIM to the Data Link Connector 3 (DLC3).
4. Turn the ignition switch ON.
5. Turn ON the hand-held tester.
6. Enter the following menus: DIAGNOSIS/ ENHANCED OBD II/ DATA LIST.
7. According to the display on tester, read the DATA LIST.

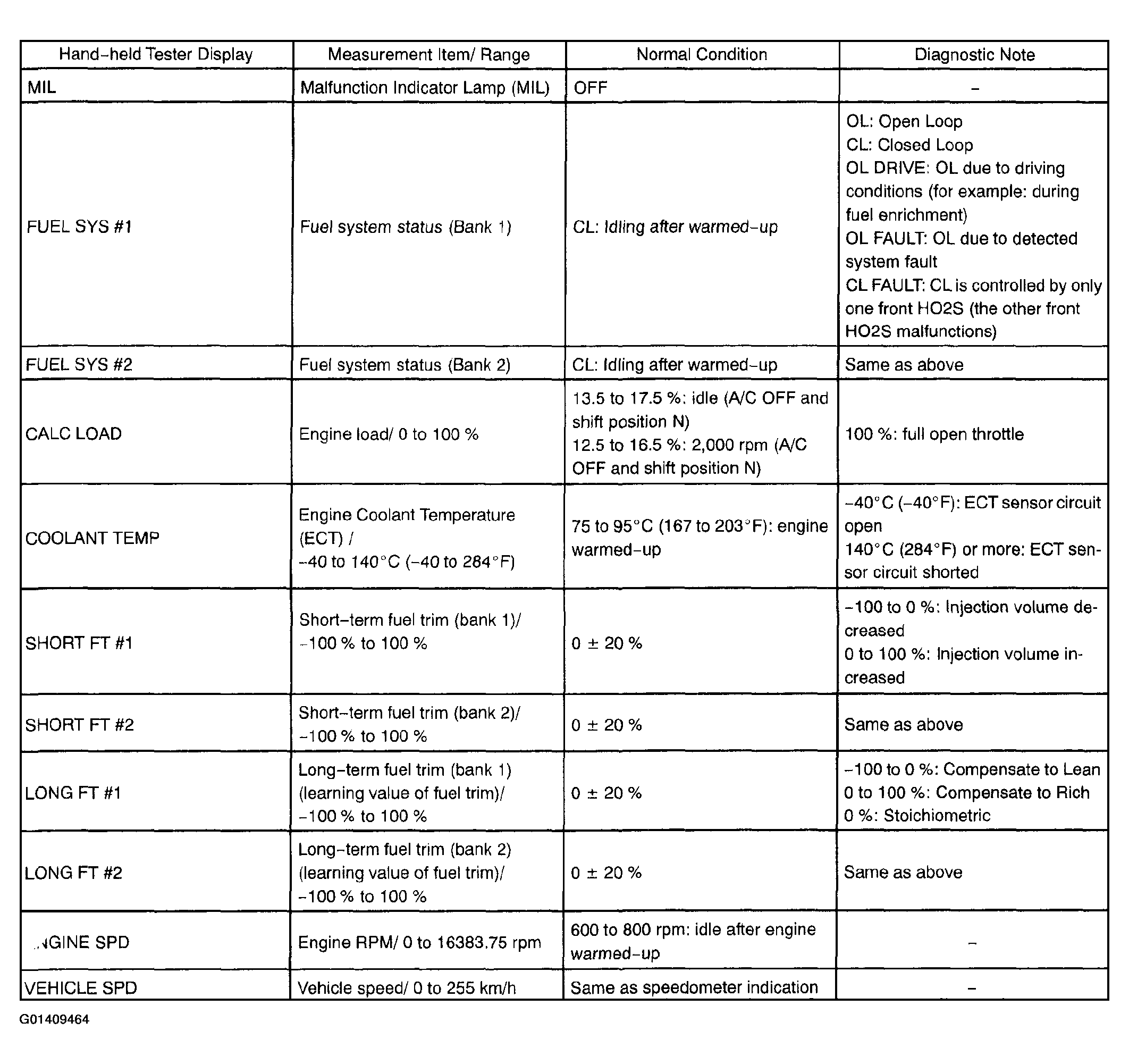

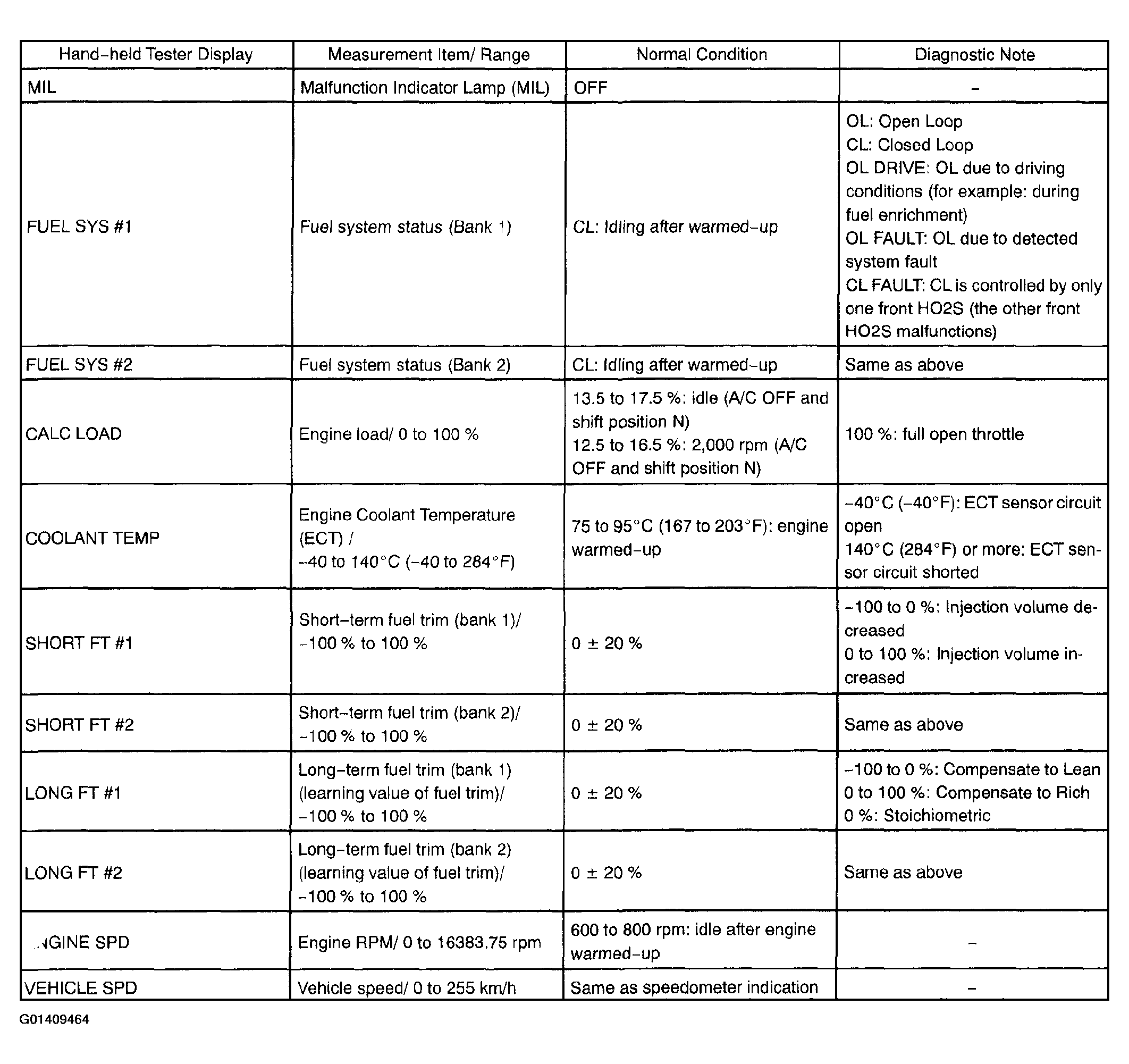

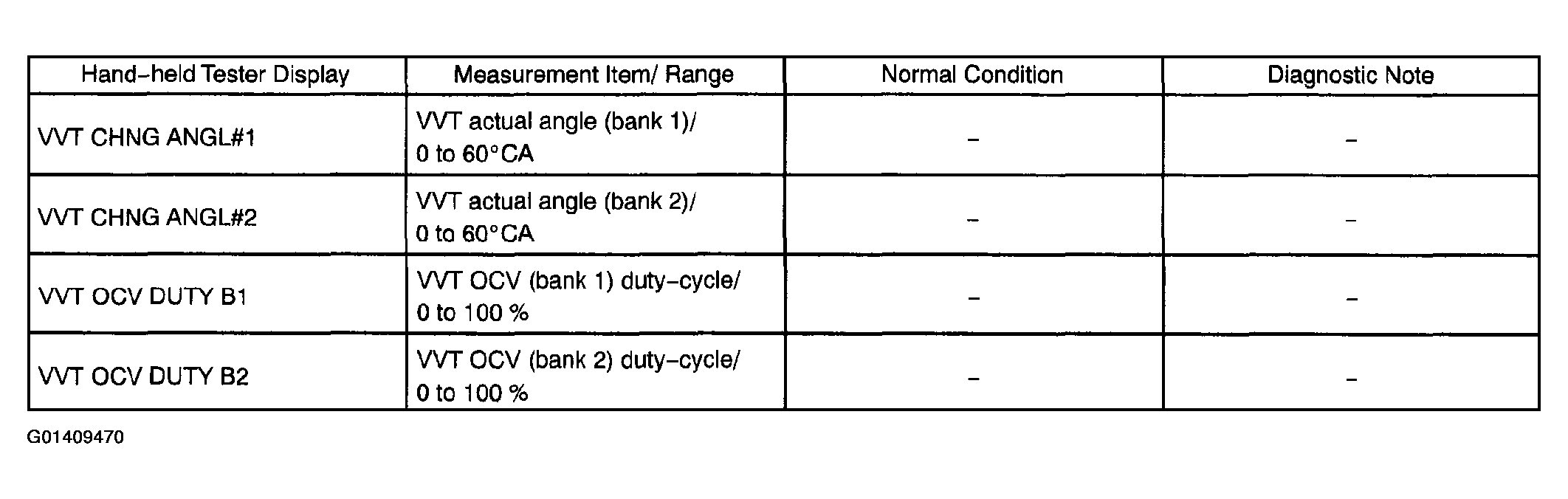

  Fig 1: Hand-Held Tester Data List (1 Of 6)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

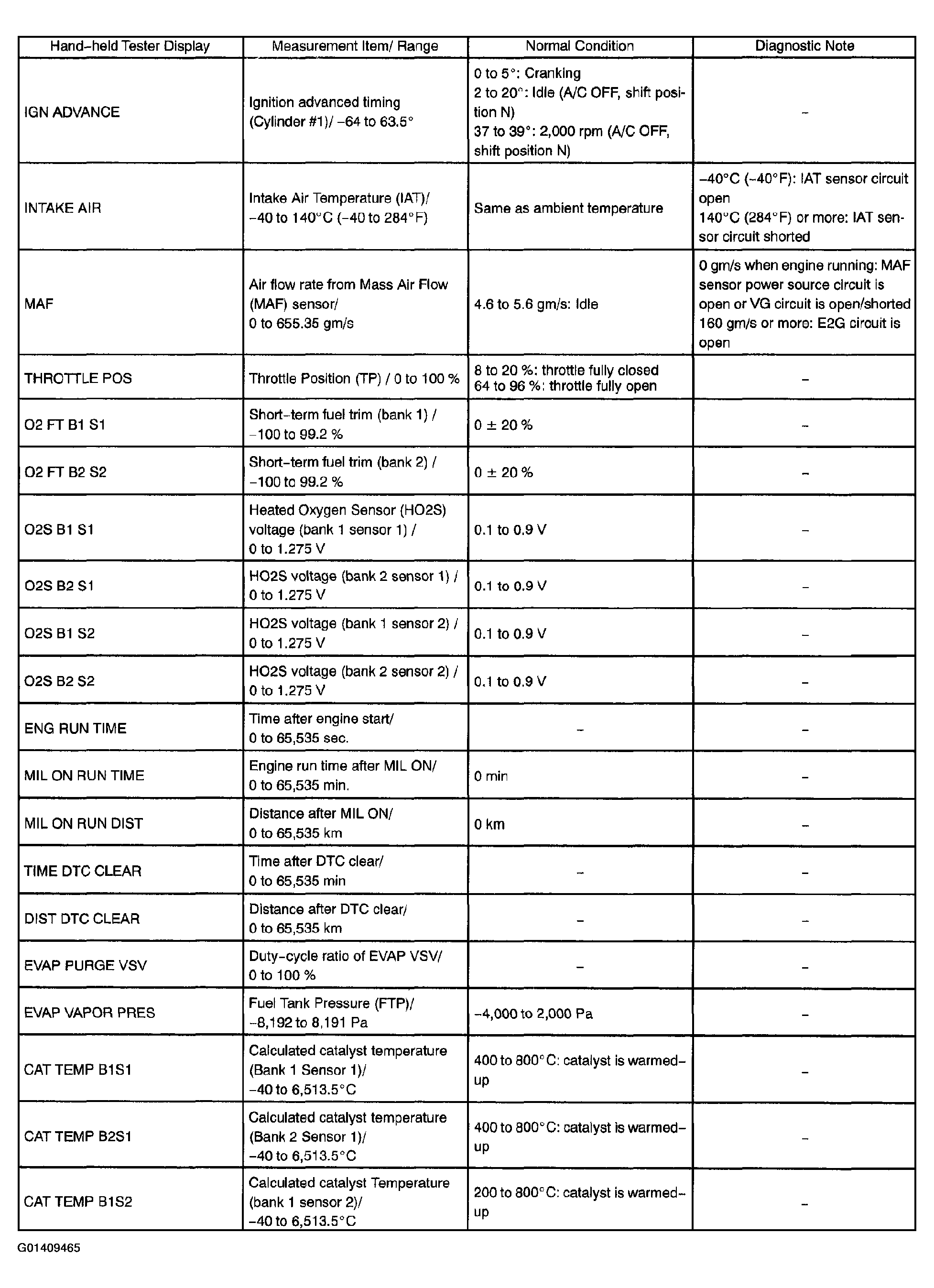

Fig 2: Hand-Held Tester Data List (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

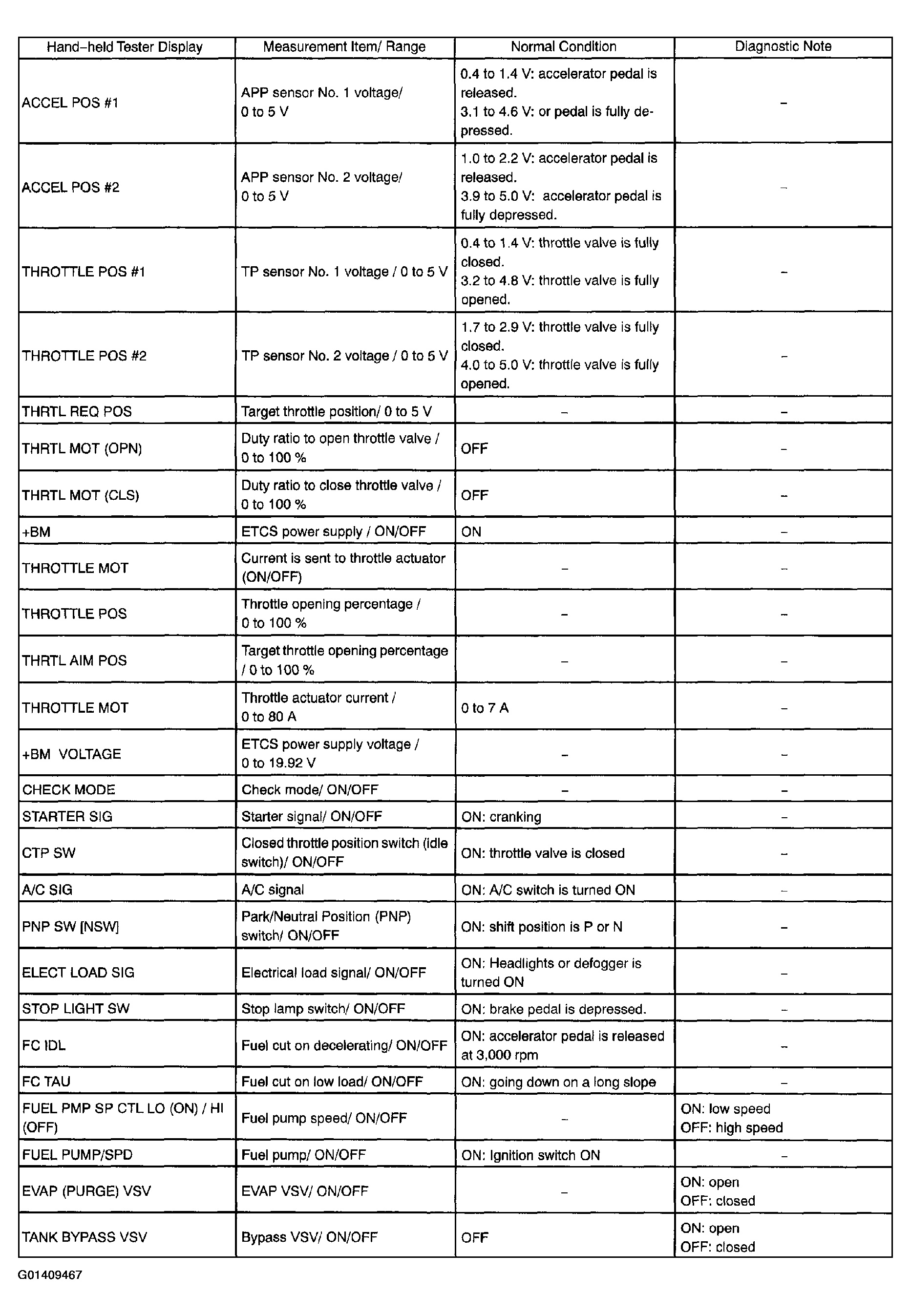

Fig 3: Hand-Held Tester Data List (3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

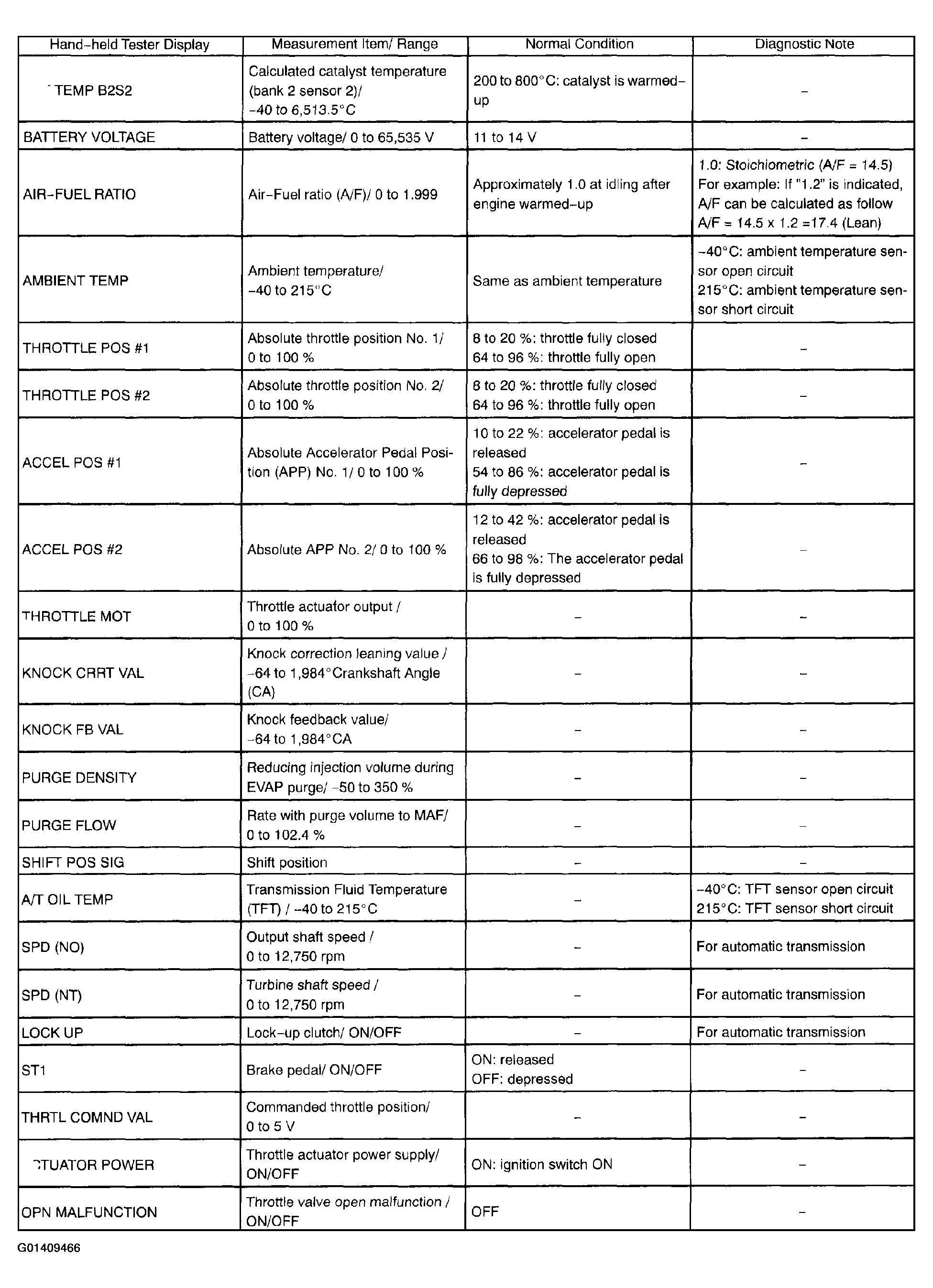

Fig 4: Hand-Held Tester Data List (4 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

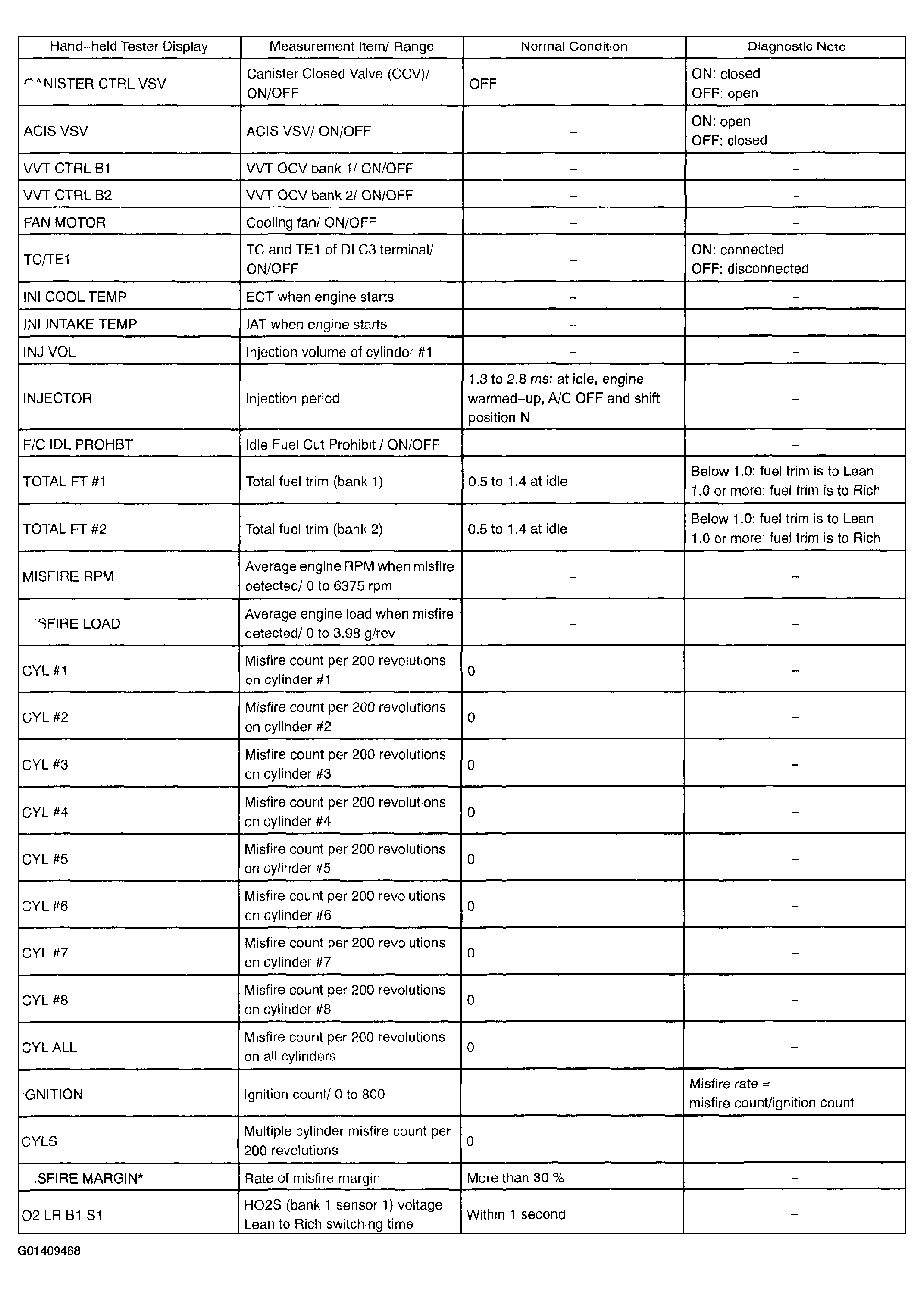

Fig 5: Hand-Held Tester Data List (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

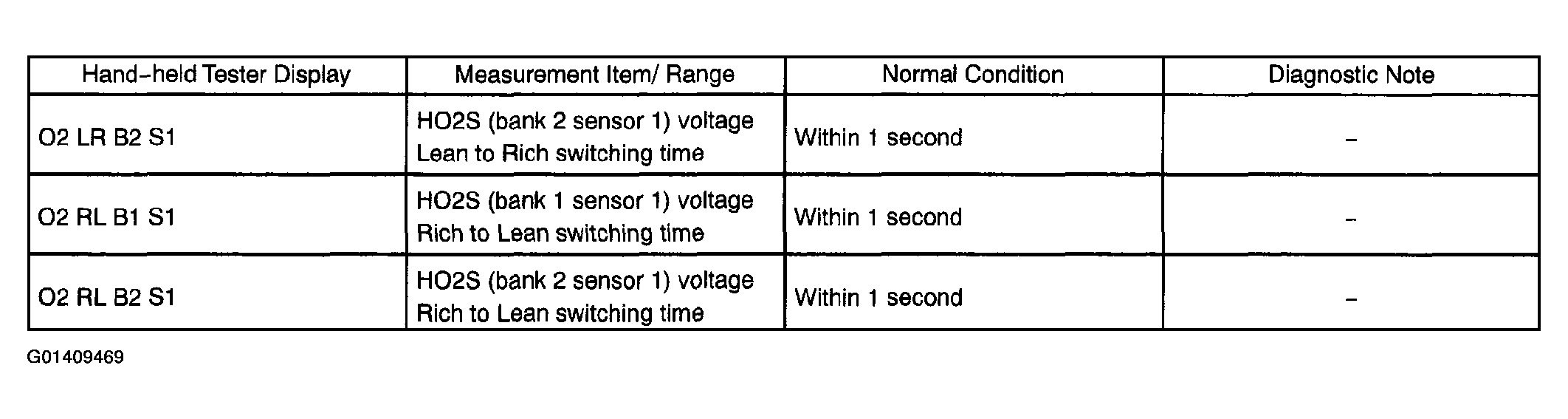

Fig 6: Hand-Held Tester Data List (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If no conditions are specifically stated for "idling", the shift lever is in the N or P position, and the A/C and all accessory switches are OFF.

* Misfire margin indicates the possibility that misfires do not occur. The misfires are counted when the misfire margin is 0 % or less. There is little possibility of misfires if the misfire margin is less than 30 %. Misfire margin is calculated with the following arithmetic expression.

Misfire margin (%) = Fluctuation of engine revolution to interpret as misfire - Fluctuation of actual engine revolution / Fluctuation of engine revolution to interpret as misfire x 100

Displays during Active Test:

Fig 7: Display Active Test Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ACTIVE TEST
HINT:

Performing the hand-held tester ACTIVE TEST allows relay, Vacuum Switching Valve (VSV), actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to shorten labor time. The DATA LIST can be displayed during the ACTIVE TEST.
1. Turn the ignition switch OFF.
2. Connect the hand-held tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
3. Turn the ignition switch ON.
4. Turn ON the hand-held tester.
5. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST.
6. According to the display on tester, perform the ACTIVE TEST.

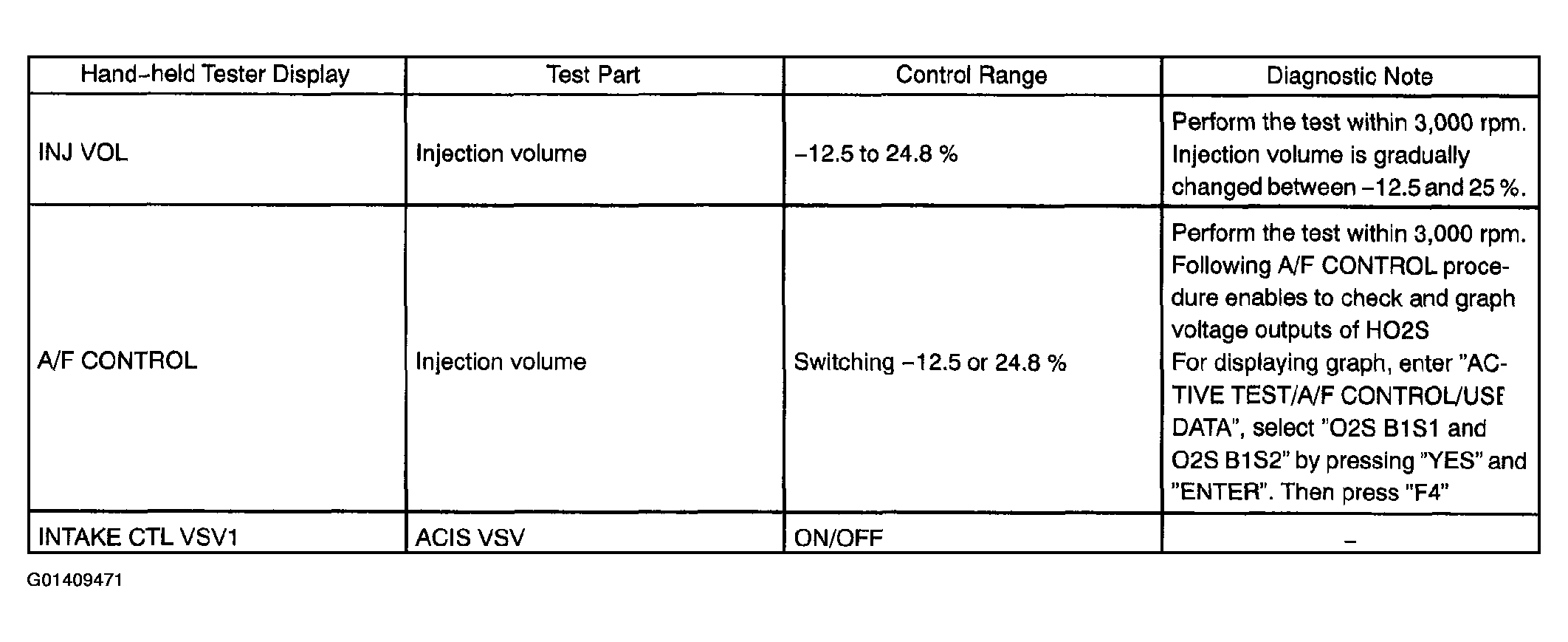

  Fig 8: Hand-Held Tester Display Chart (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

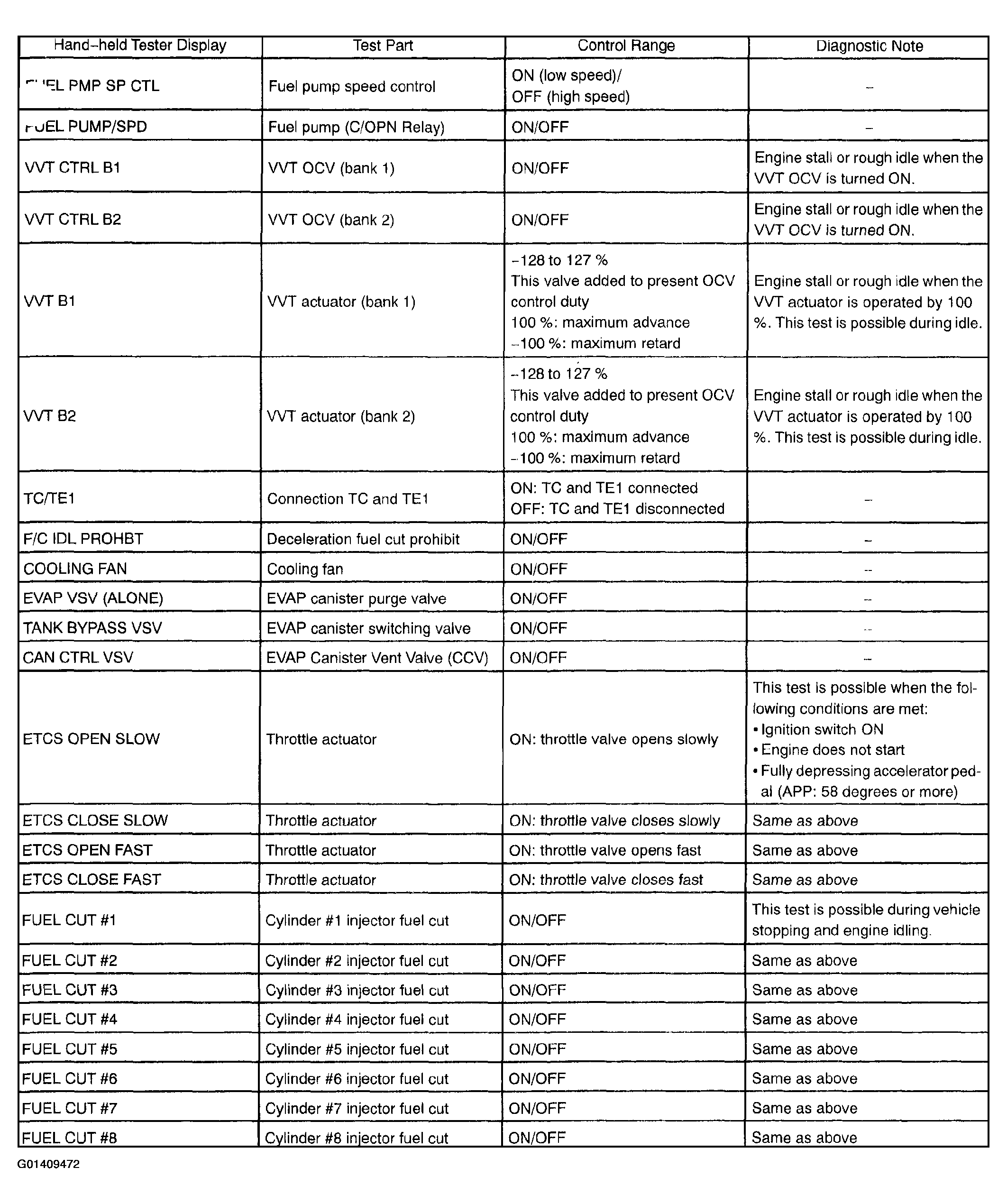

Fig 9: Hand-Held Tester Display Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
