2-Trip Detection Logic

When a malfunction is first detected, the malfunction is temporarily stored in the ECM memory (1st trip). If the ignition switch is turned OFF and then ON again, and the same malfunction is detected again, the MIL will illuminate.

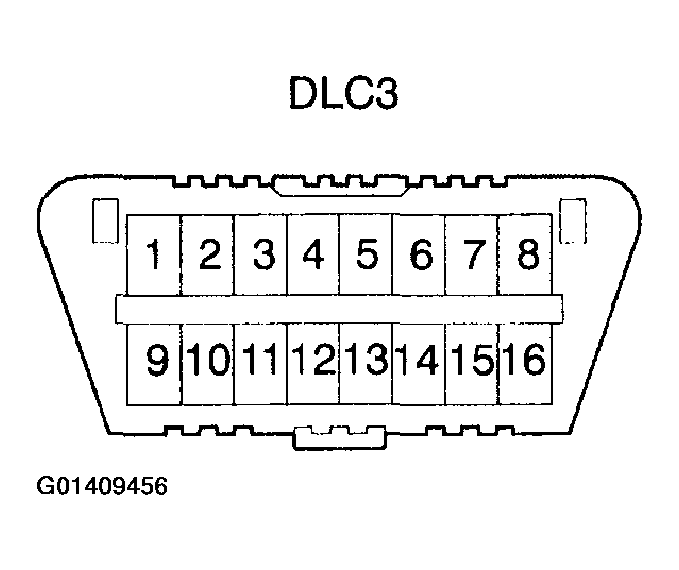

Fig 1: Identifying Connector Terminal Of DLC3
G01409456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
