Diagnosis System: Description

When troubleshooting On-Board Diagnostic (OBD II) vehicles, the vehicle must be connected to the OBD II scan tool (complying with SAE J1987). Various data output from the vehicle's ECM can then be read.

OBD II regulations require that the vehicle's on-board computer illuminates the Malfunction Indicator Lamp (MIL) on the instrument panel when the computer detects a malfunction in:

1. The emission control system/components
2. The powertrain control components (which affect vehicle emissions)
3. The computer.

   In addition, the applicable Diagnostic Trouble Codes (DTCs) prescribed by SAE J2012 are recorded in the ECM memory. If the malfunction does not reoccur in 3 consecutive trips, the MIL turns off automatically but the DTCs remain recorded in the ECM memory.

   Fig 1: Identifying Symbol Of Brake Fluid

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

To check DTCs, connect the scan tool to the Data Link Connector 3 (DLC3) of the vehicle. The scan tool displays DTCs, the freeze frame data and a variety of the engine data.

The DTCs and freeze frame data can be erased with the scan tool (see DTC CHECK/CLEAR  ).

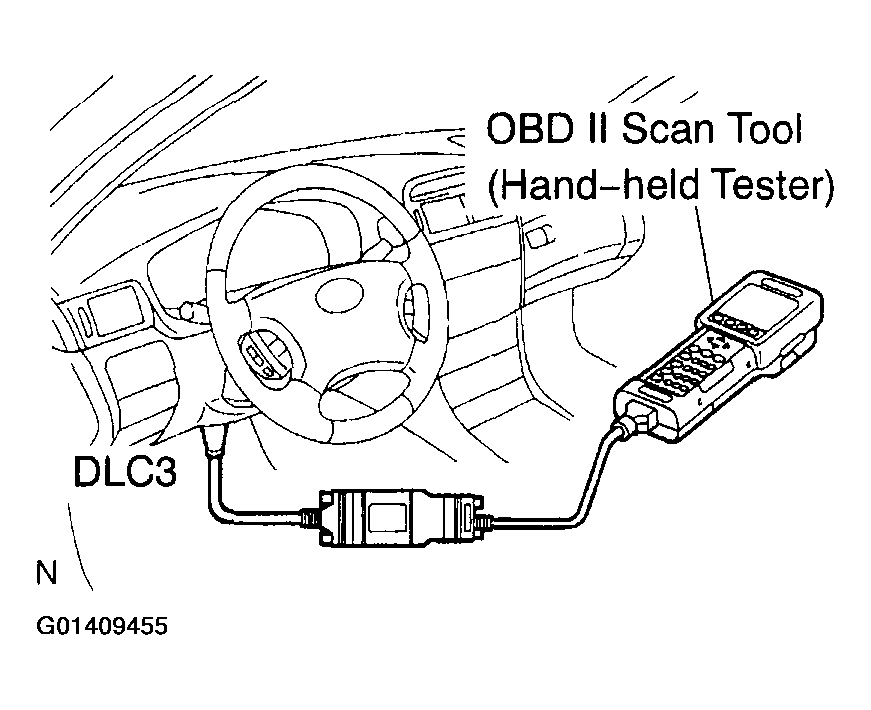

Fig 2: Connecting Scan Tool To Data Link Connector 3 (DLC3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
