Inspection Procedure

1. Disconnect the vacuum hose from the port F on the ACIS VSV.
   Fig 1: Disconnecting Vacuum Hose From Port F On ACIS VSV

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the hand-held tester to the Controller Area Network Vehicle Interface Module (CAN VIM). Then connect the CAN VIM to the DLC3.
3. Start the engine.
4. Enter the following menus: ACTIVE TEST/ INTAKE CTL VSV 1. Operate the AICS VSV.

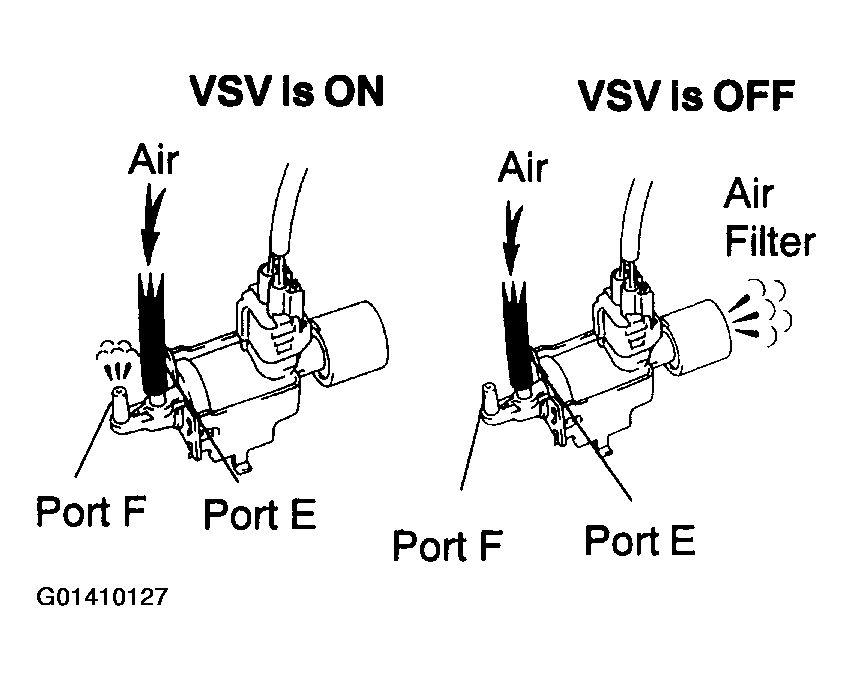

5. Check the VSV's airflow when switching the VSV.

   Standard:

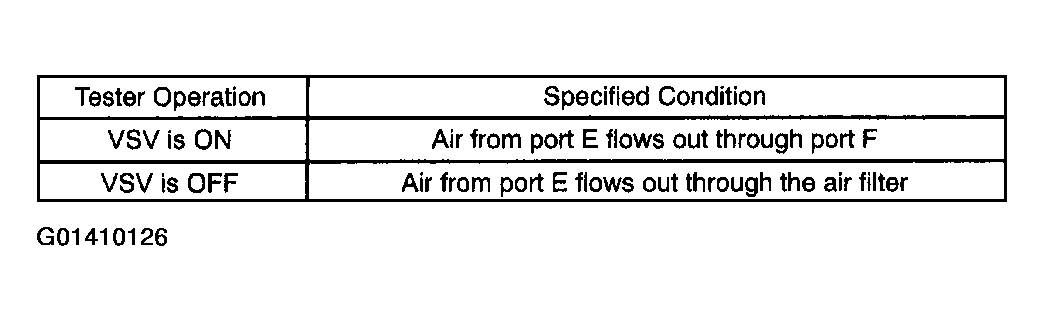

   Fig 2: VSV Specified Condition Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: Go to step   4
2. NG: Go to next step.

Check the condition of the vacuum hoses between the intake manifold, ACIS VSV and IACV.

• The vacuum hoses are connected securely.
• Vacuum hoses are not cracked or damaged.

OK:

The vacuum hoses are connected securely and not cracked or damaged.

1. NG: REPAIR OR REPLACE VACUUM HOSES
2. OK: Go to next step.

1. NG: REPLACE INTAKE AIR CONTROL VALVE
2. OK: Go to next step.

   REPLACE ECM (SEE  REPLACEMENT  )

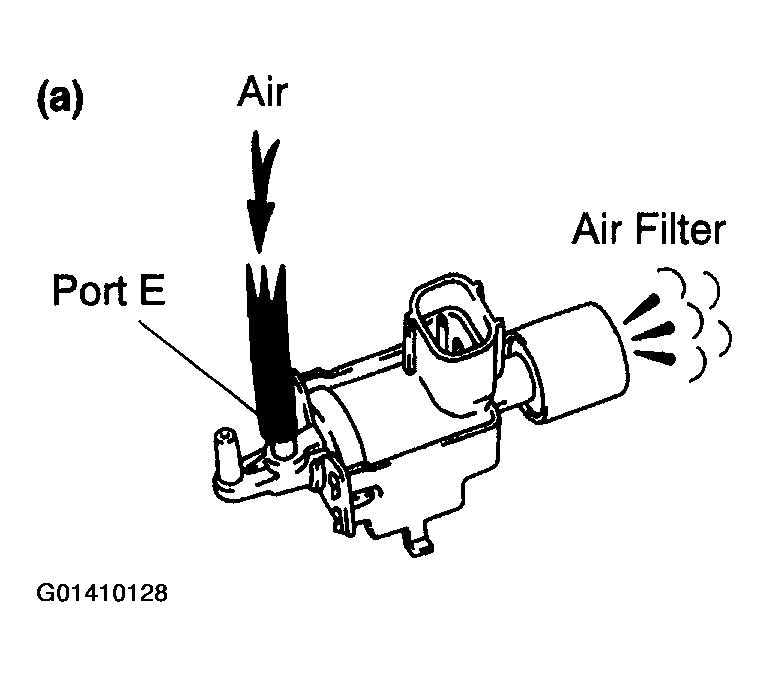

1. Check that air flows from port E to the air filter.
   Fig 3: Checking Air Flows From Port E To Air Filter

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

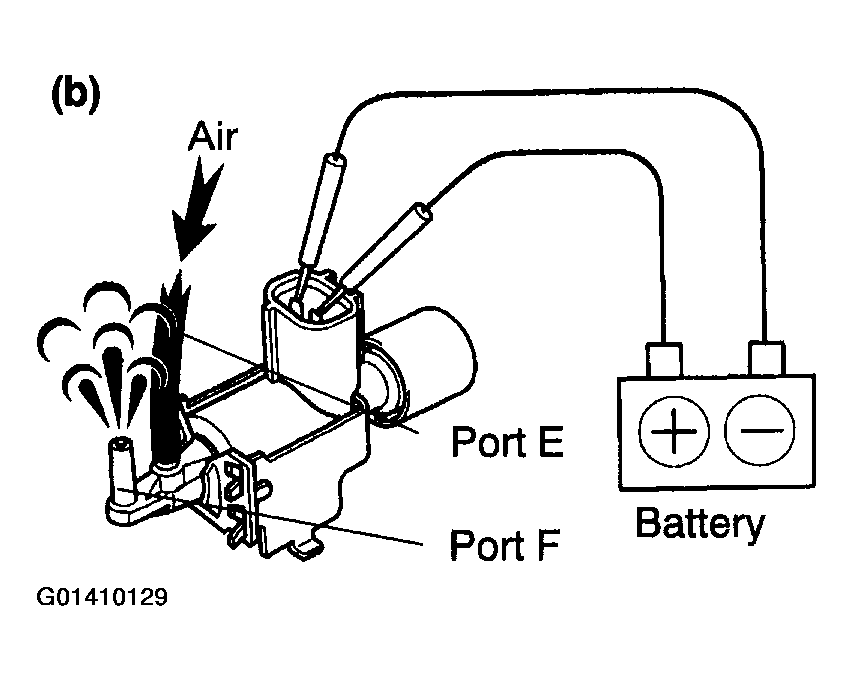

2. Apply battery positive voltage across the terminals.
3. Check that air flows from port E to port F.
   Fig 4: Applying Battery Positive Voltage Across Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE ACIS VSV
2. OK: Go to next step.

1. Check the wire harness between the ACIS VSV and the ECM.
   1. Disconnect the V2 ACIS VSV connector.

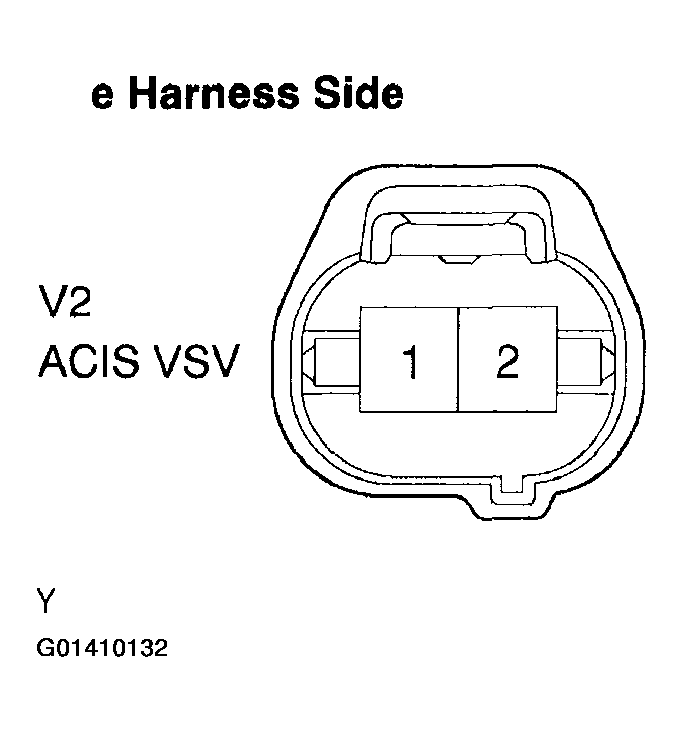

      Fig 5: Identifying Connector Terminals ACIS VSV

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

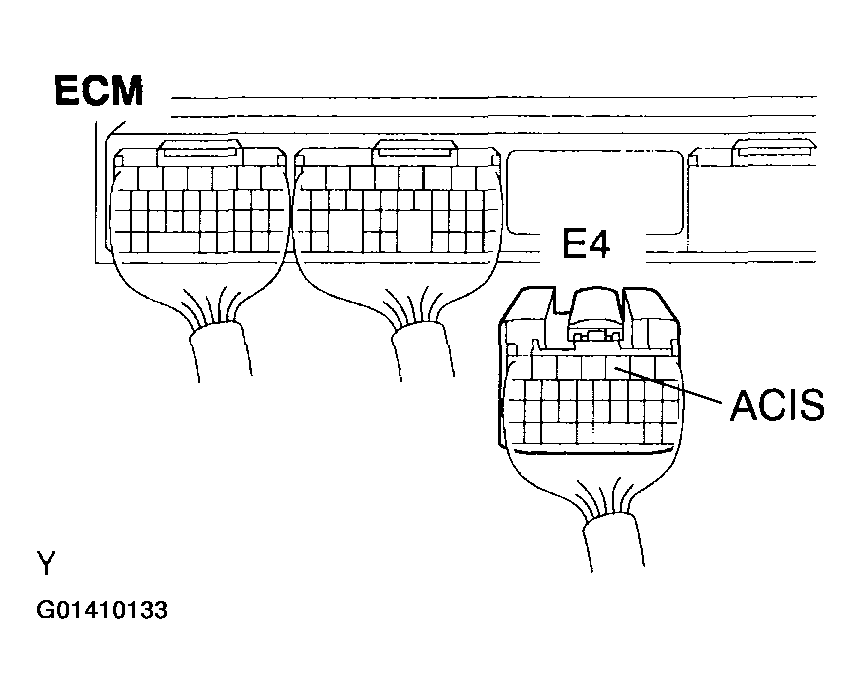

   2. Disconnect the E4 ECM connector.
      Fig 6: Disconnecting V2 ACIS VSV Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Measure the resistance of the wire harness side connectors.

      Standard:

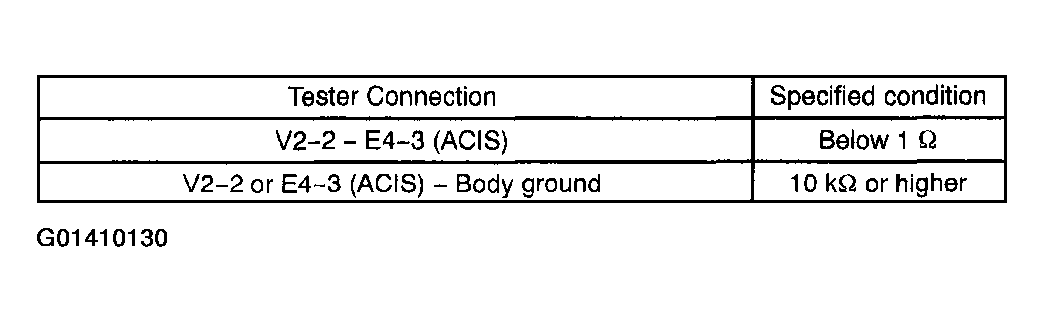

      Fig 7: Resistance Condition Chart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the wire harness between the ACIS VSV and the EFI MAIN relay.

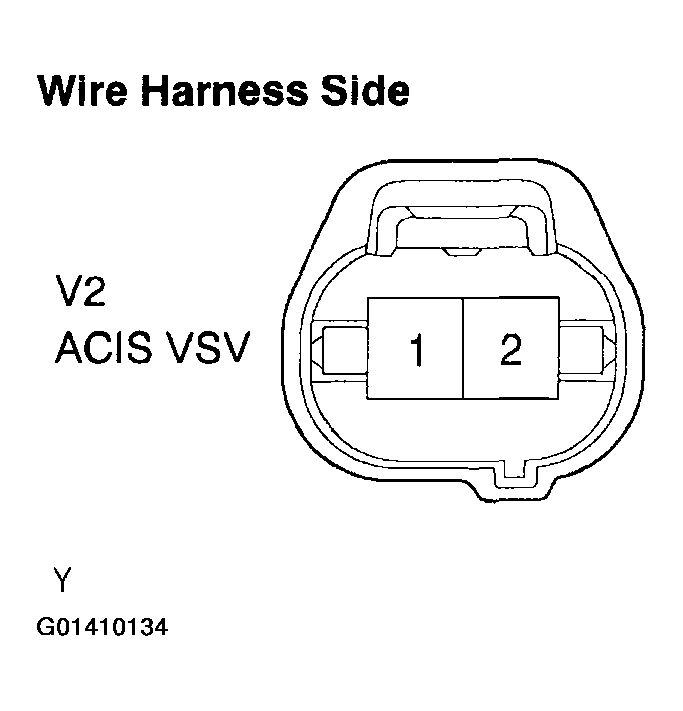

   1. Disconnect the V2 ACIS VSV connector.
      Fig 8: Disconnecting V2 ACIS VSV Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the EFI MAIN relay from the engine room Relay Block (R/B).

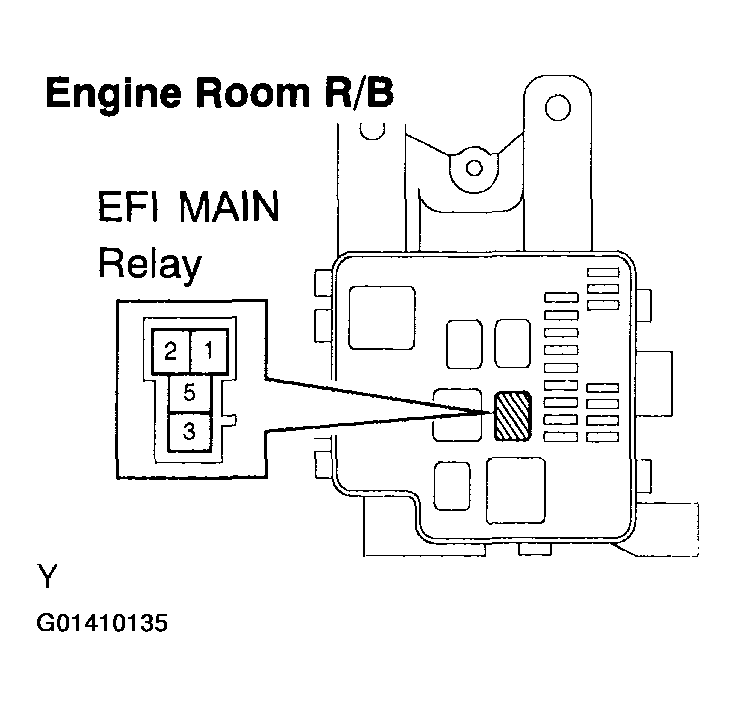

      Fig 9: Removing EFI Main Relay From Engine Room Relay Block

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Measure the resistance of the wire harness side connectors.

      Standard:

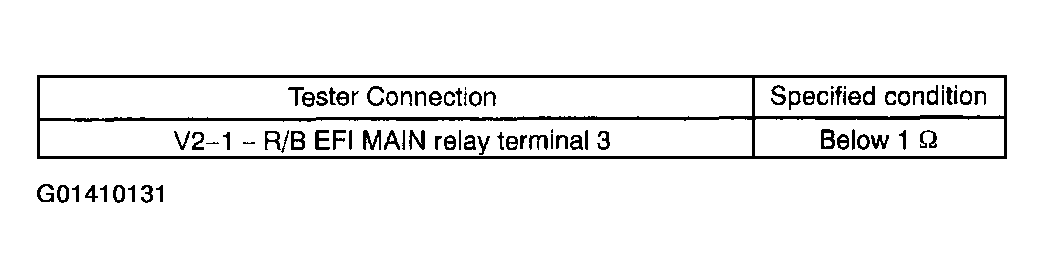

      Fig 10: Resistance Specification Chart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: Go to next step.

   REPLACE ECM (SEE  REPLACEMENT  )
