List Of Disable A Monitor

HINT:

The table indicates ECM monitoring status for the items in the upper columns if the DTCs in each line the left are being set. The "X" mark is used when the DTC on the left is stored but detection of the DTC in the upper column is not performed.

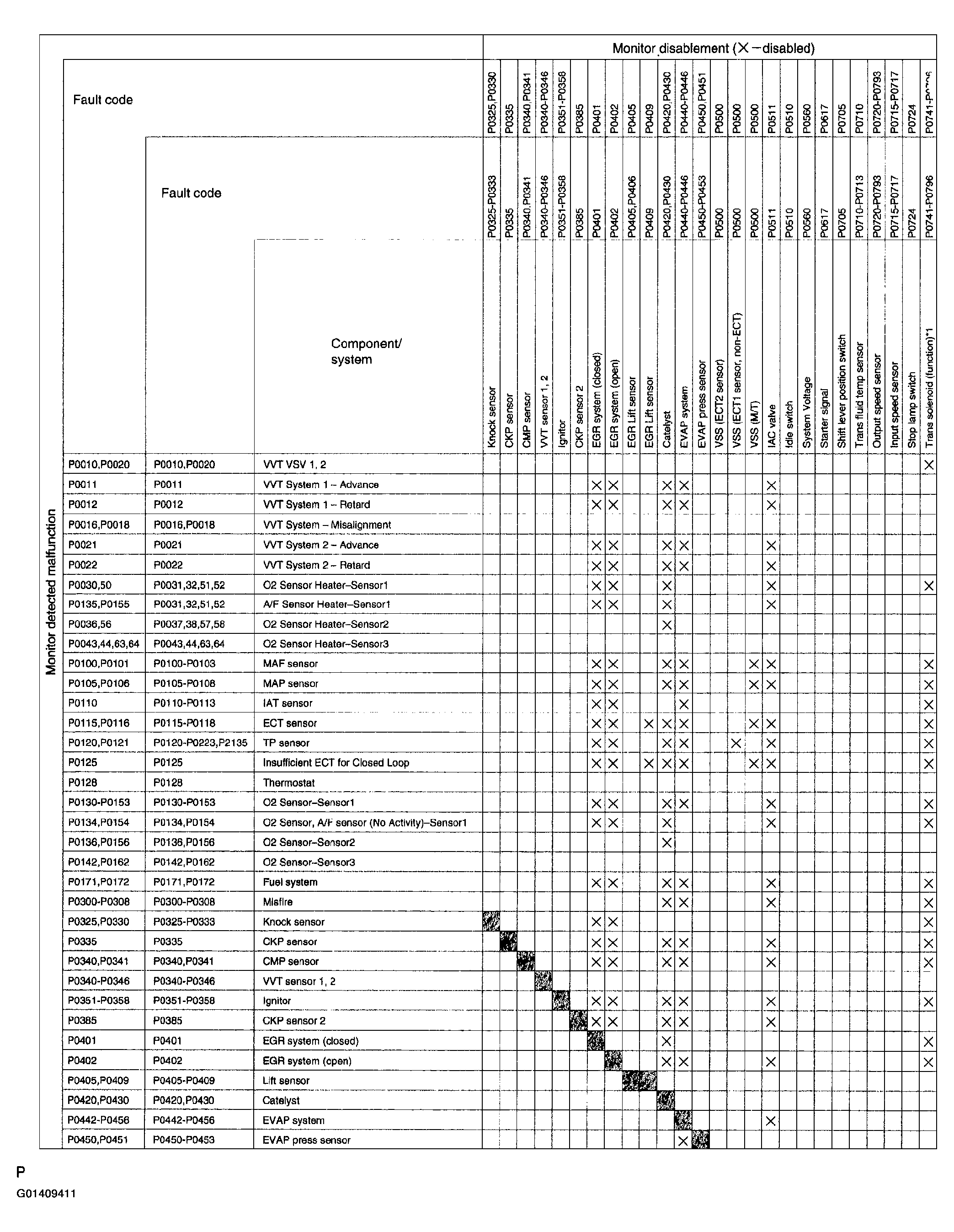

Fig 1: Identifying ECM Monitoring Status (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

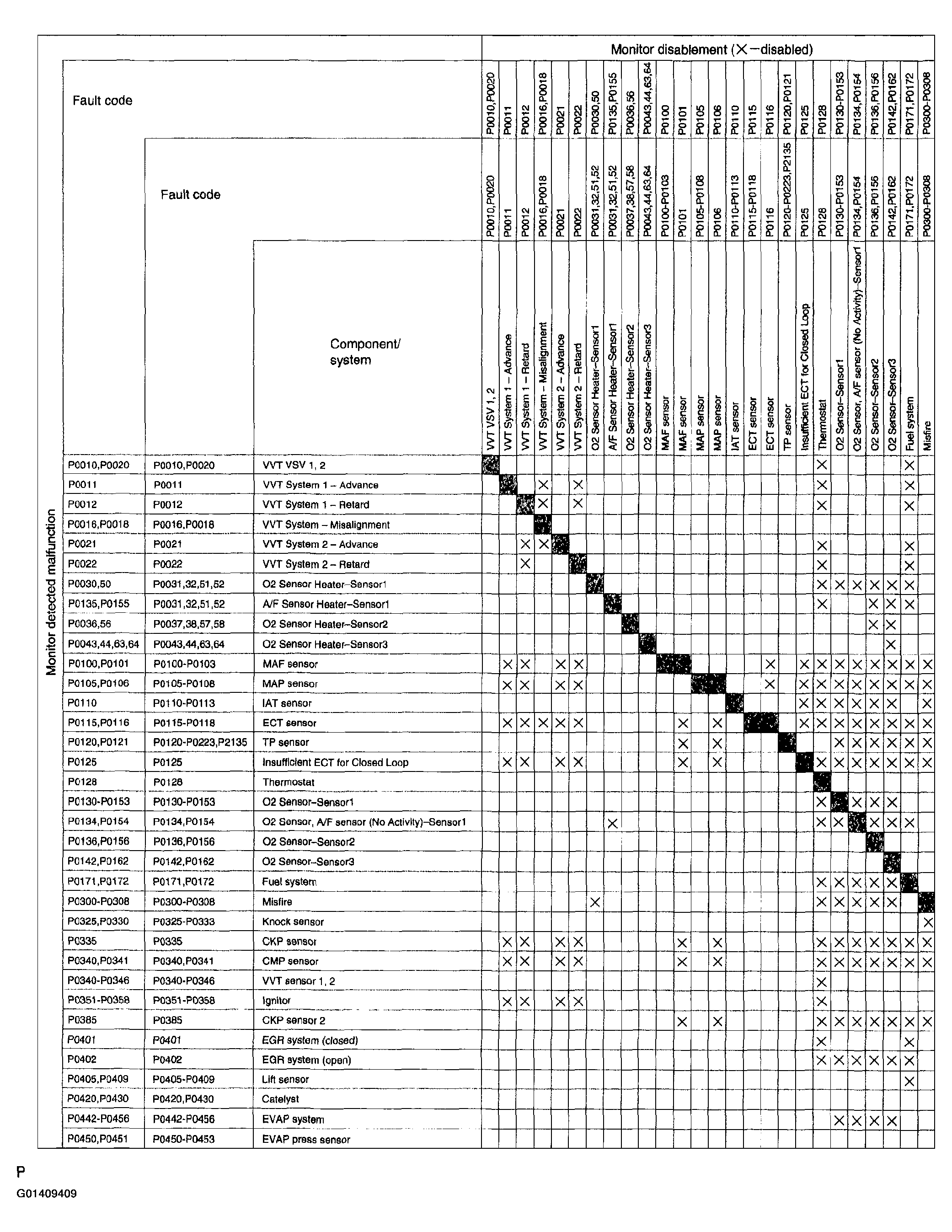

Fig 2: Identifying ECM Monitoring Status (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

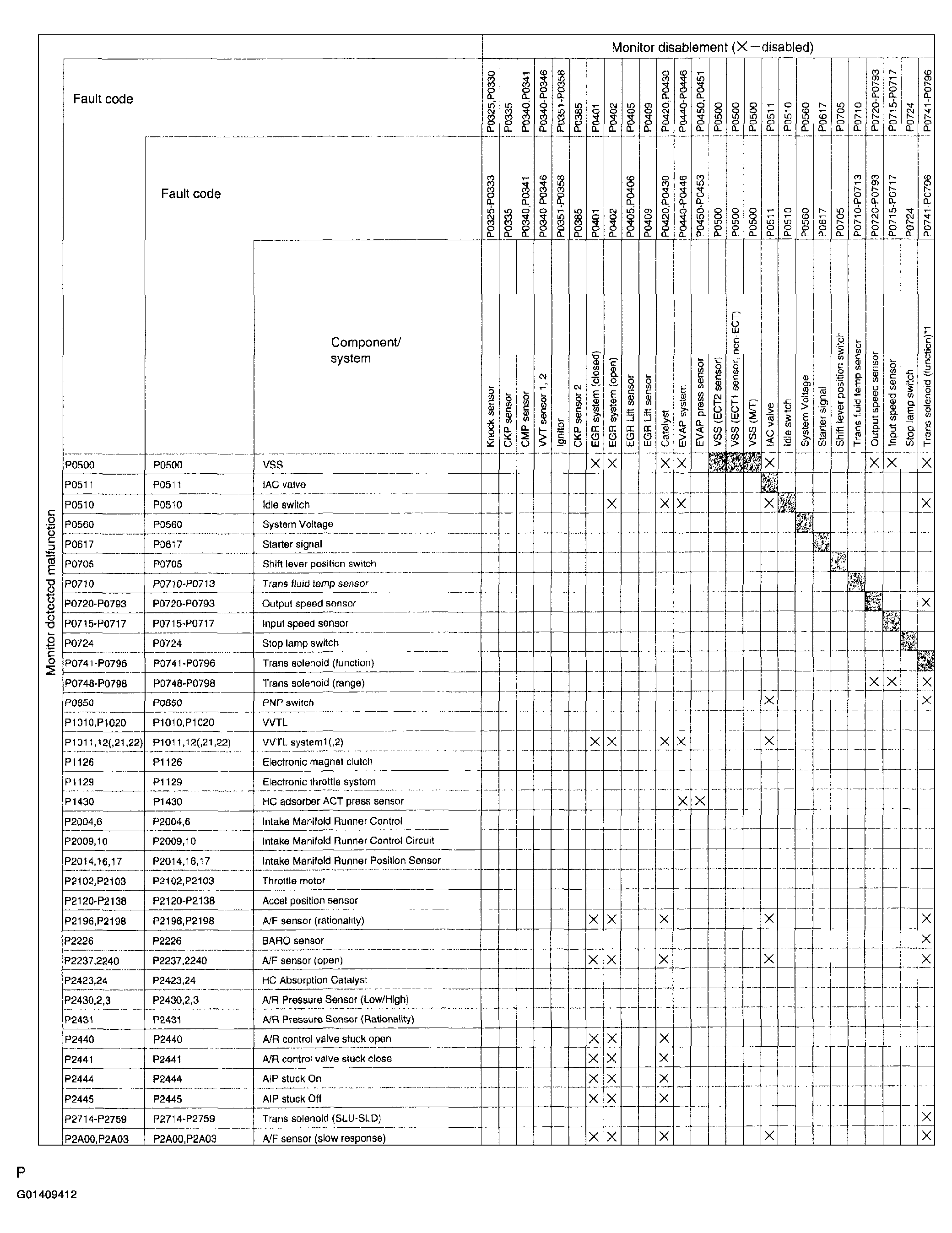

Fig 3: Identifying ECM Monitoring Status (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

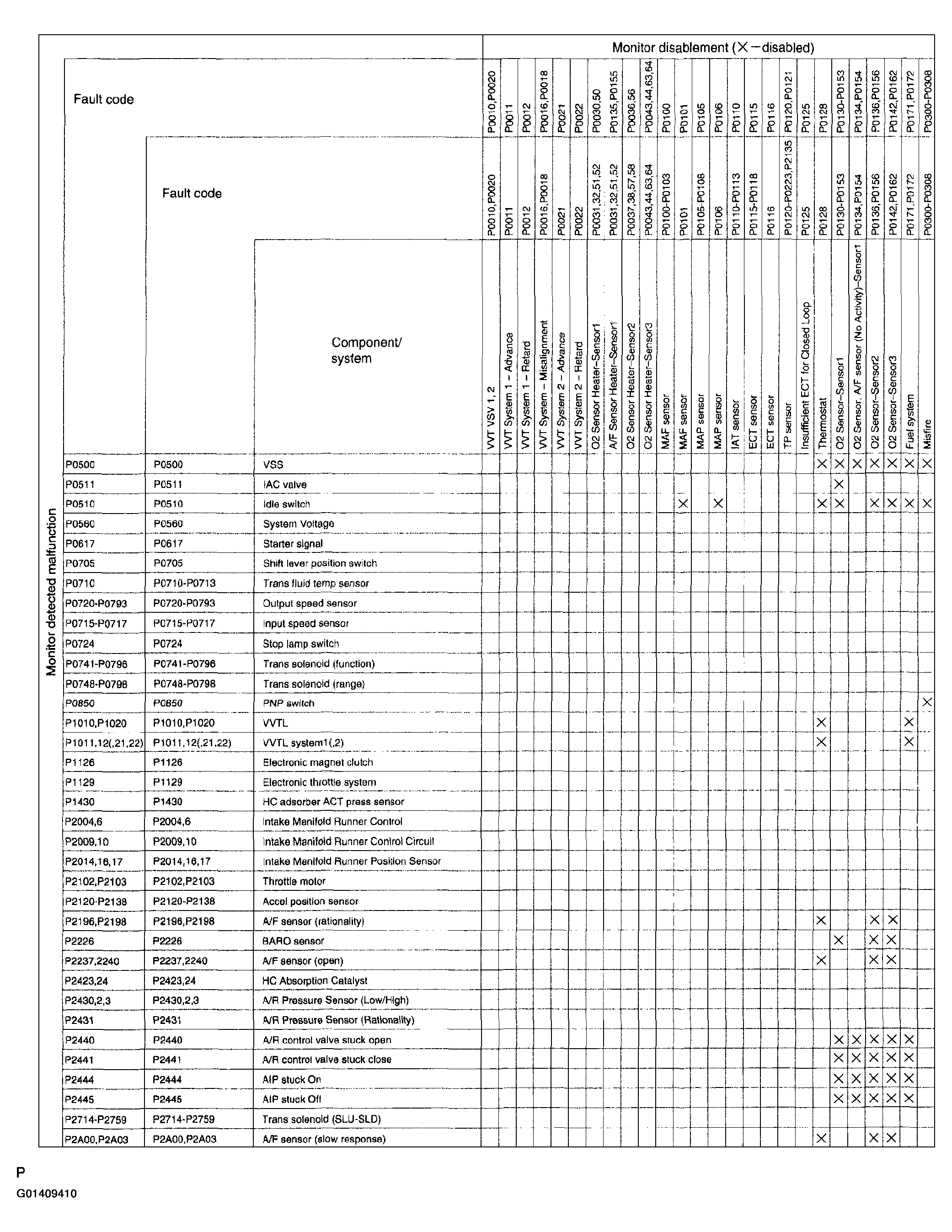

Fig 4: Identifying ECM Monitoring Status (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

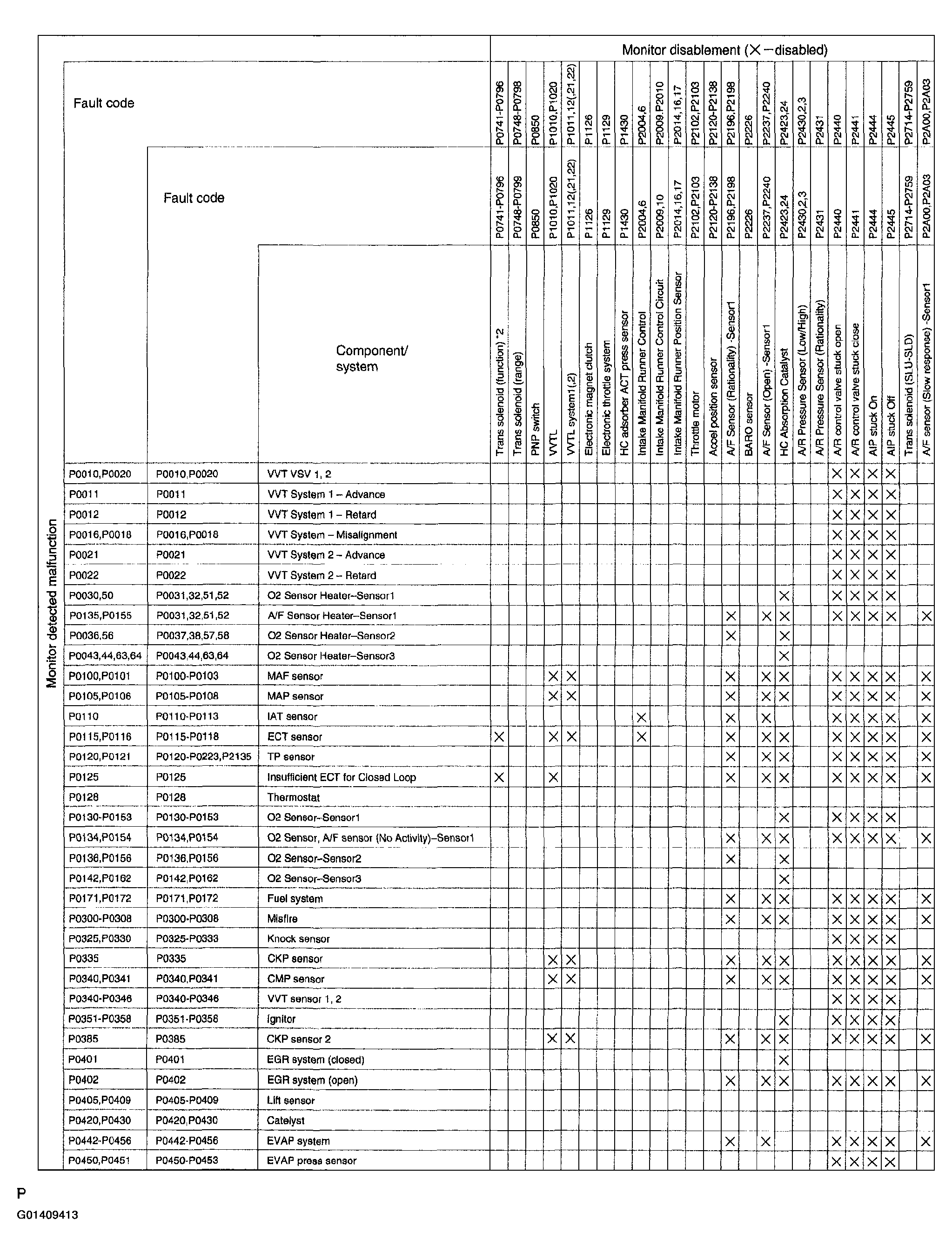

Fig 5: Identifying ECM Monitoring Status (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

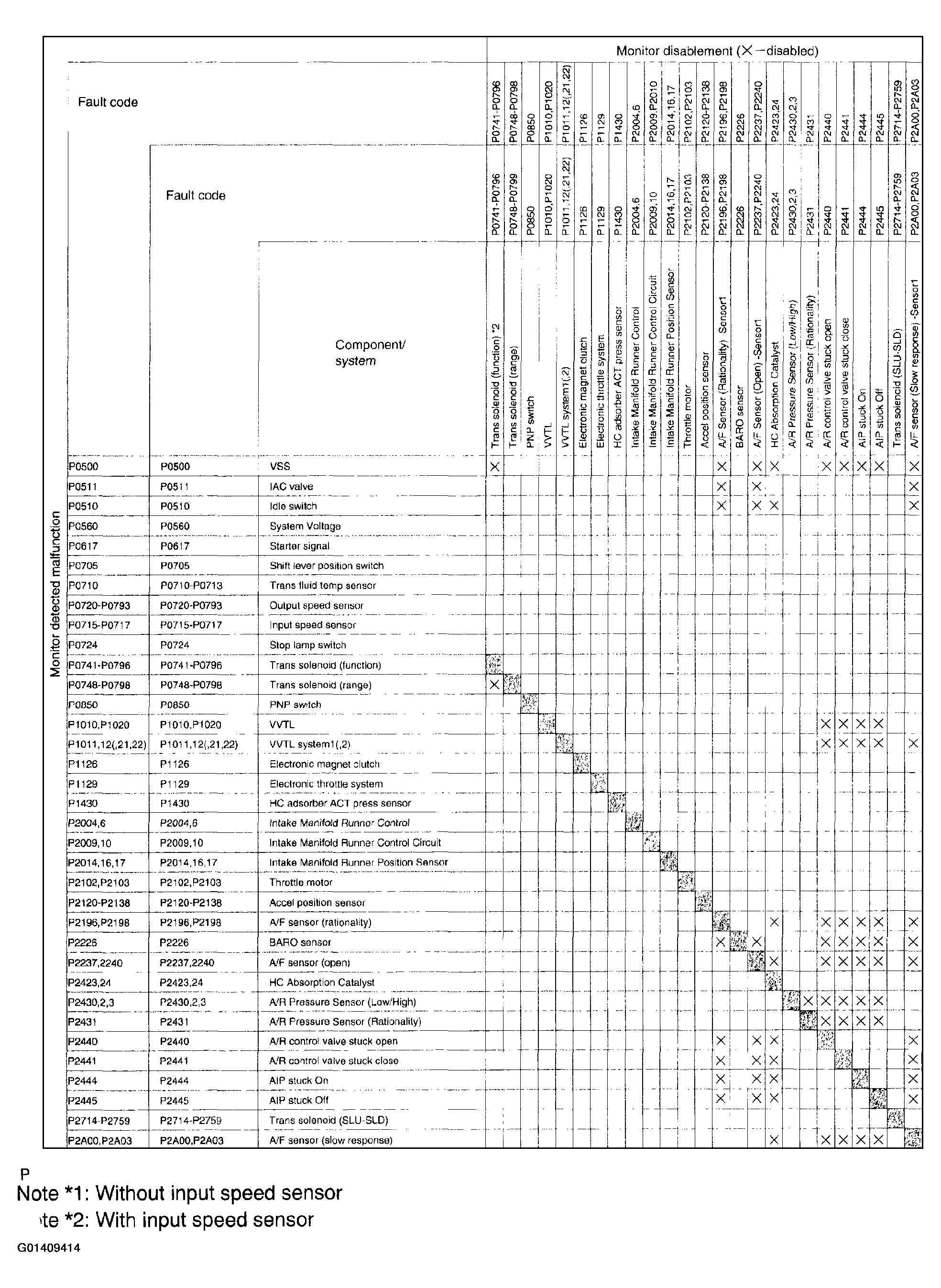

Fig 6: Identifying ECM Monitoring Status (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
