Waveform 12

Knock sensor

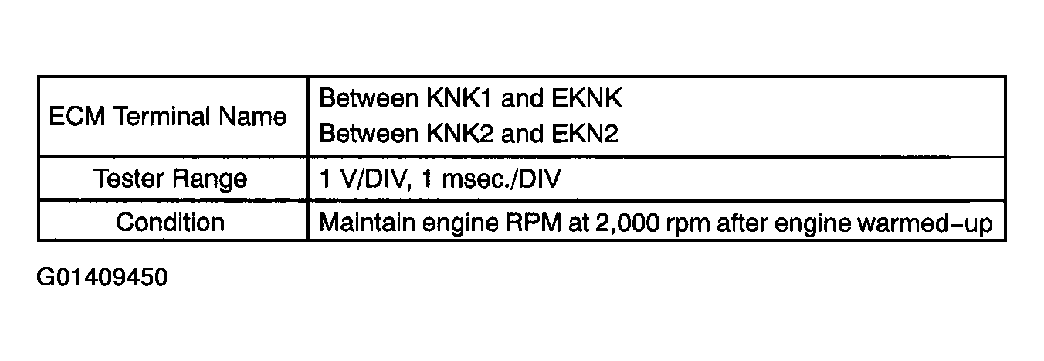

Fig 1: Terminal Voltage Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• The wavelength becomes shorter as engine RPM increases.
• The waveforms and amplitudes displayed differ slightly depending on the vehicle.

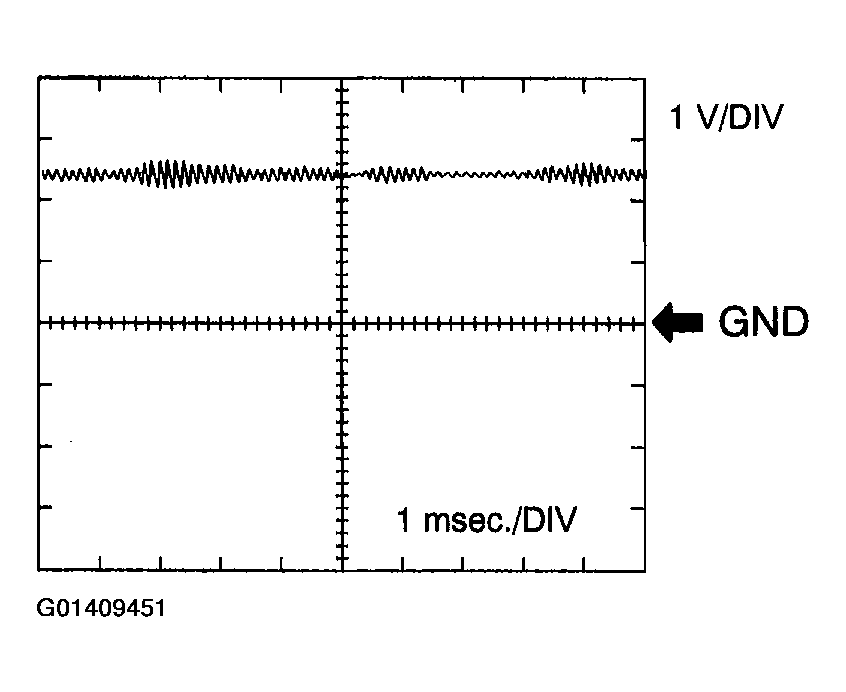

  Fig 2: Identifying Waveform 12

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
