Waveform 13

Cooling fan

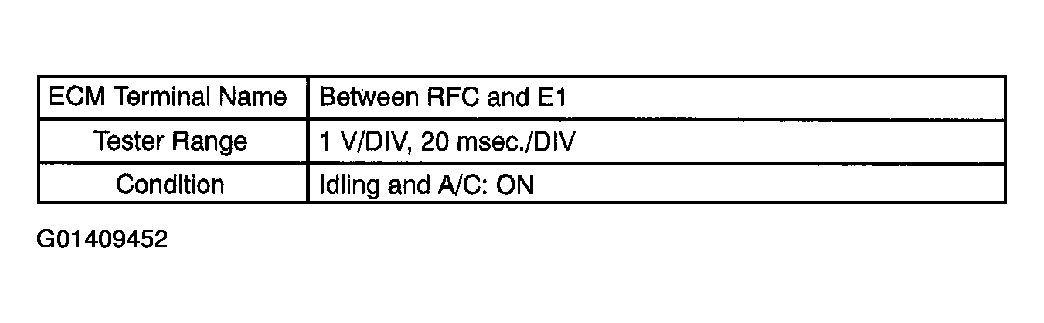

Fig 1: Terminal Voltage Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The duty ratio (labeled A and B in the illustration) changes depending on the engine coolant temperature.

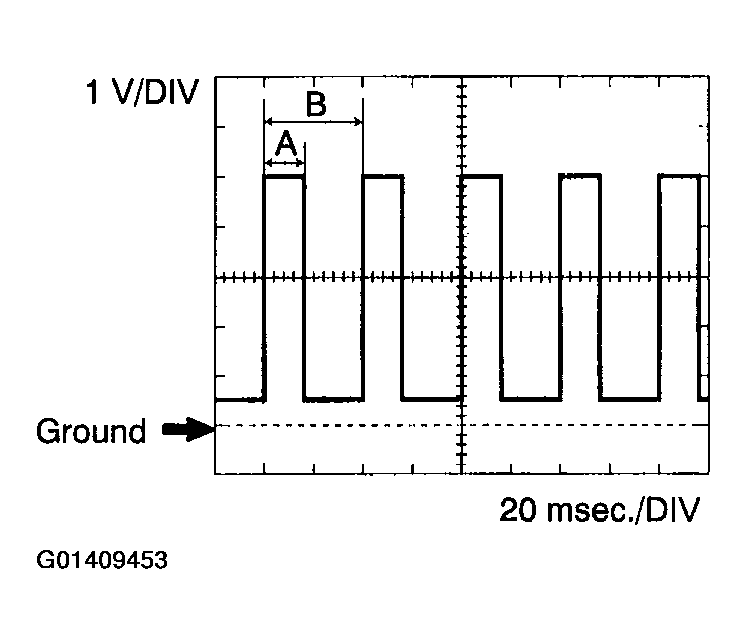

Fig 2: Identifying Waveform 13

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
