Waveform 2

Throttle actuator negative terminal

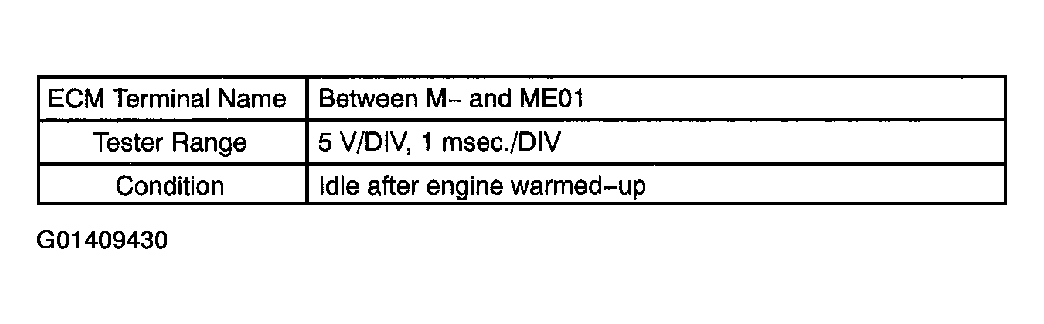

Fig 1: Terminal Voltage Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The duty ratio varies depending on the throttle opening operation.

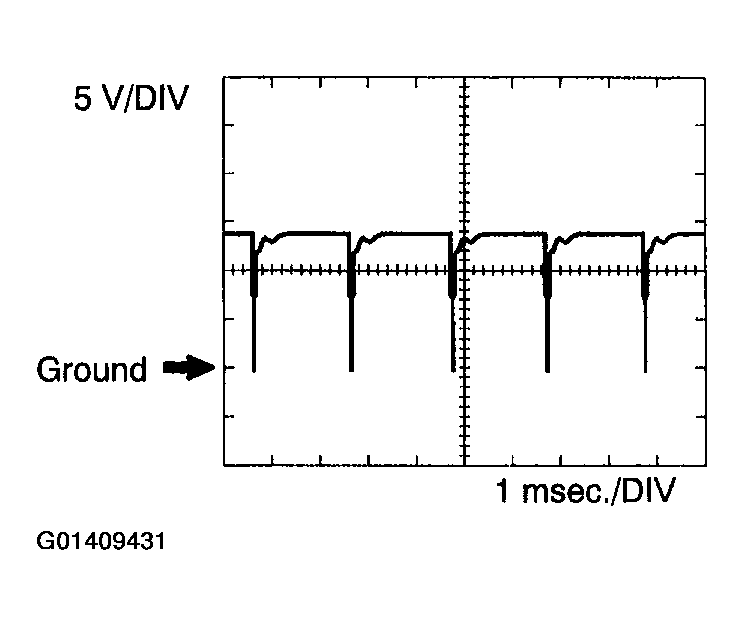

Fig 2: Identifying Waveform 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
