Waveform 4

1. VVT sensor bank 1
2. VVT sensor bank 2
3. CKP sensor

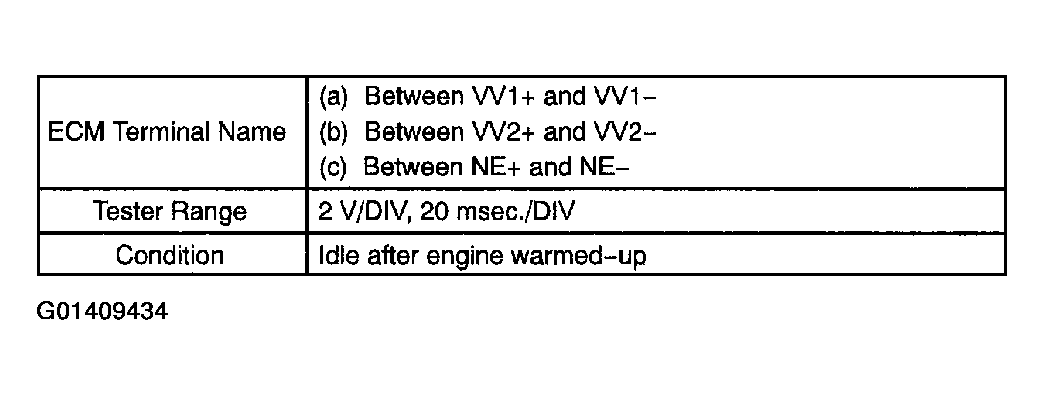

Fig 1: Terminal Voltage Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as engine RPM increases.

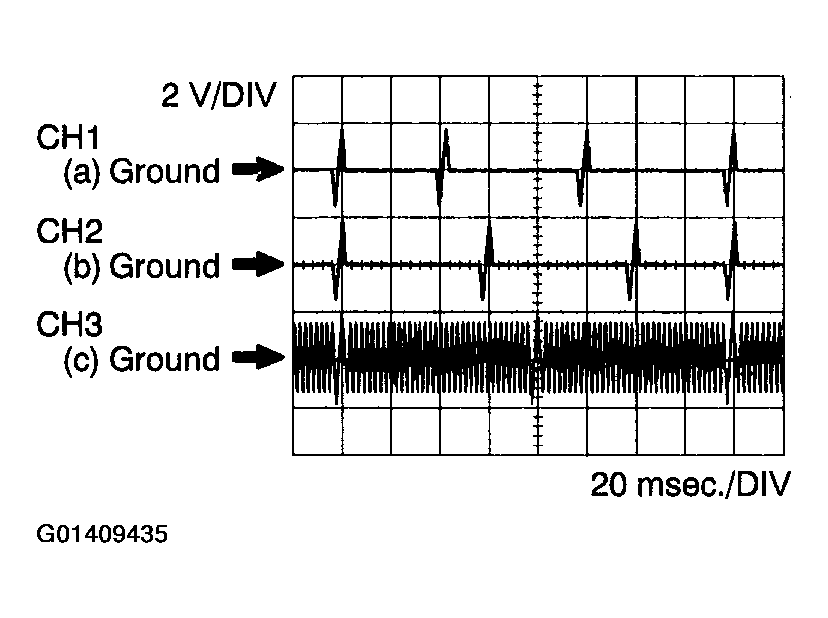

Fig 2: Identifying Waveform 4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
