Waveform 5

Vehicle speed signal

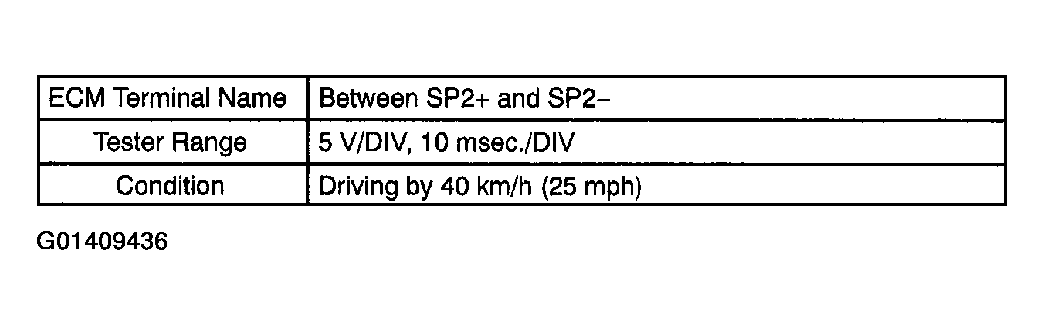

Fig 1: Terminal Voltage Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as vehicle speed increases.

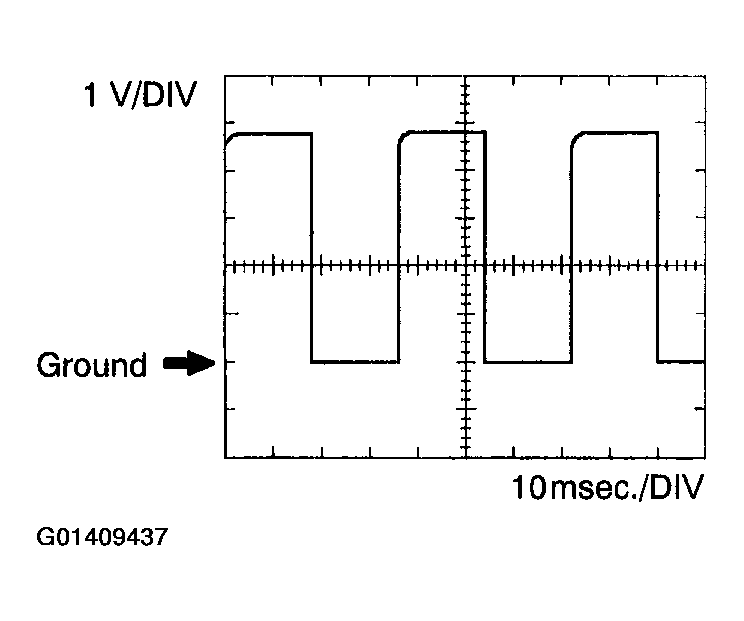

Fig 2: Identifying Waveform 5

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
