Waveform 7

Fuel injector

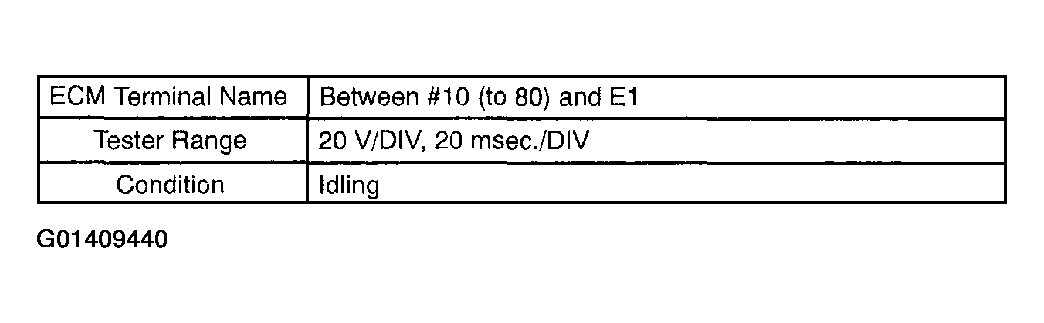

Fig 1: Terminal Voltage Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as engine RPM increases.

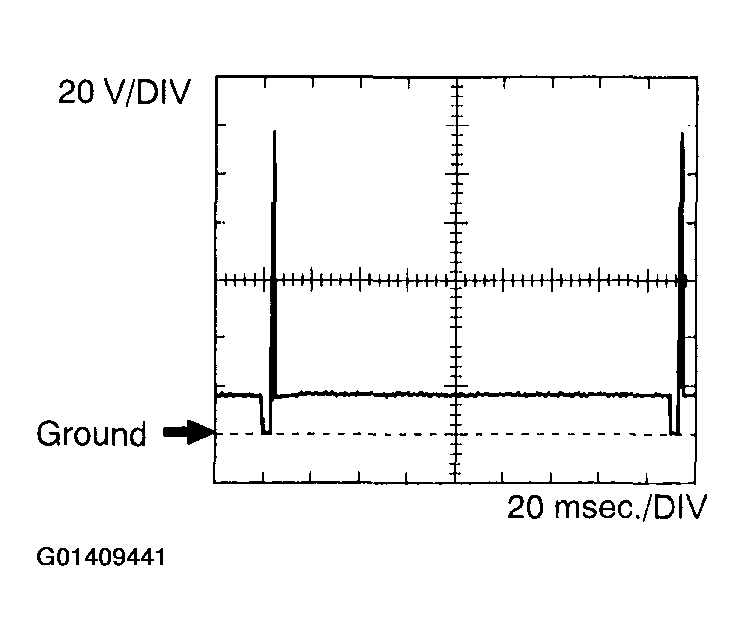

Fig 2: Identifying Waveform 7

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
