Waveform 8

EVAP VSV

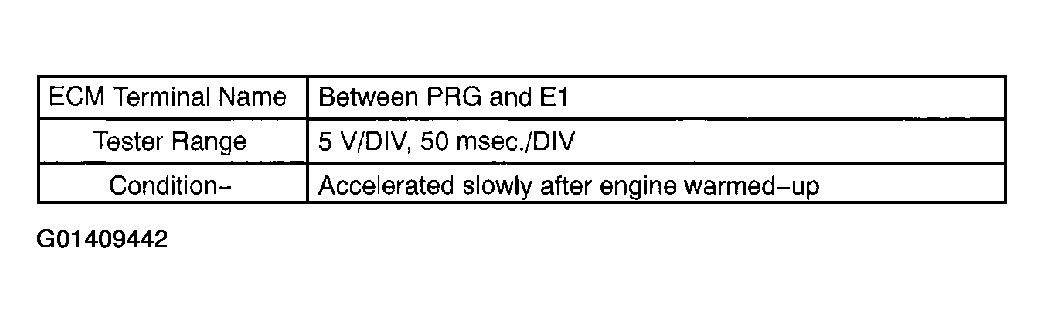

Fig 1: Terminal Voltage Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

In cases where the EVAP VSV can be used to purge EVAP, the waveform will not be displayed as shown on the left. In the DATA LIST, the item EVAP PURGE VSV shows the duty ratio of voltage flowing to the purge valve.

Duty ratio for EVAP VSV (%) = A/B x 100

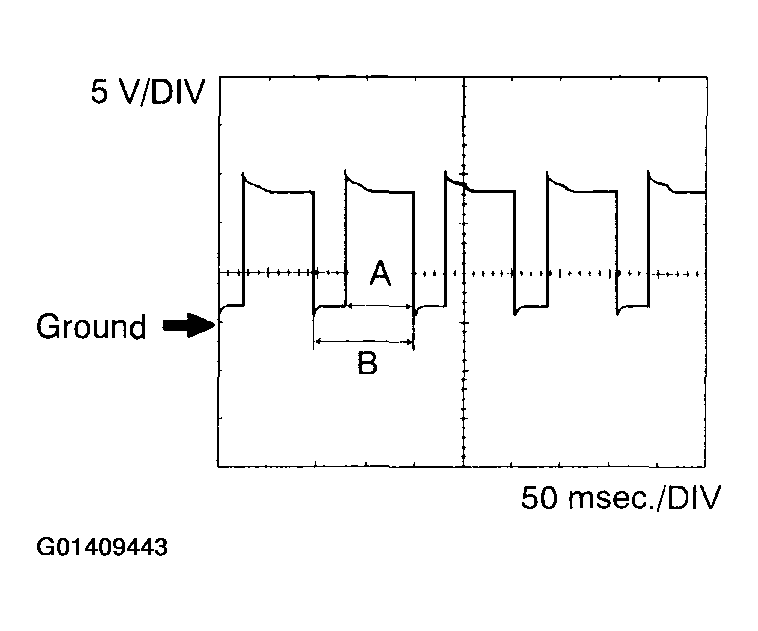

Fig 2: Identifying Waveform 8

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
