Waveform 9

VVT OCV

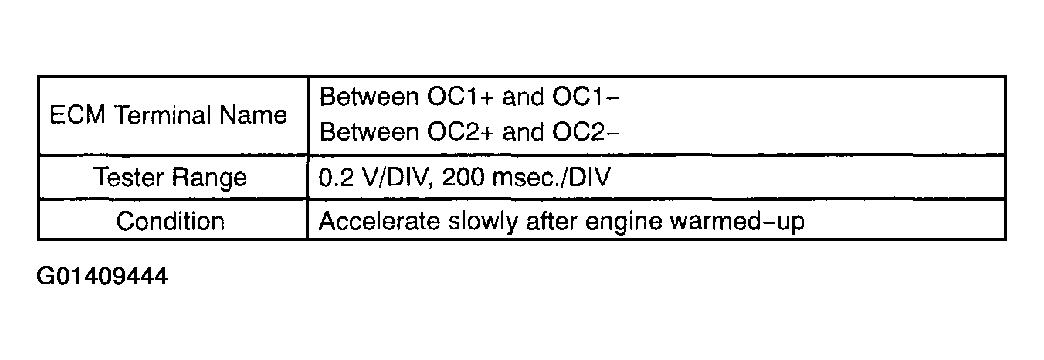

Fig 1: Terminal Voltage Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

In the DATA LIST, the items VVT OCV DUTY B1 and B2 show the duty ratio of voltage flowing to the OCV (see illustration on left).

VVT OCV DUTY B1, B2 = A/B x 100 (%)

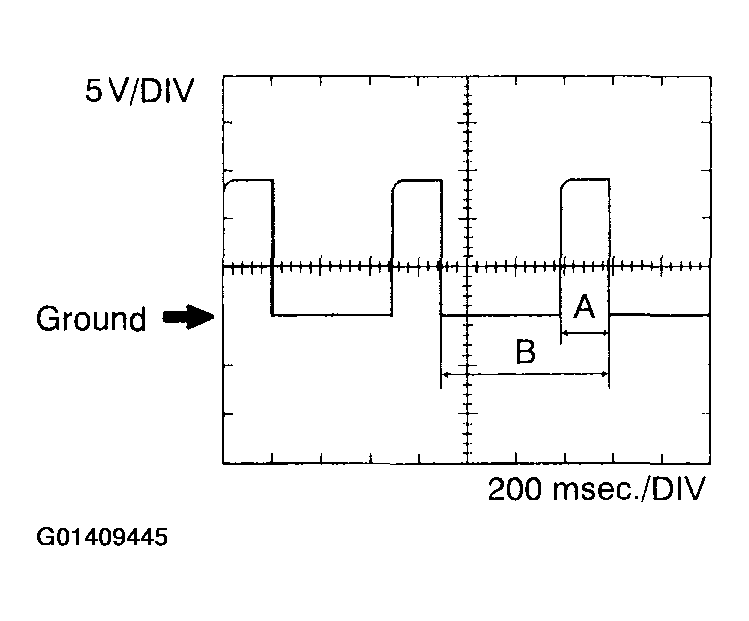

Fig 2: Identifying Waveform 9

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
