Notices When Using Drum Tester

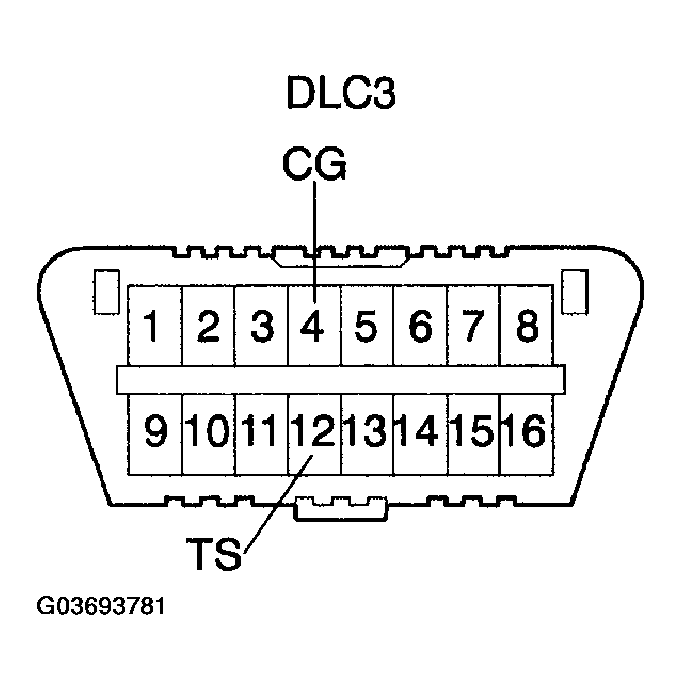

- Before beginning testing, disable the Vehicle Skid Control system (VSC). To disable the VSC, turn the ignition switch OFF and connect SST to terminals TS and CG of the DLC3.
SST 09843-18040
NOTE:- Confirm that the VSC warning lamp blinks.
- VSC system will be reset when the engine is started.
- For safety, secure the vehicle with restraint chains while using a wheel dynamometer.
