Front Seat Belt With PRETENSIONER: Components

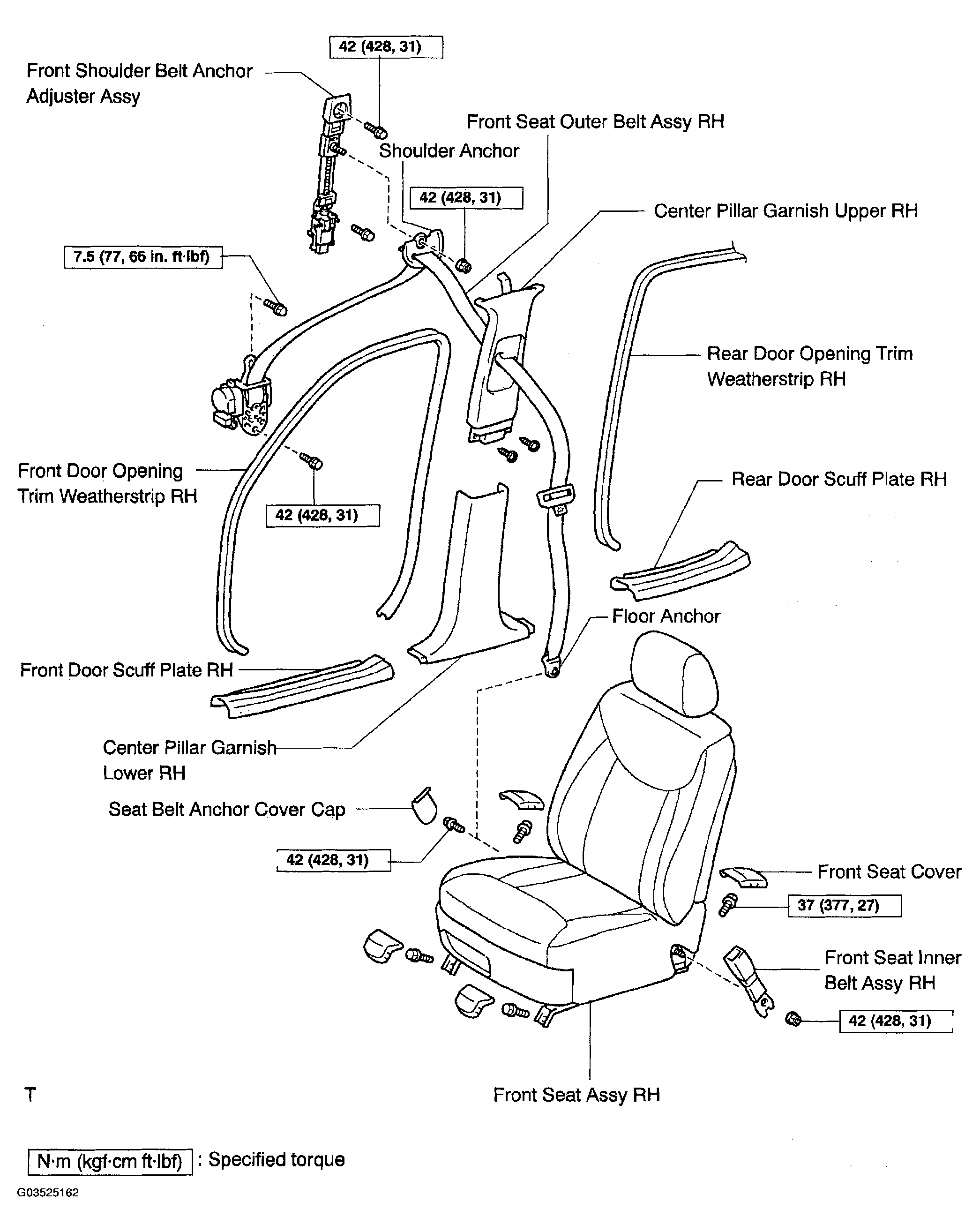

Fig 1: Exploded View Of Front Seat Belt Components And Torque Specifications
G03525162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
