Power Shoulder Belt Anchorage System: Location

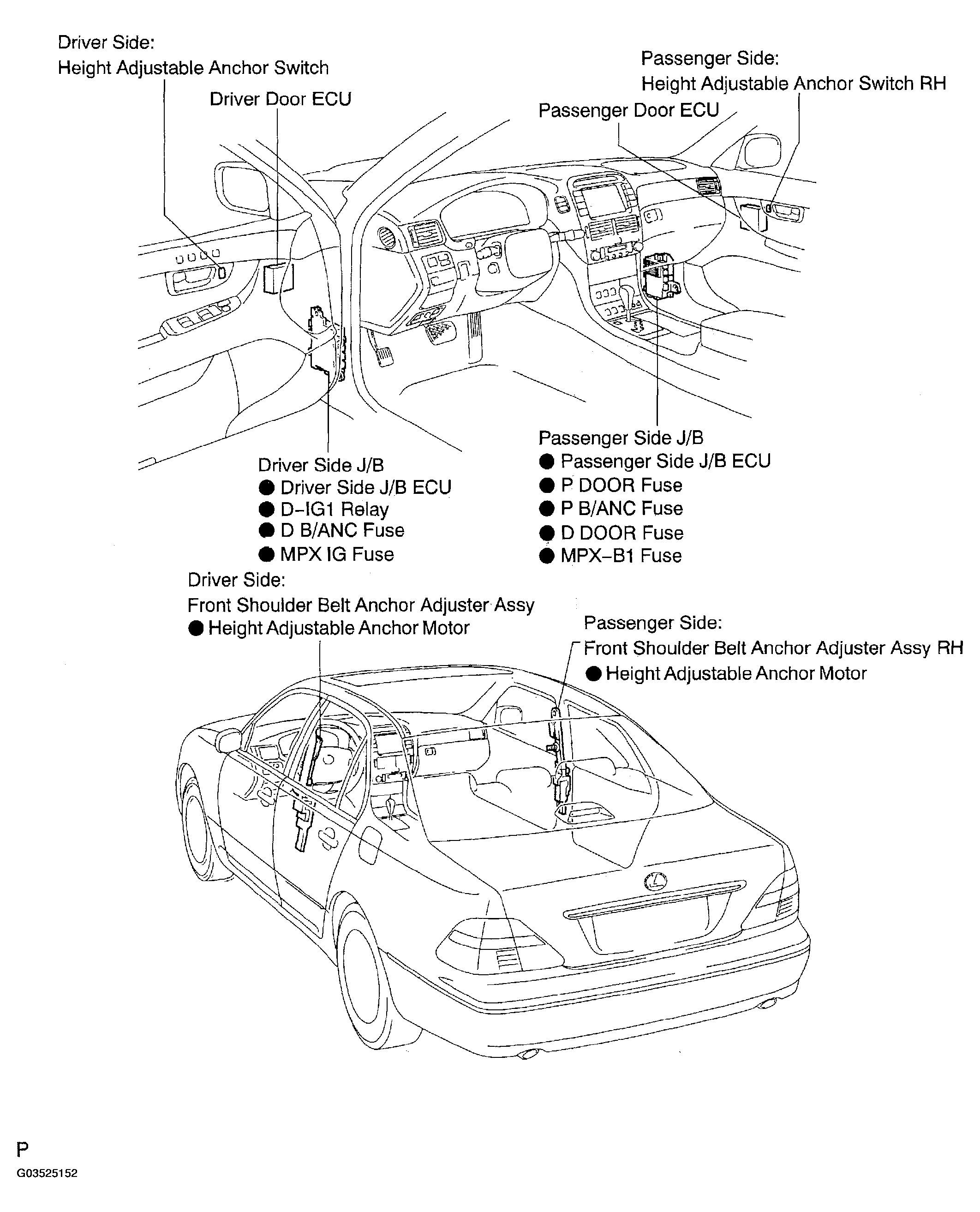

Fig 1: Locating Power Shoulder Belt Anchorage System Components Position
G03525152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
