Seat Belt Warning System: Location

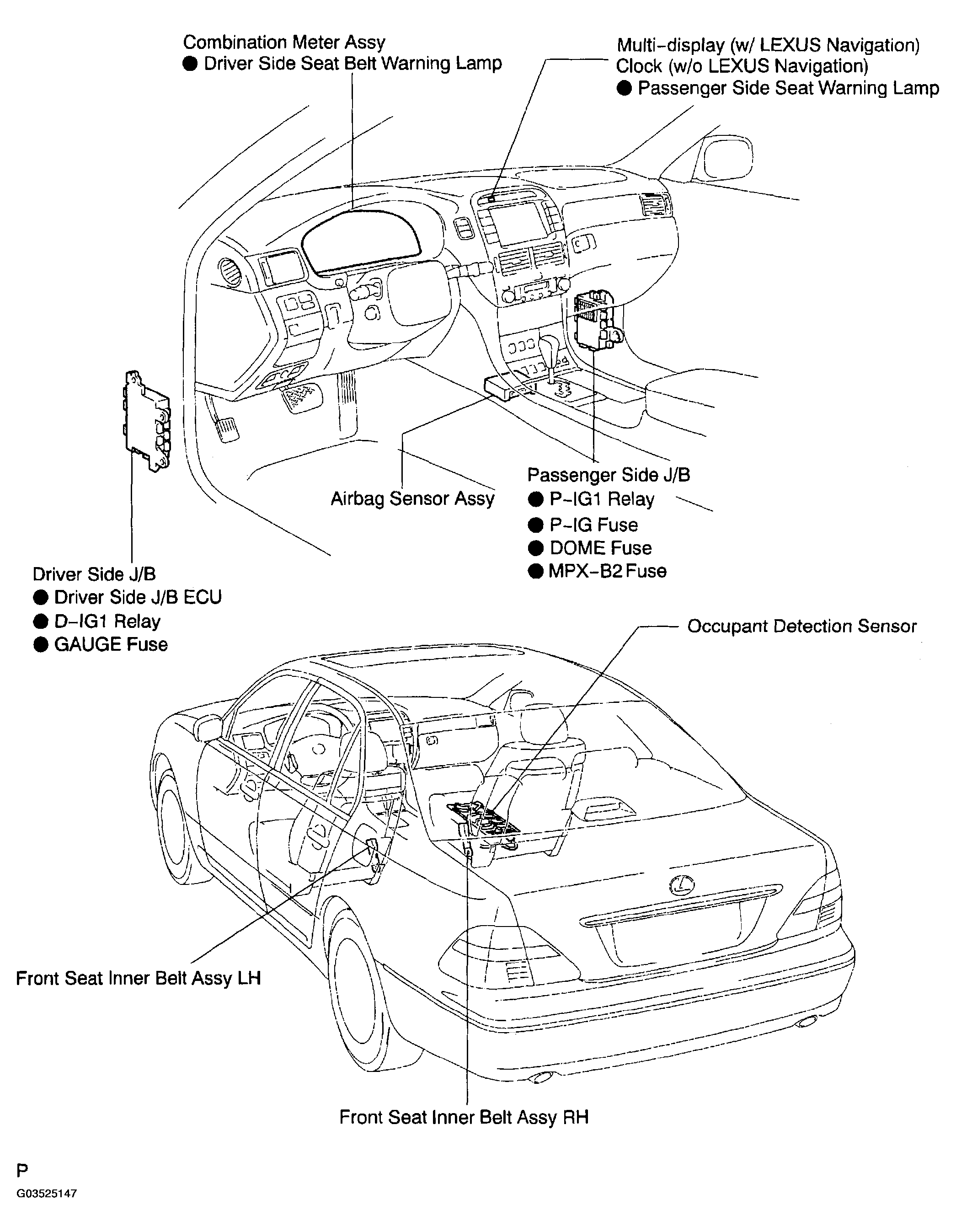

Fig 1: Locating Seat Belt Warning System Components Position
G03525147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
