Transmission Revolution Sensor: Replacement

  1. REMOVE TRANSMISSION REVOLUTION SENSOR (NC0 SENSOR)
    1. Disconnect the transmission revolution sensor connector.
    2. Remove the bolt and transmission revolution sensor.
    3. Remove the O-ring from the transmission revolution sensor.

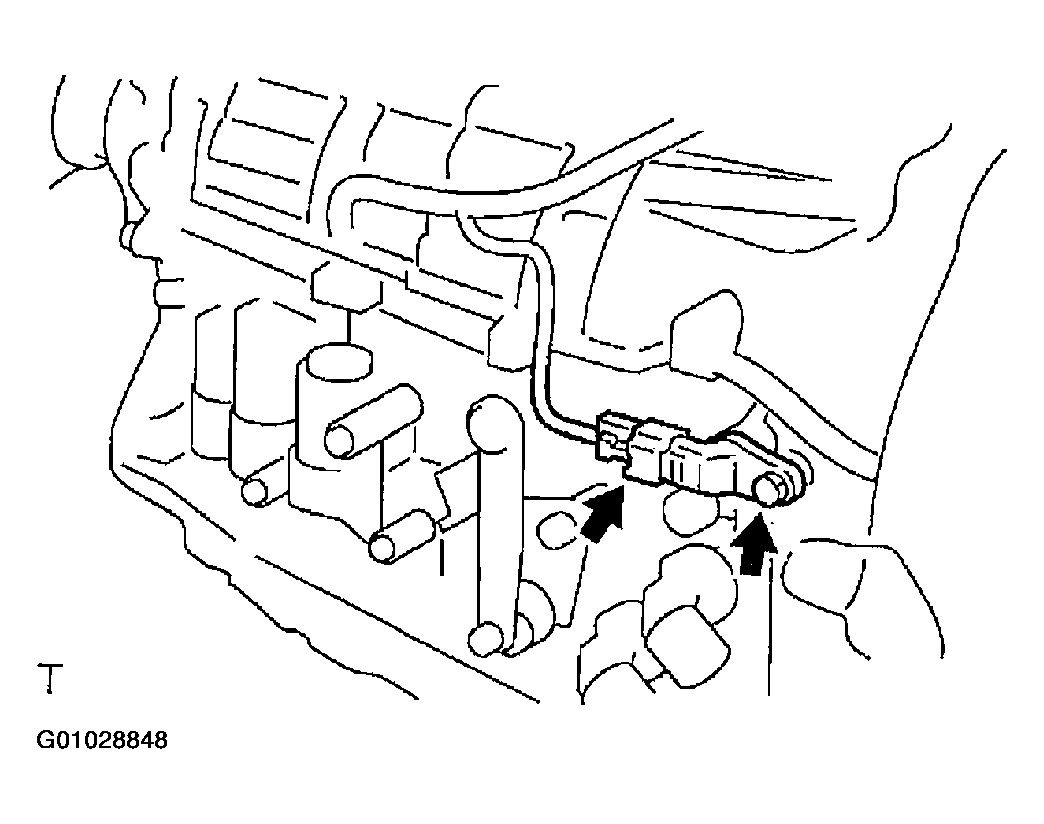

      Fig 1: Disconnecting Transmission Revolution Sensor Connector
      G01028848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2 SENSOR)
    1. Disconnect the transmission revolution sensor connector.
    2. Remove the bolt and transmission revolution sensor.
    3. Remove the O-ring from the transmission revolution sensor.

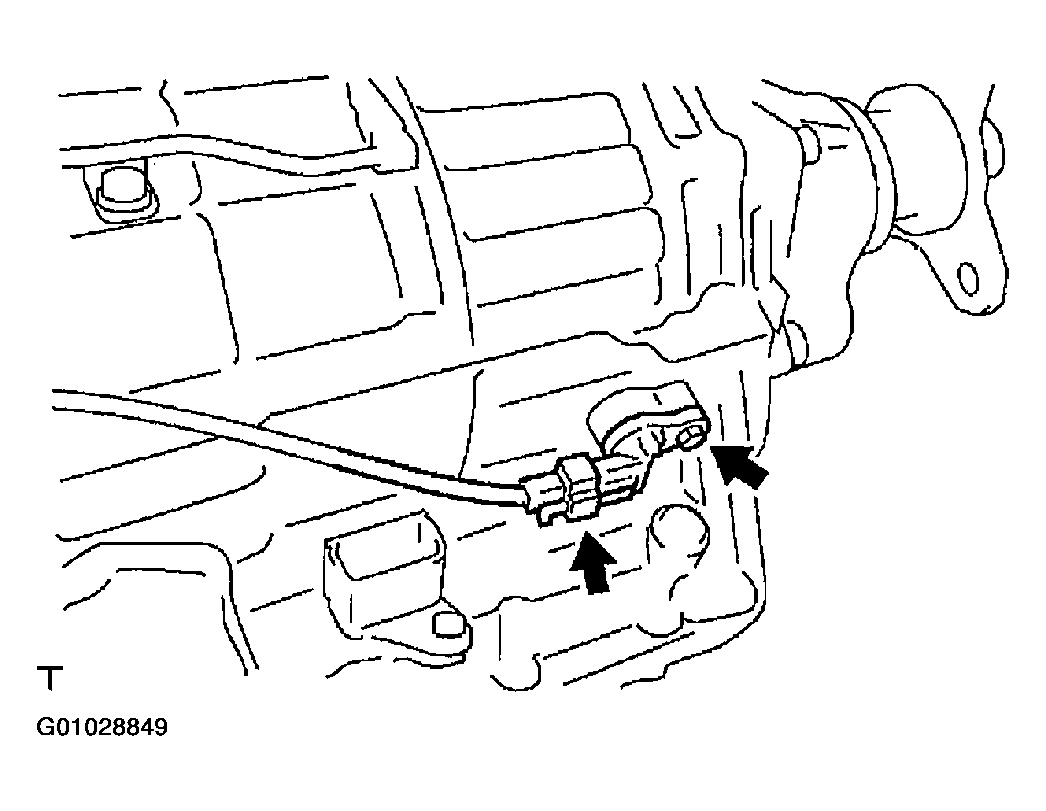

      Fig 2: Disconnecting Transmission Revolution Sensor Connector
      G01028849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL TRANSMISSION REVOLUTION SENSOR (SP2 SENSOR)
    1. Coat a new O-ring with ATF and install it to the transmission revolution sensor.
    2. Install the transmission revolution sensor with the bolt.

      Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

    3. Connect the transmission revolution sensor connector.

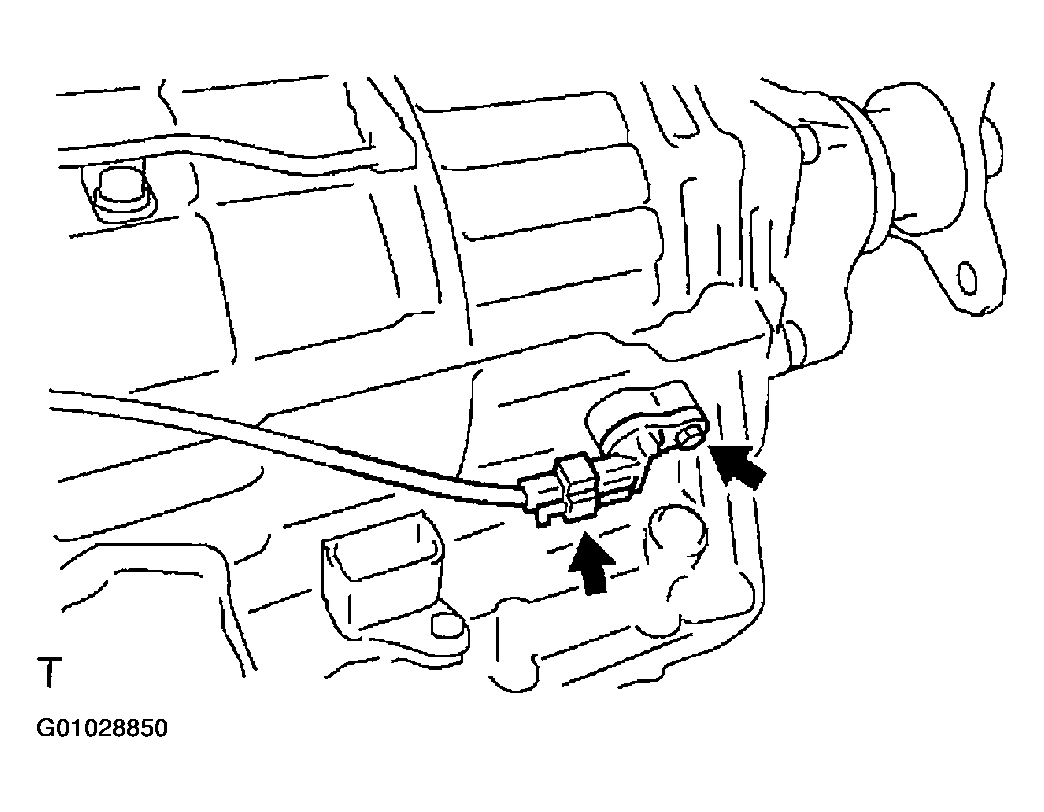

      Fig 3: Connecting Transmission Revolution Sensor Connector
      G01028850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL TRANSMISSION REVOLUTION SENSOR (NC0 SENSOR)
    1. Coat a new O-ring with ATF and install it to the transmission revolution sensor.
    2. Install the transmission revolution sensor with the bolt.

      Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

    3. Connect the transmission revolution sensor connector.

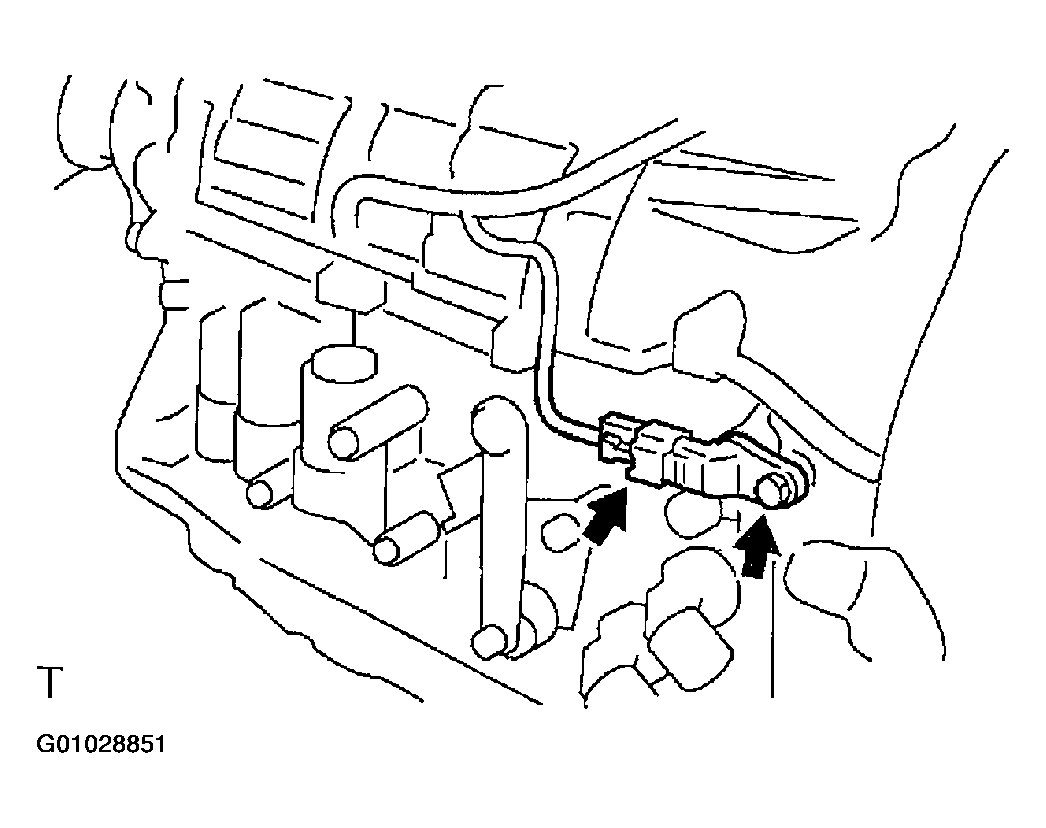

      Fig 4: Installing Transmission Revolution Sensor With Bolt
      G01028851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
