Active Test

ACTIVE TEST






HINT: Performing ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and so on to operate without removing any parts. Performing ACTIVE TEST as a first step of troubleshooting is one of the method to shorten the labor time.

DATA LIST can be displayed during the ACTIVE TEST.
a. Connect the hand-held tester to DLC3.
b. Turn the ignition switch ON.

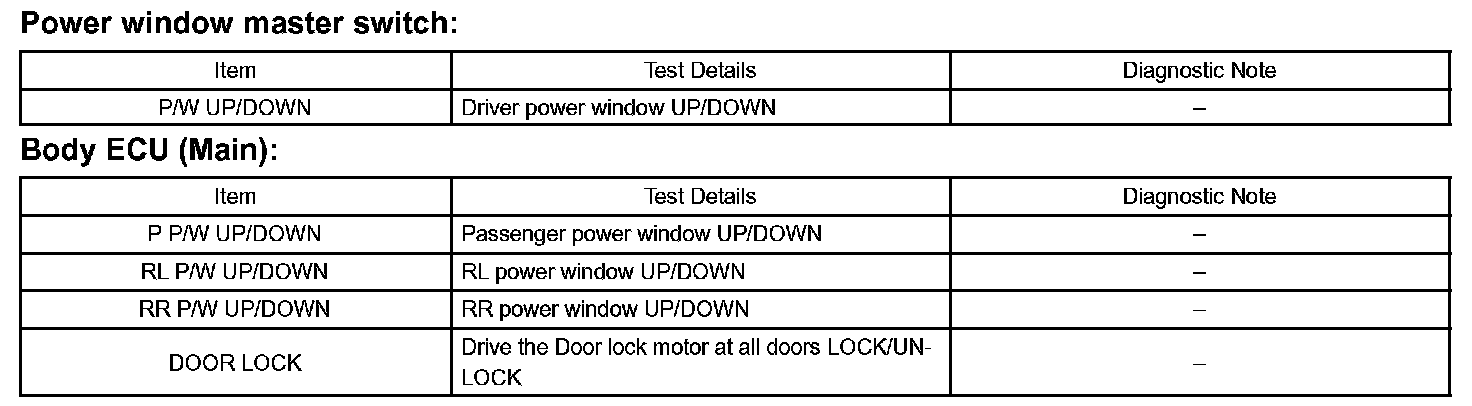

c. According to the display on tester, perform the "ACTIVE TEST".
