Fuse Block

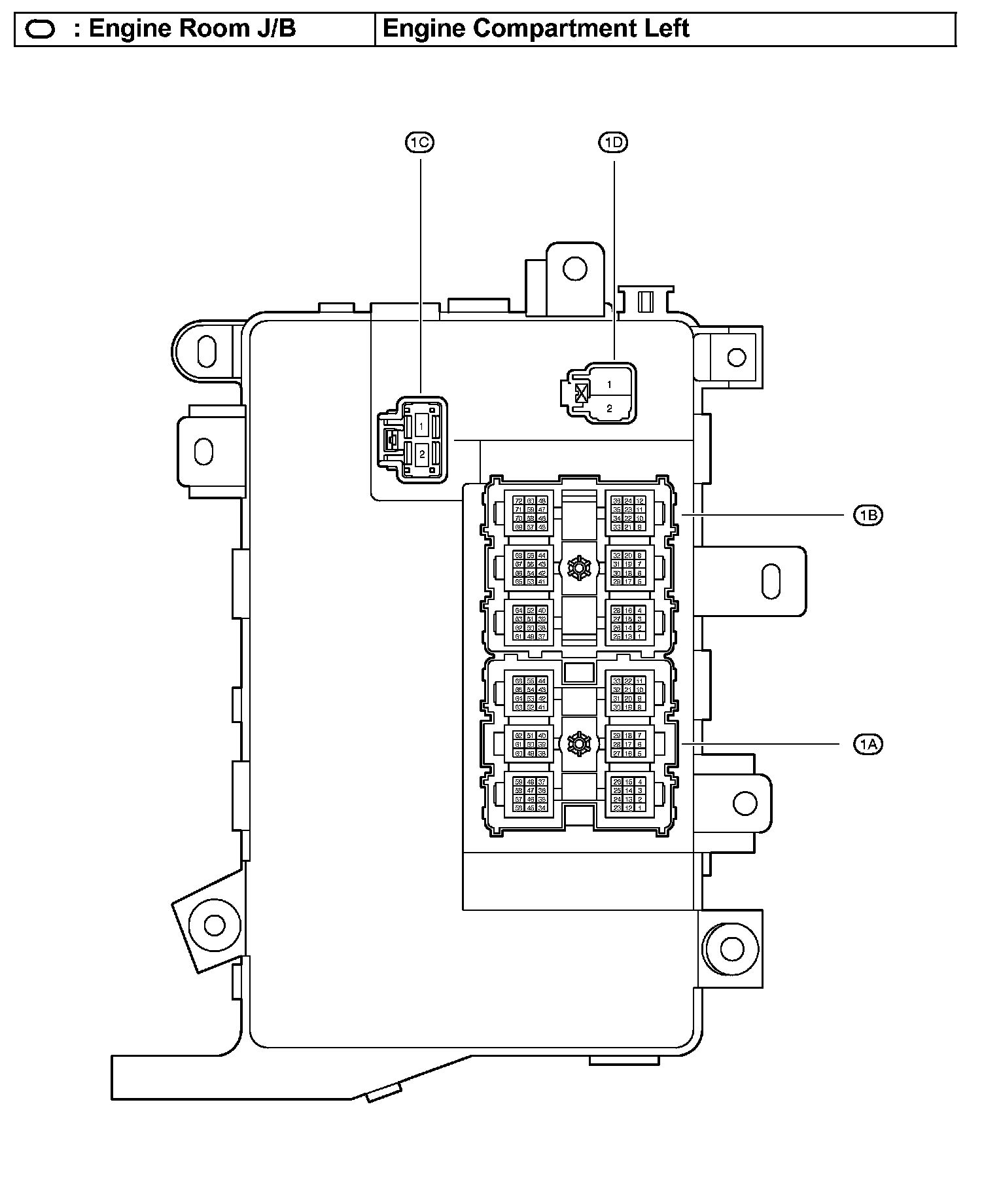

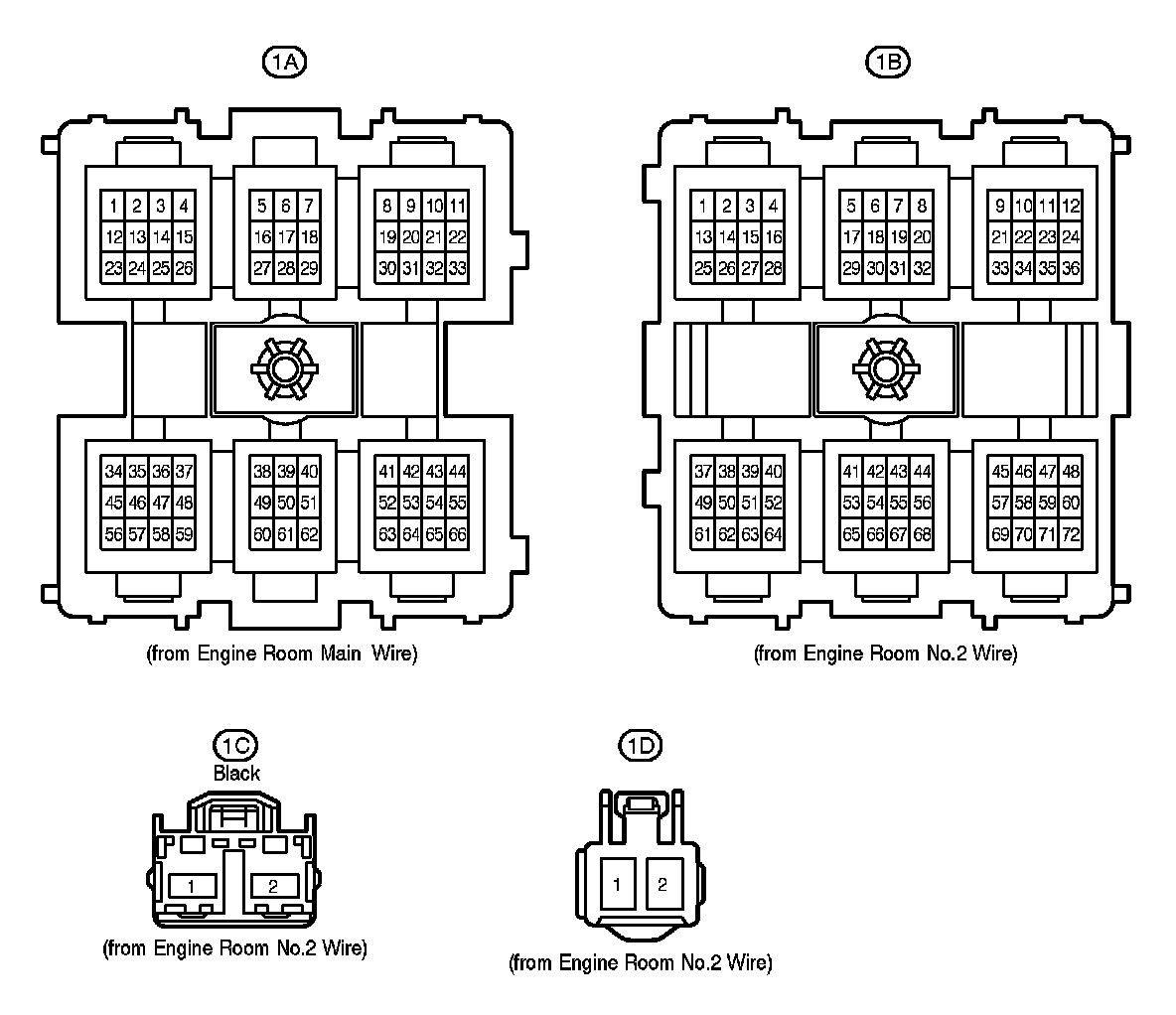

Engine Room J/B - Engine Compartment Left:

Engine Room J/B - Engine Compartment Left:

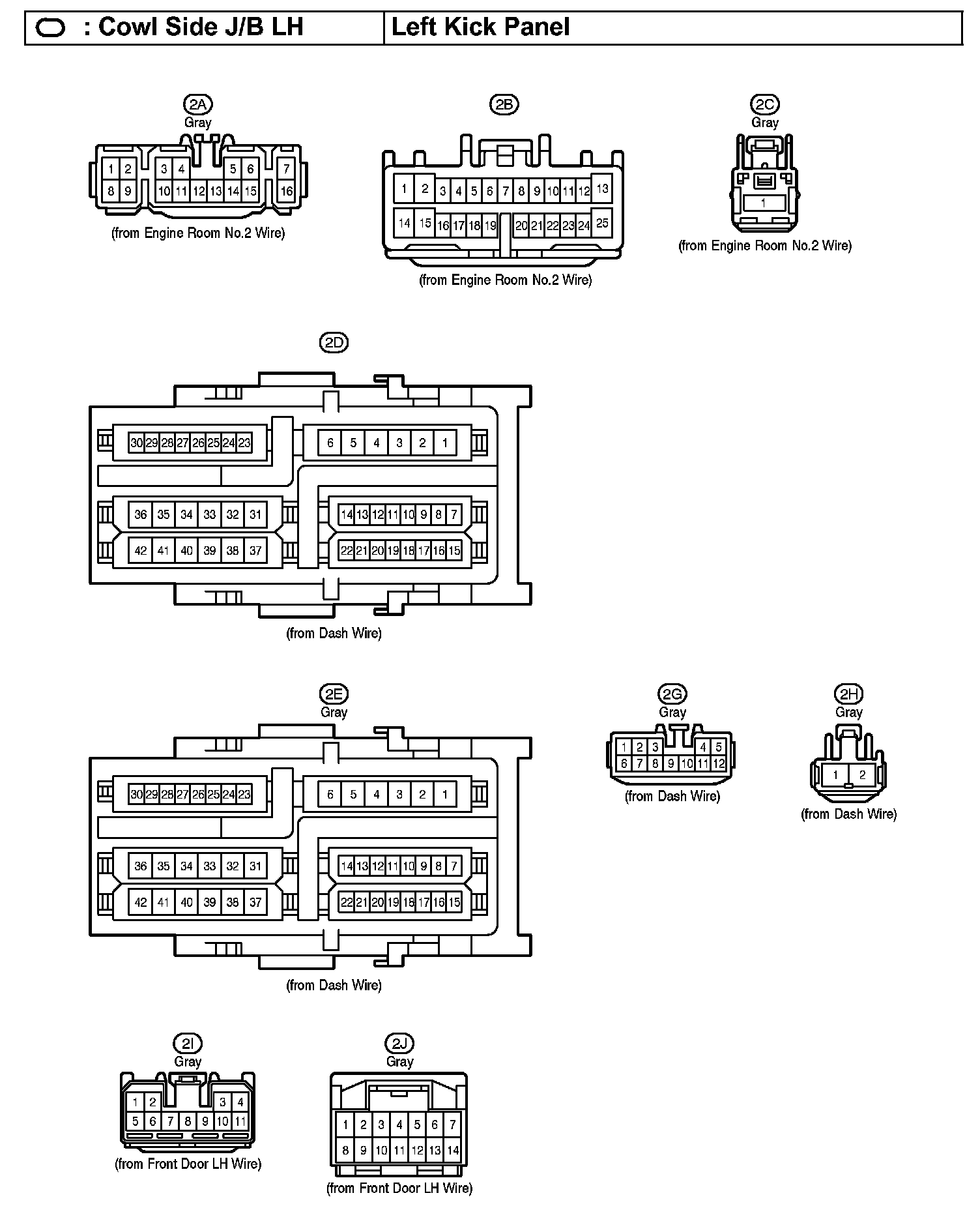

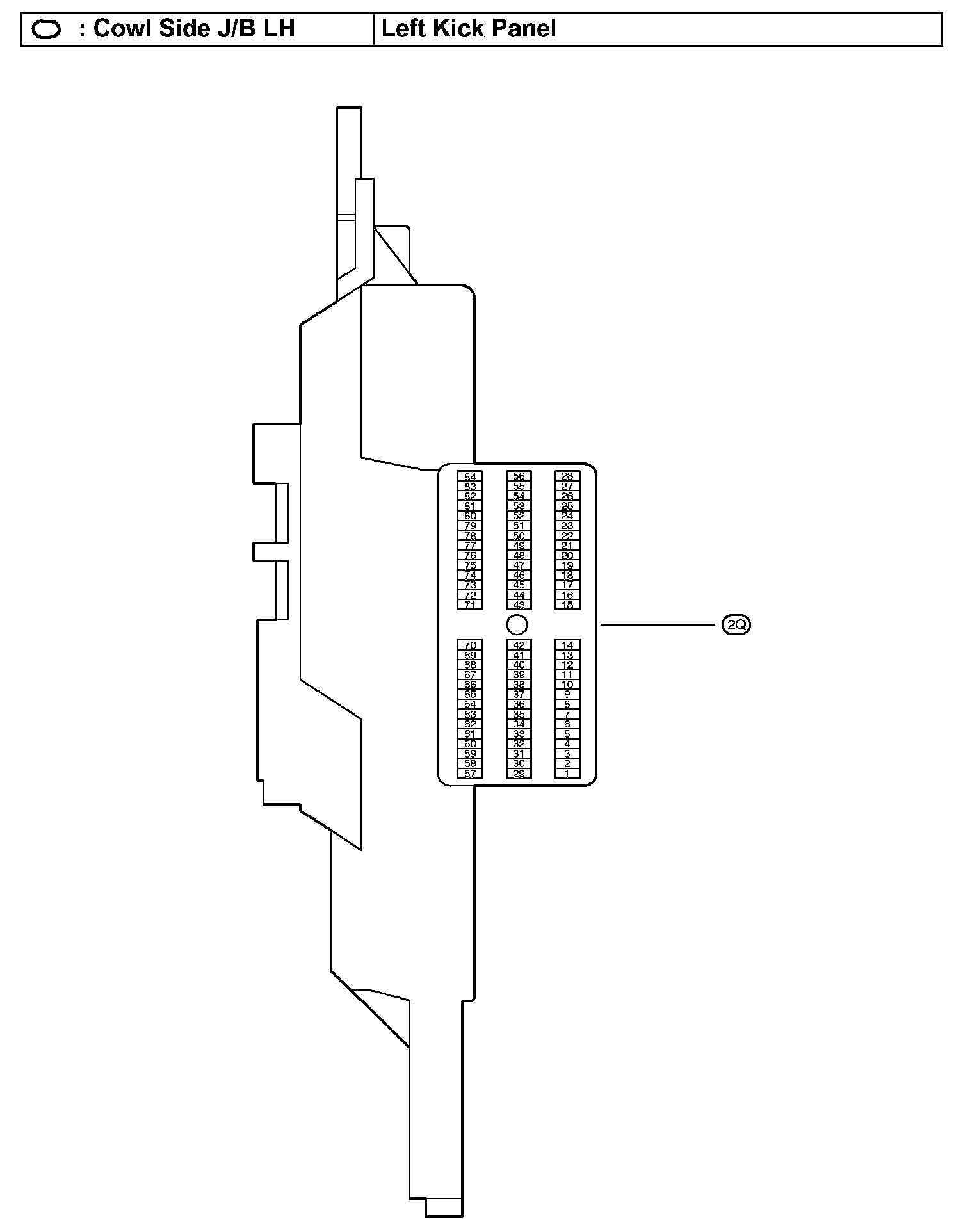

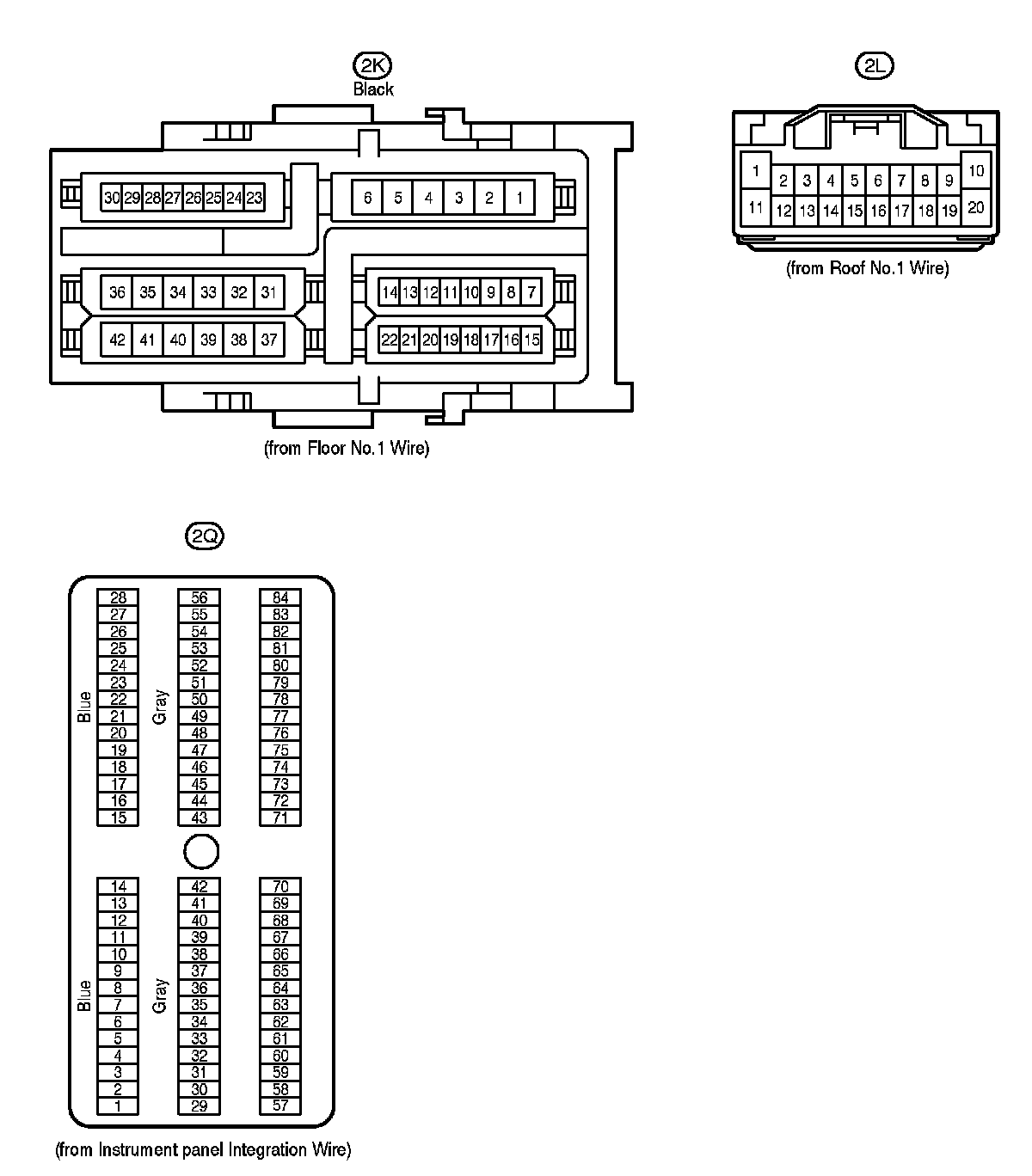

Cowl Side J/B LH - Left Kick Panel:

Cowl Side J/B LH - Left Kick Panel:

Cowl Side J/B LH - Left Kick Panel:

Cowl Side J/B LH - Left Kick Panel:

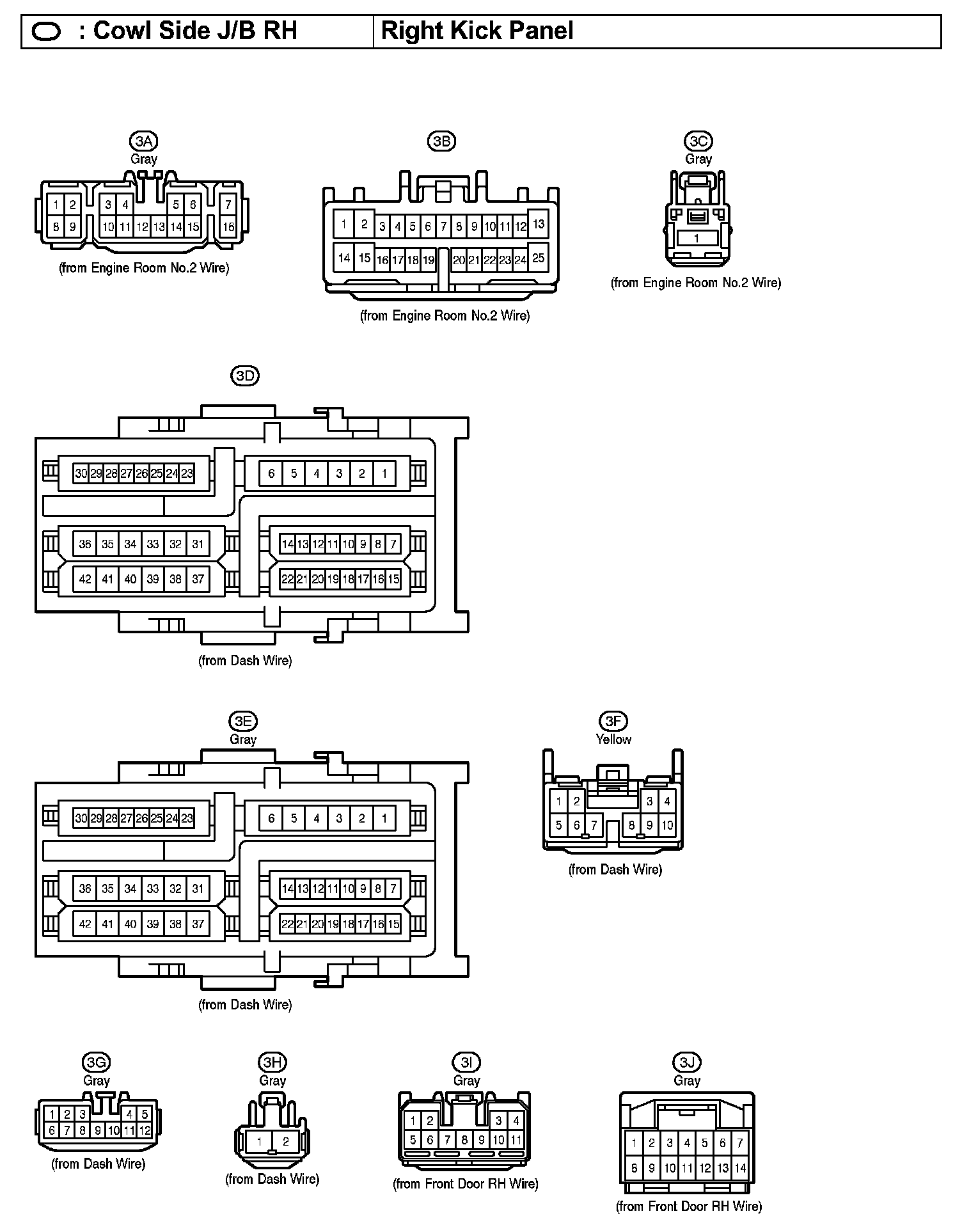

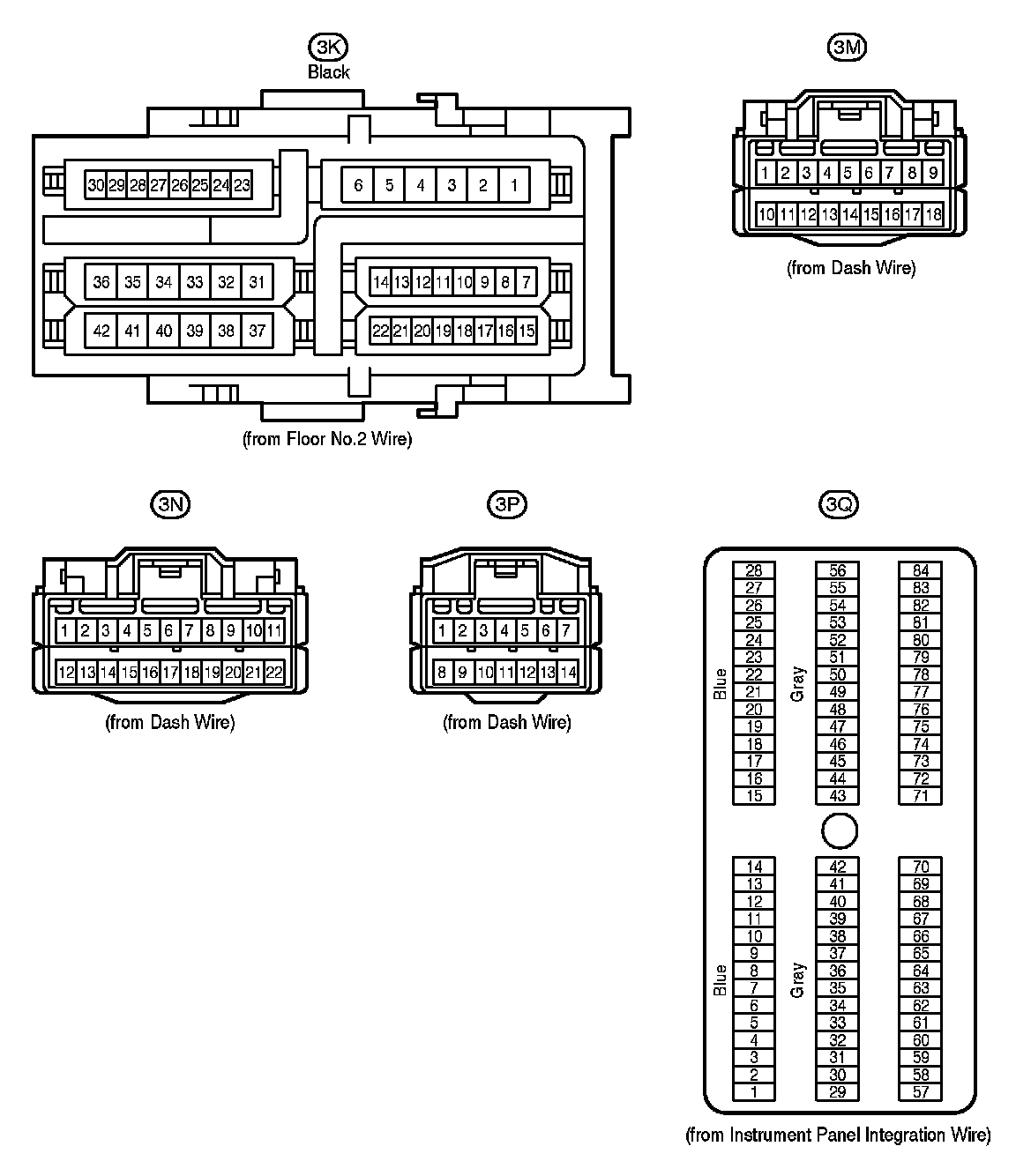

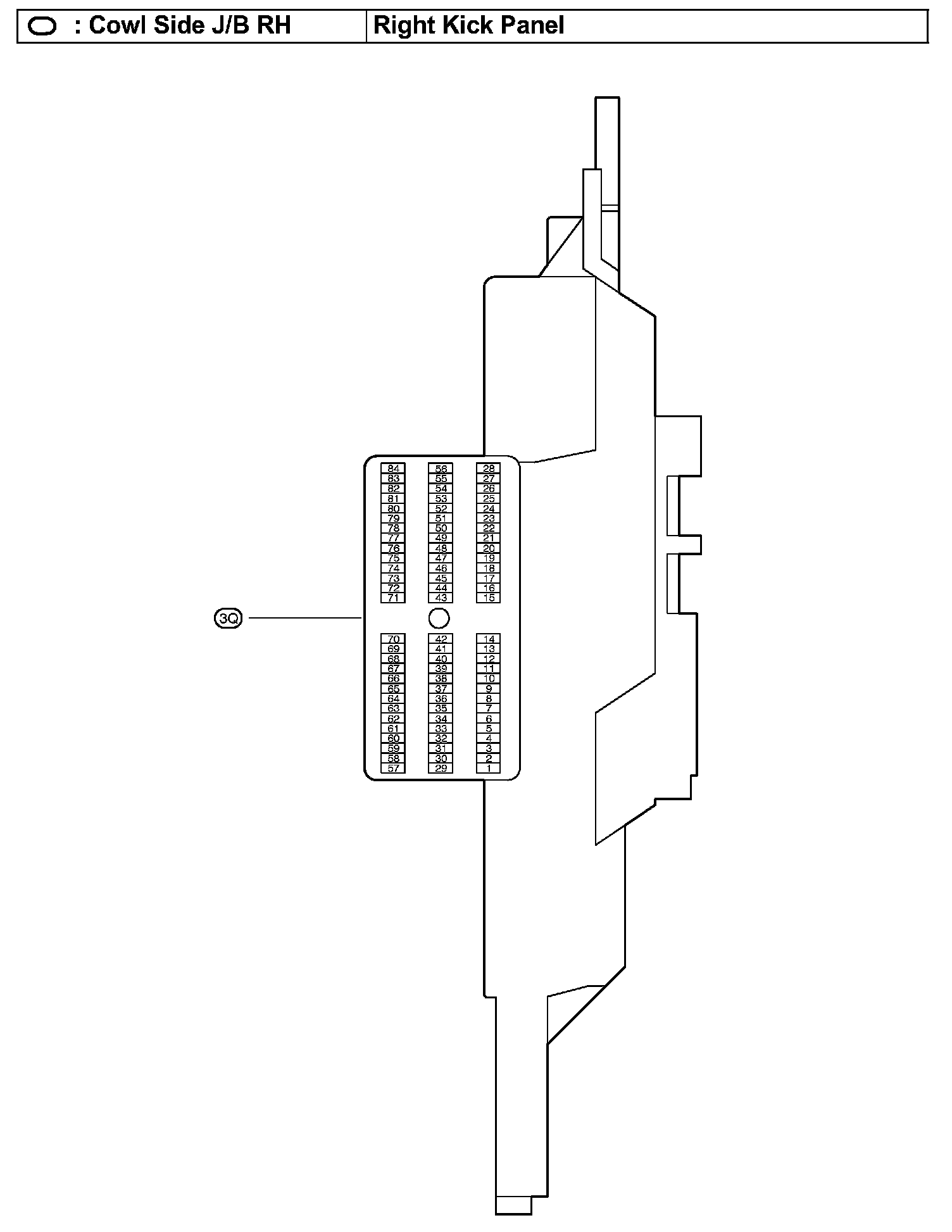

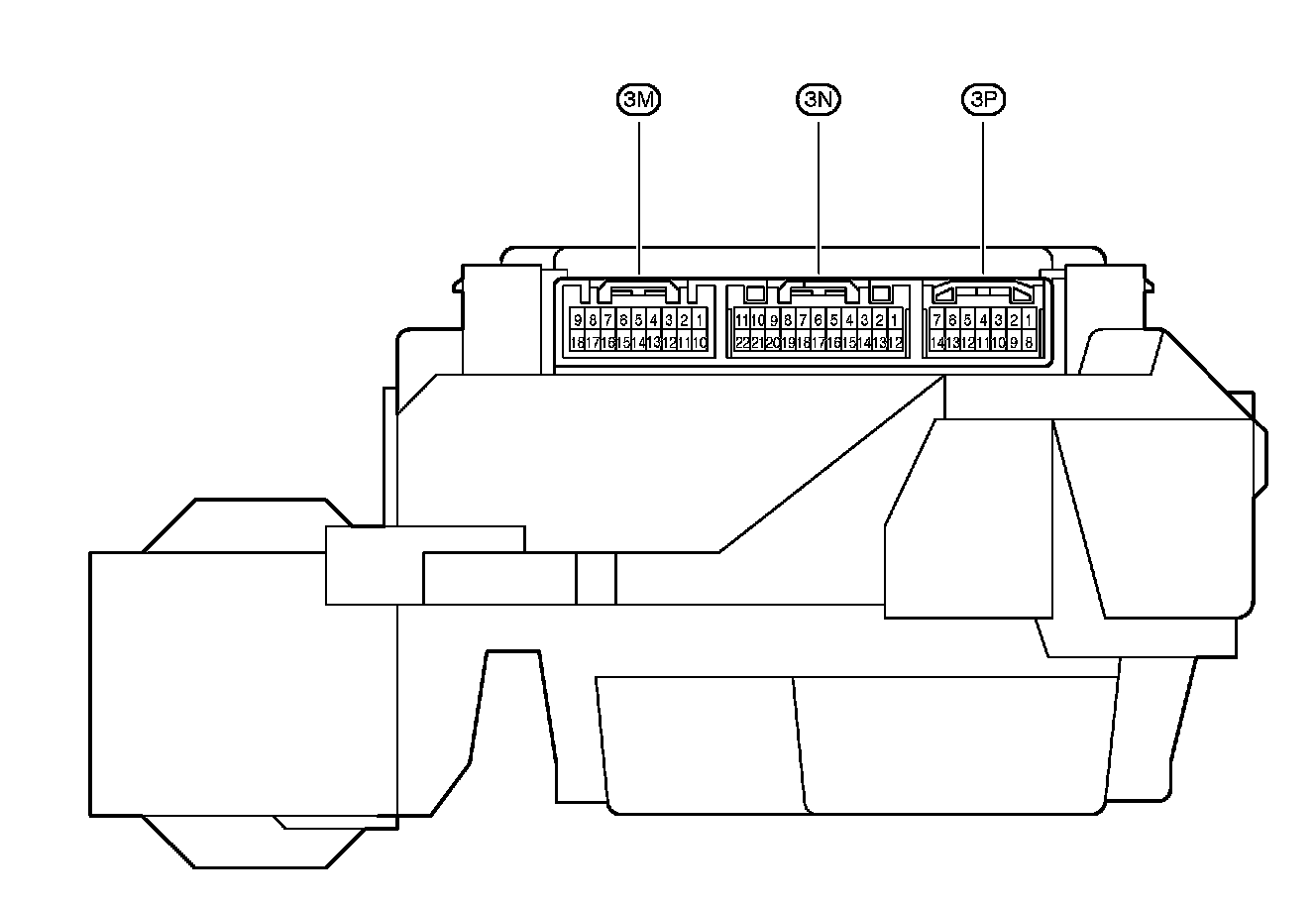

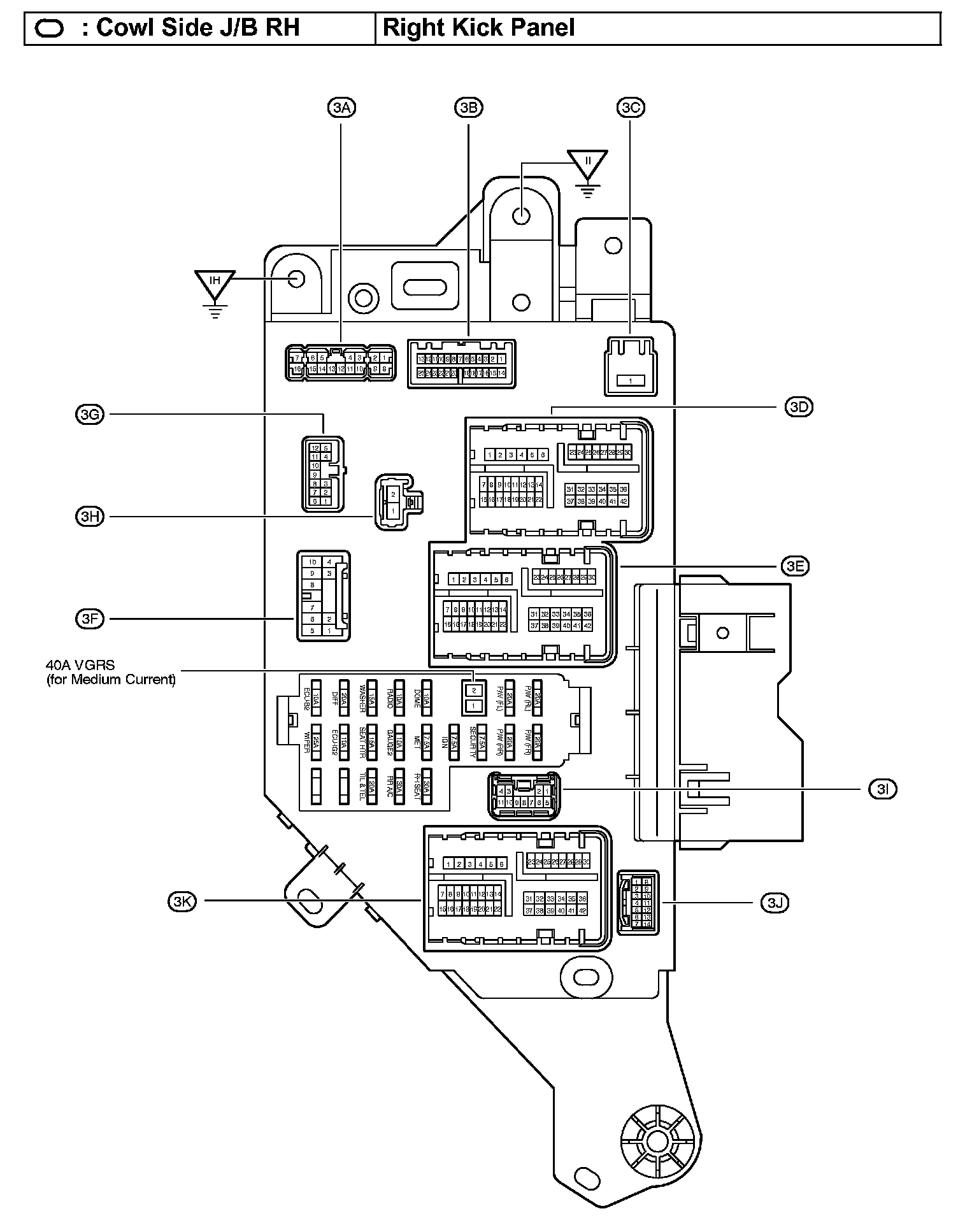

Cowl Side J/B RH - Right Kick Panel:

Cowl Side J/B RH - Right Kick Panel:

Cowl Side J/B RH - Right Kick Panel:

Cowl Side J/B RH - Right Kick Panel:

Cowl Side J/B RH - Right Kick Panel:

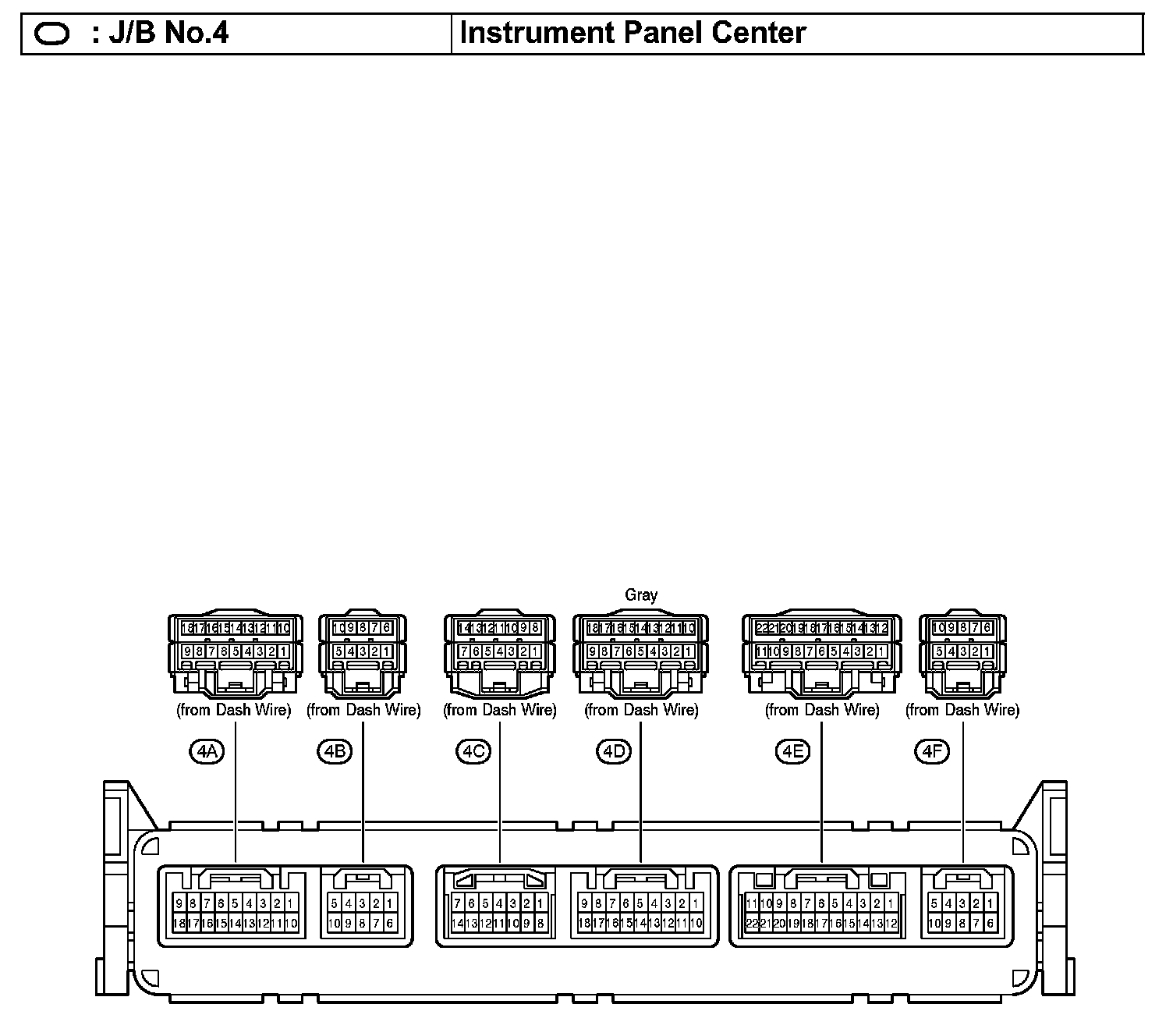

J/B No.4 - Instrument Panel Center:

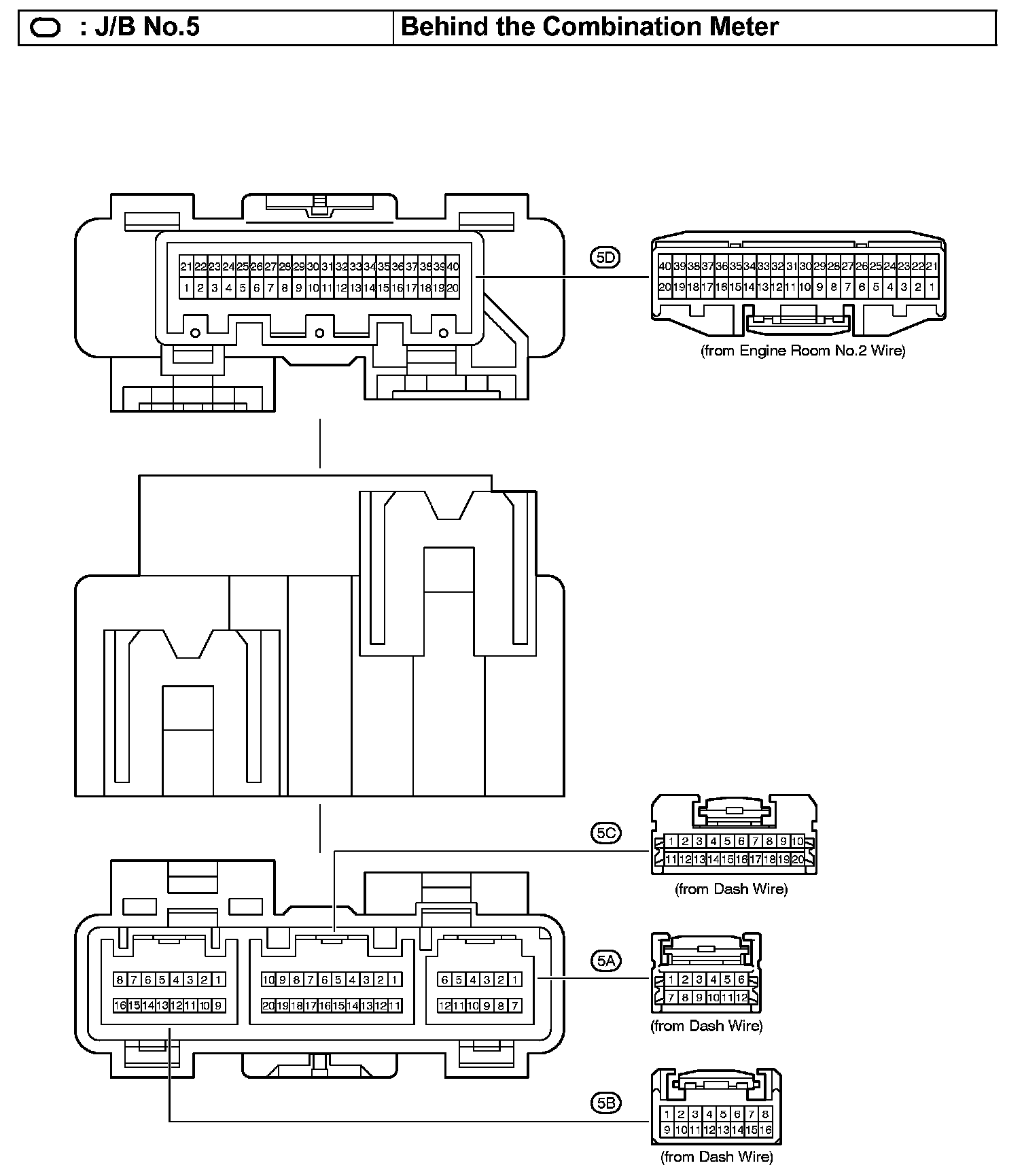

J/B No.5 - Behind The Combination Meter:

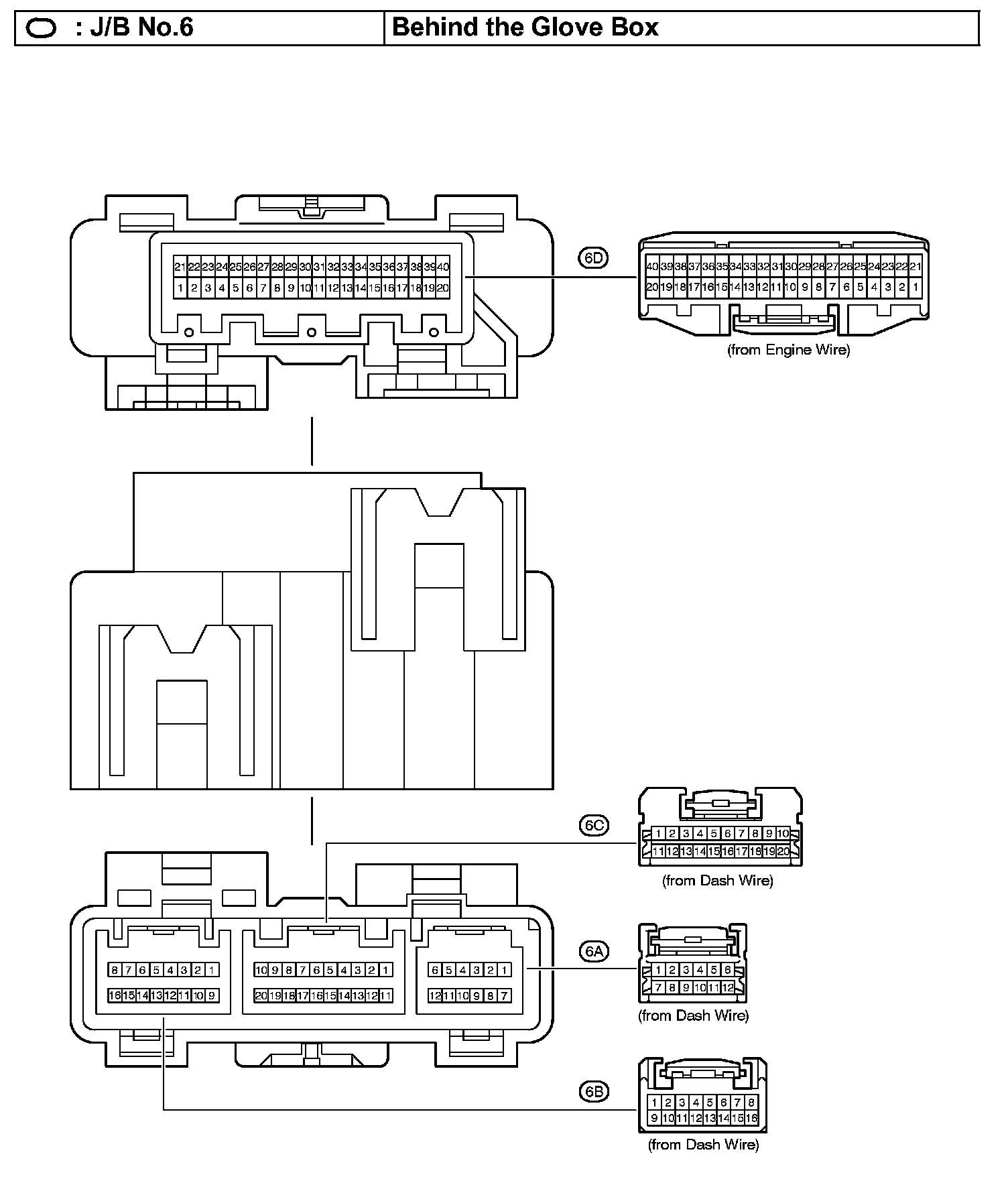

J/B No.6 - Behind The Glove Box:

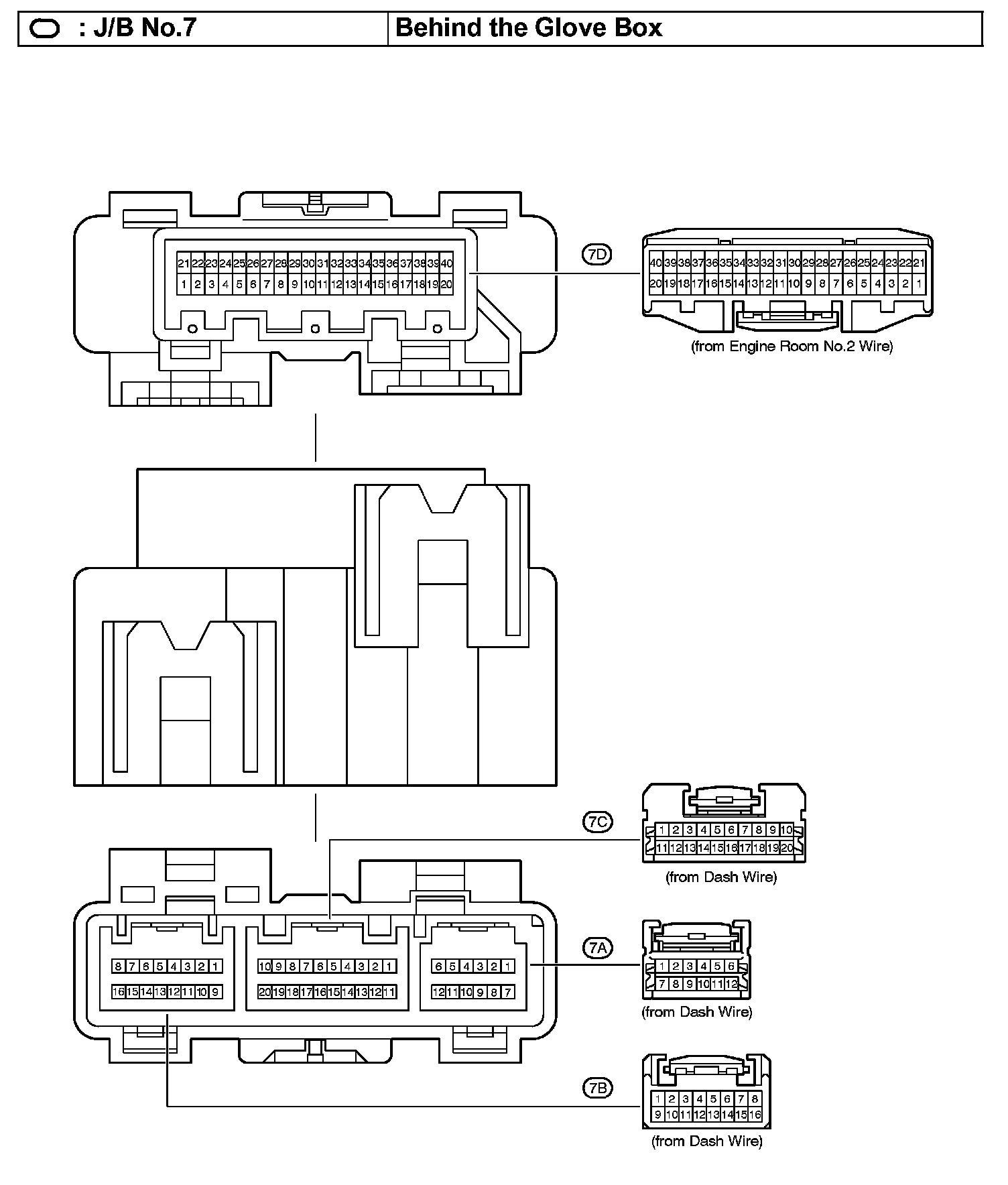

J/B No.7 - Behind The Glove Box:
