Front Door: Components

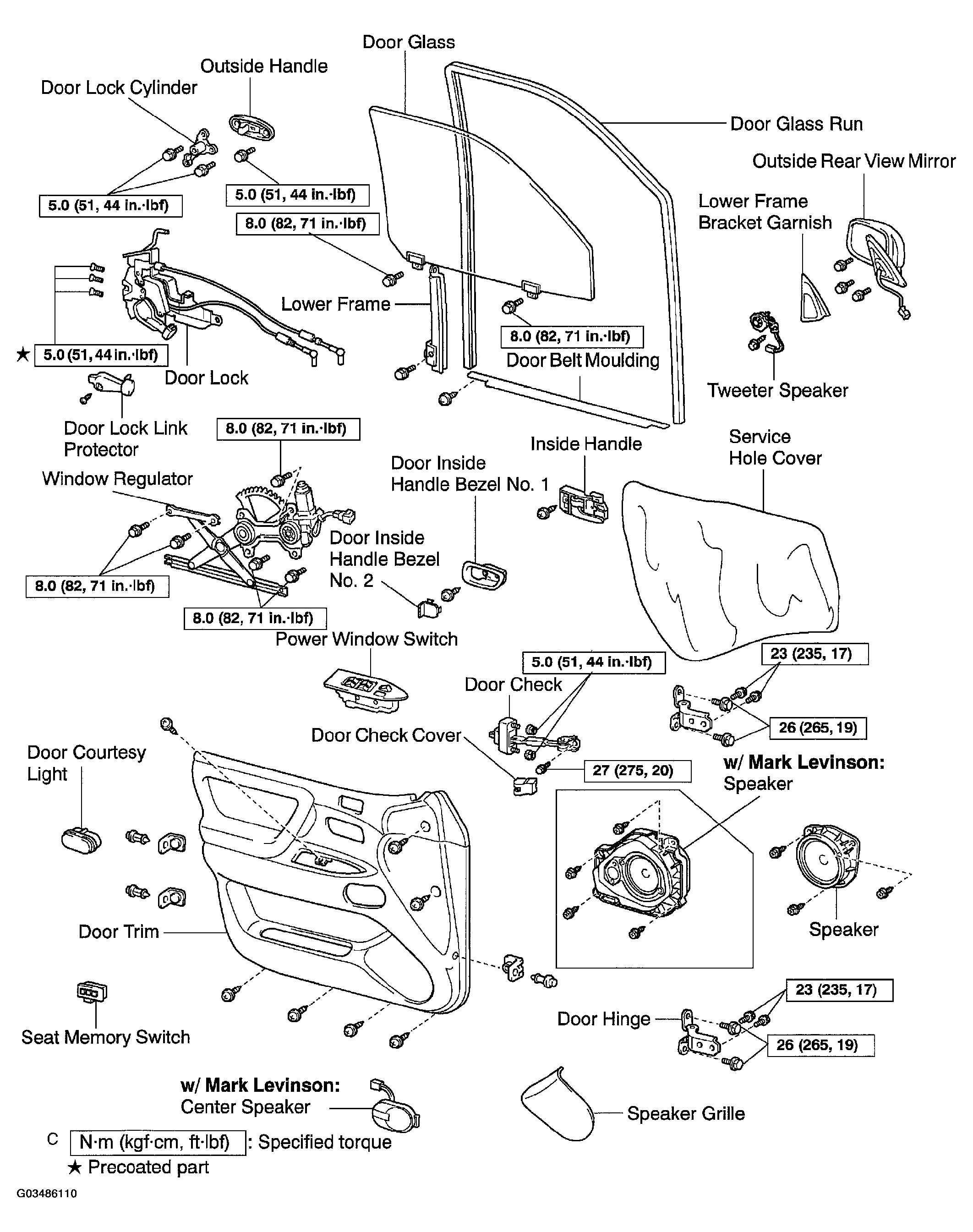

Fig 1: Exploded View Of Front Door
G03486110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
