Hood Lock Control: Installation

BEFORE INSTALLING PARTS, COAT LOCK WITH MP GREASE
Apply MP grease to the sliding surface of the lock.

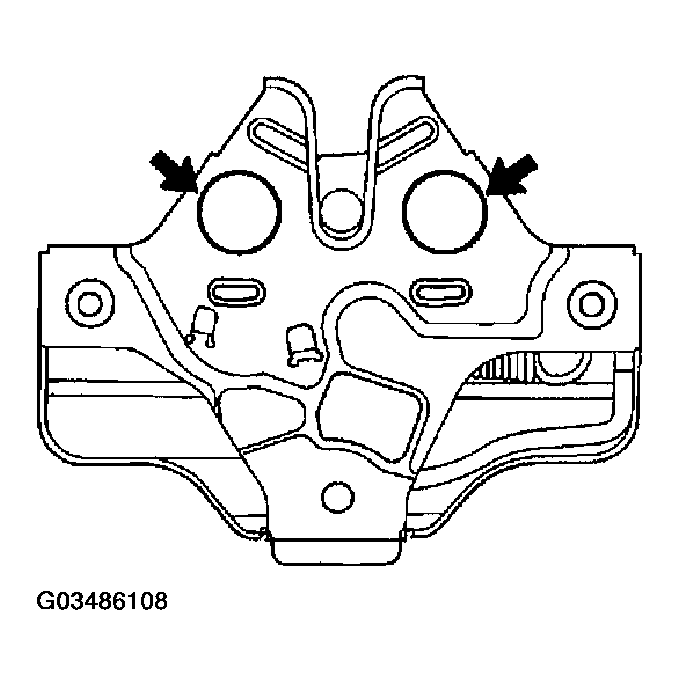

Fig 1: Applying MP Grease To Sliding Surface Of Lock
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK CONTROL CABLE
1. Push the rear side cable through the grommet.
2. Using a screwdriver, push the cable stopper into the grommet.

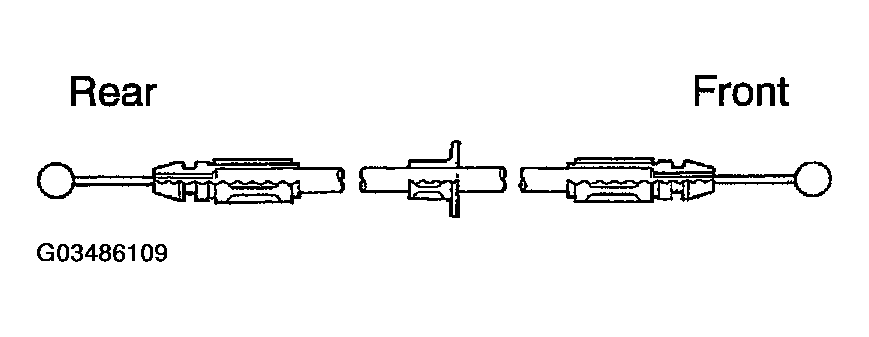

  Fig 2: Identifying Hood Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - Tape the screwdriver tip before use.
  - Do not damage the grommet with the screwdriver.
3. Pass the front side cable through the upper radiator support.
4. Install the cable with clamps.
INSTALL HOOD RELEASE LEVER
CHECK HOOD LOCK CONTROL FOR PROPER OPERATION
After checking for proper operation, tighten the 2 bolts and nut to install the lock.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
INSTALL FENDER LINER
