Power Rear Quarter Window System: Inspection

INSPECT POWER QUARTER WINDOW SWITCH CONTINUITY

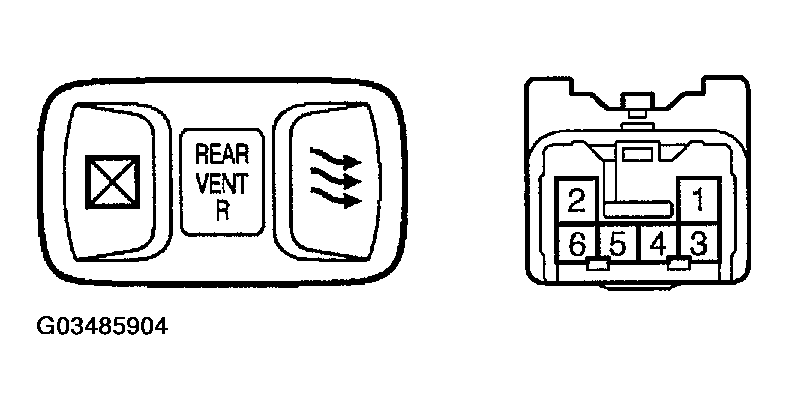

Fig 1: Identifying Power Quarter Window Switch Connector

G03485904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CONNECTION SPECIFICATION

Switch position	Tester connection	Specified condition
CLOSE	3 - 4 5 - 6	Continuity
OFF	-	Continuity
OPEN	3 - 6 4 - 5	Continuity
Illumination Circuit	1 - 2	Continuity

If continuity is not as specified, replace the switch.

Left side:
INSPECT POWER VENT WINDOW MOTOR OPERATION
1. Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminals, and check that the window link moves to OPEN position.

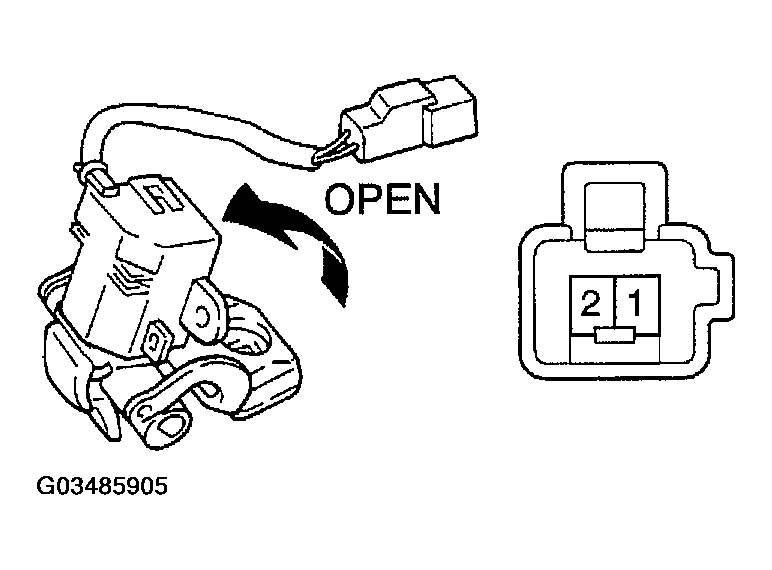

  Fig 2: Checking Window Link Moves Open Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the polarity and check that the window link moves to CLOSE position.
  If operation is not as specified, replace the window motor.

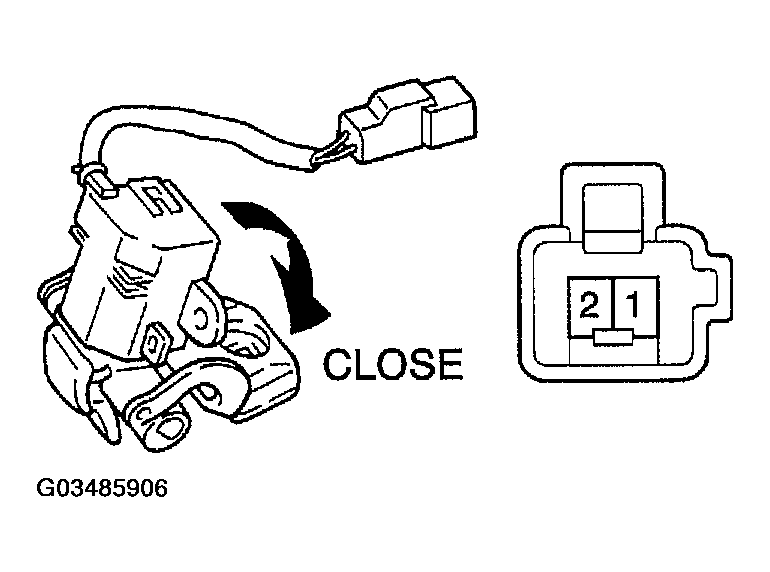

  Fig 3: Checking Window Link Moves Close Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Right side:
INSPECT POWER VENT WINDOW MOTOR OPERATION
1. Connect the battery positive (+) lead to terminal 2 and the battery negative (-) lead to terminal 1, and check that the window link moves to OPEN position.

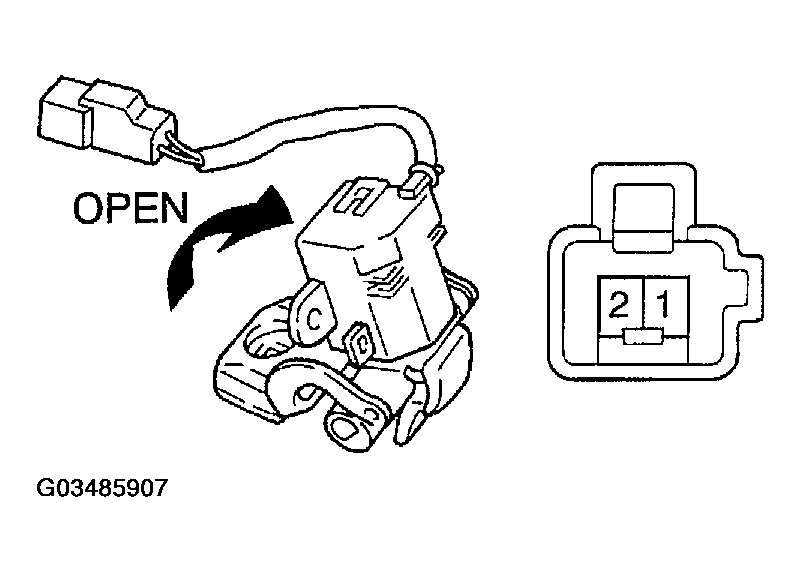

  Fig 4: Checking Window Link Moves To Open Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the polarity and check that the window link moves to CLOSE position.

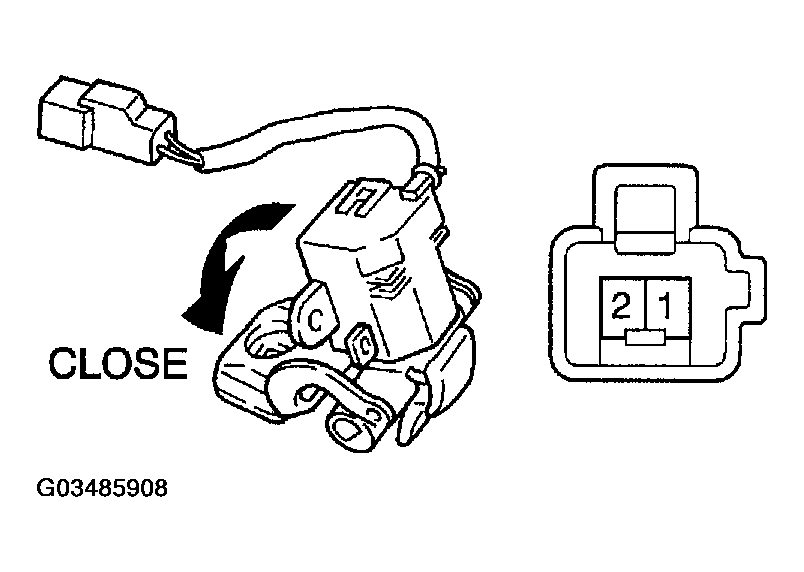

  Fig 5: Checking Window Link Moves To Close Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
