Remove Speed Sensor

Disconnect the speed sensor connector.
Remove the clamp bolt from the upper control bracket.
1. Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)
Remove the 6 resin clips, holding the sensor wire harness from the frame, upper control arm and axle housing.

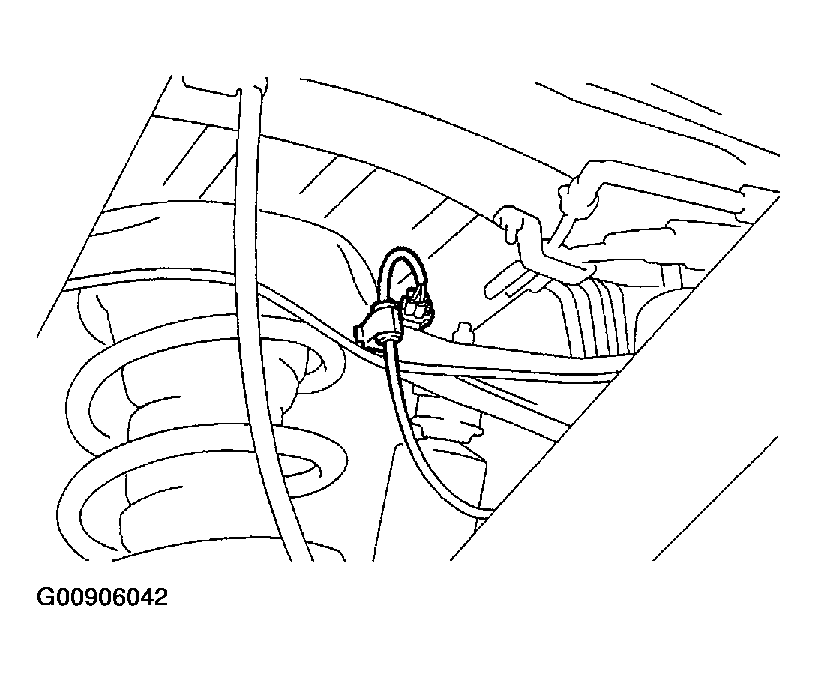

Fig 1: Disconnecting Speed Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the mounting bolt and speed sensor.
1. Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

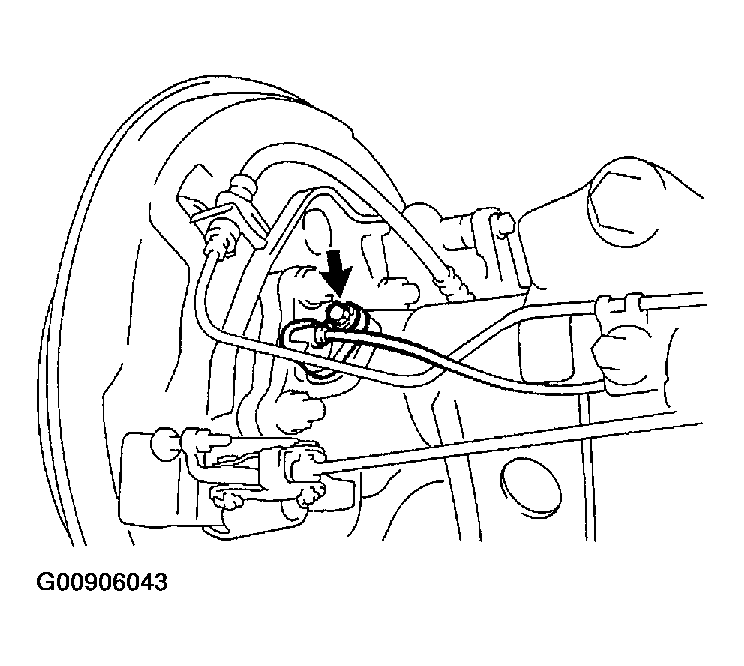

Fig 2: Removing Mounting Bolt & Speed Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
