Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| Accel Position Switch | Under left side of dash, above accelerator pedal. |

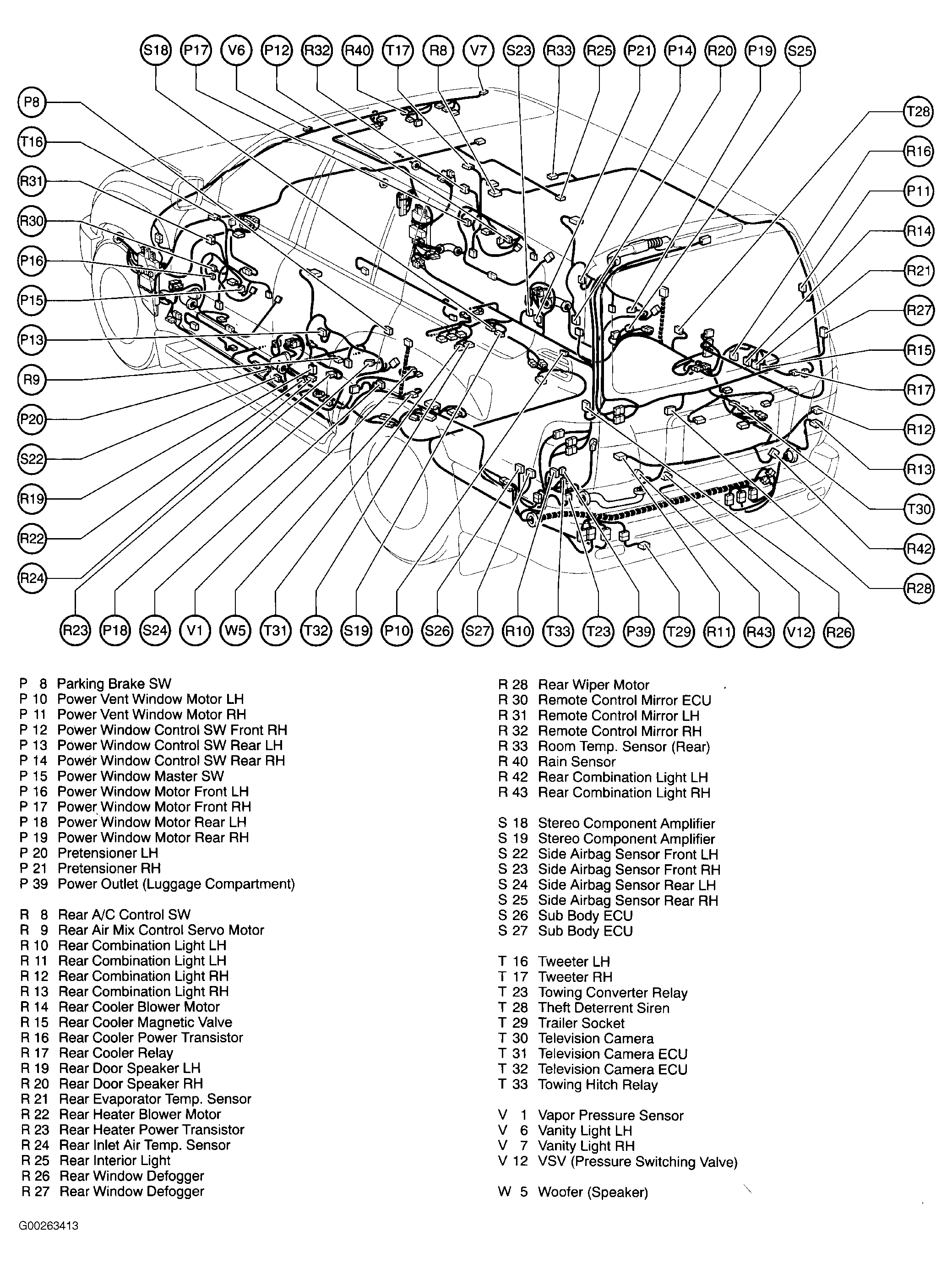

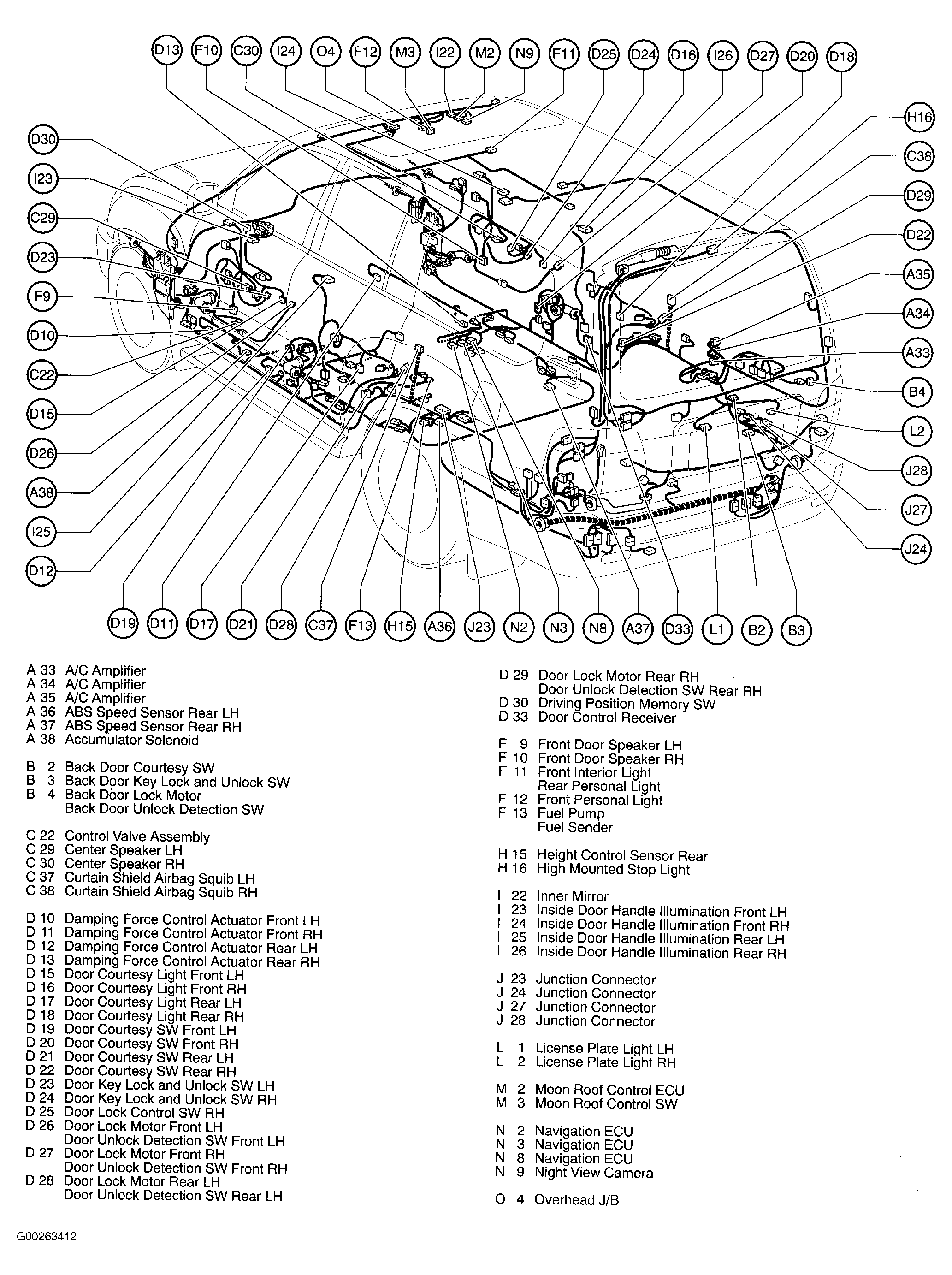

| Back Door Courtesy SW | Near center of back door. See Figure. |
| Back Door Unlock Detection SW | Right side of back door. See Figure. |

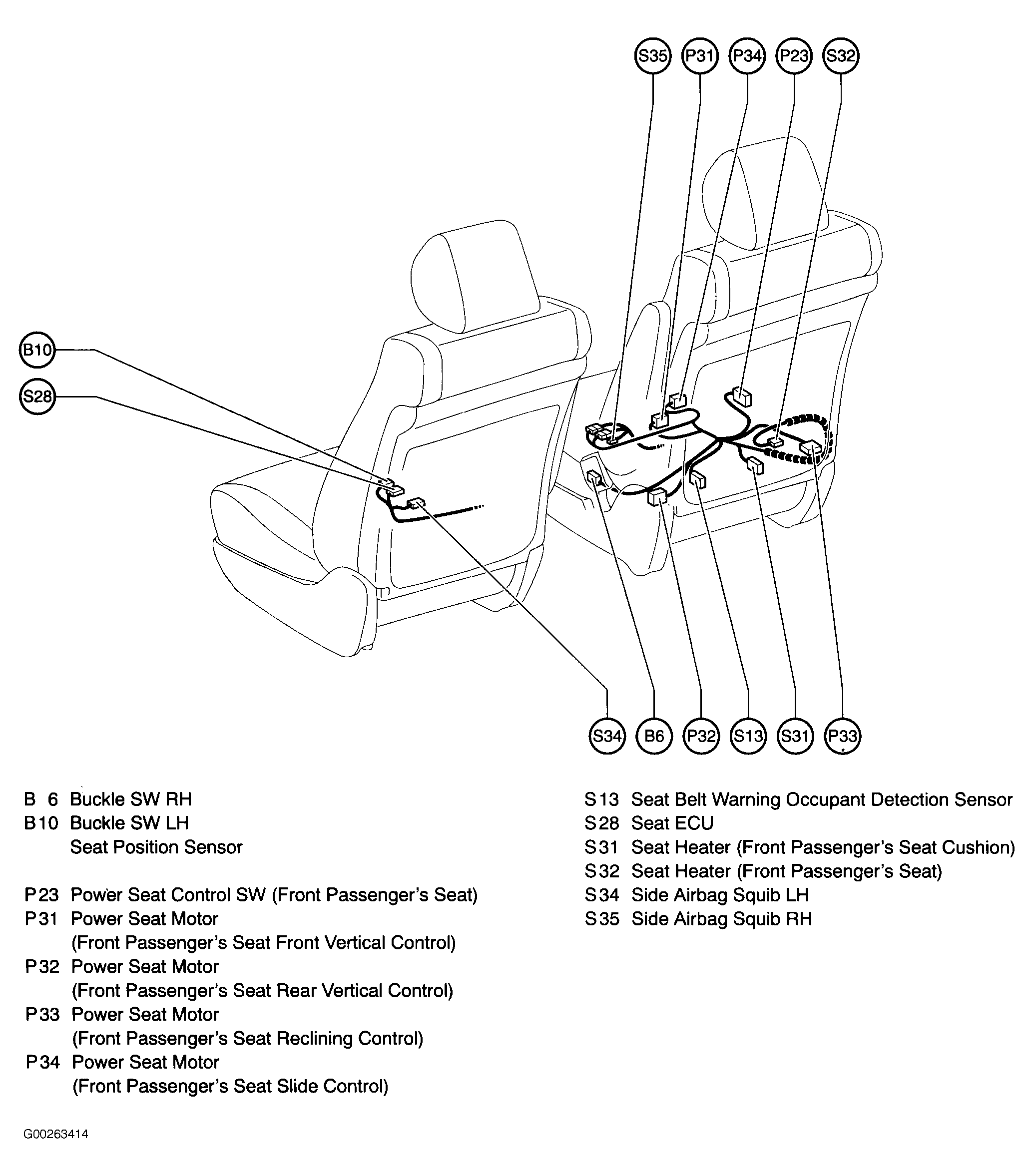

| Buckle Switch (Left) | In left front seat belt buckle. See Figure. |
| Buckle Switch (Right) | In right front seat belt buckle. See Figure. |

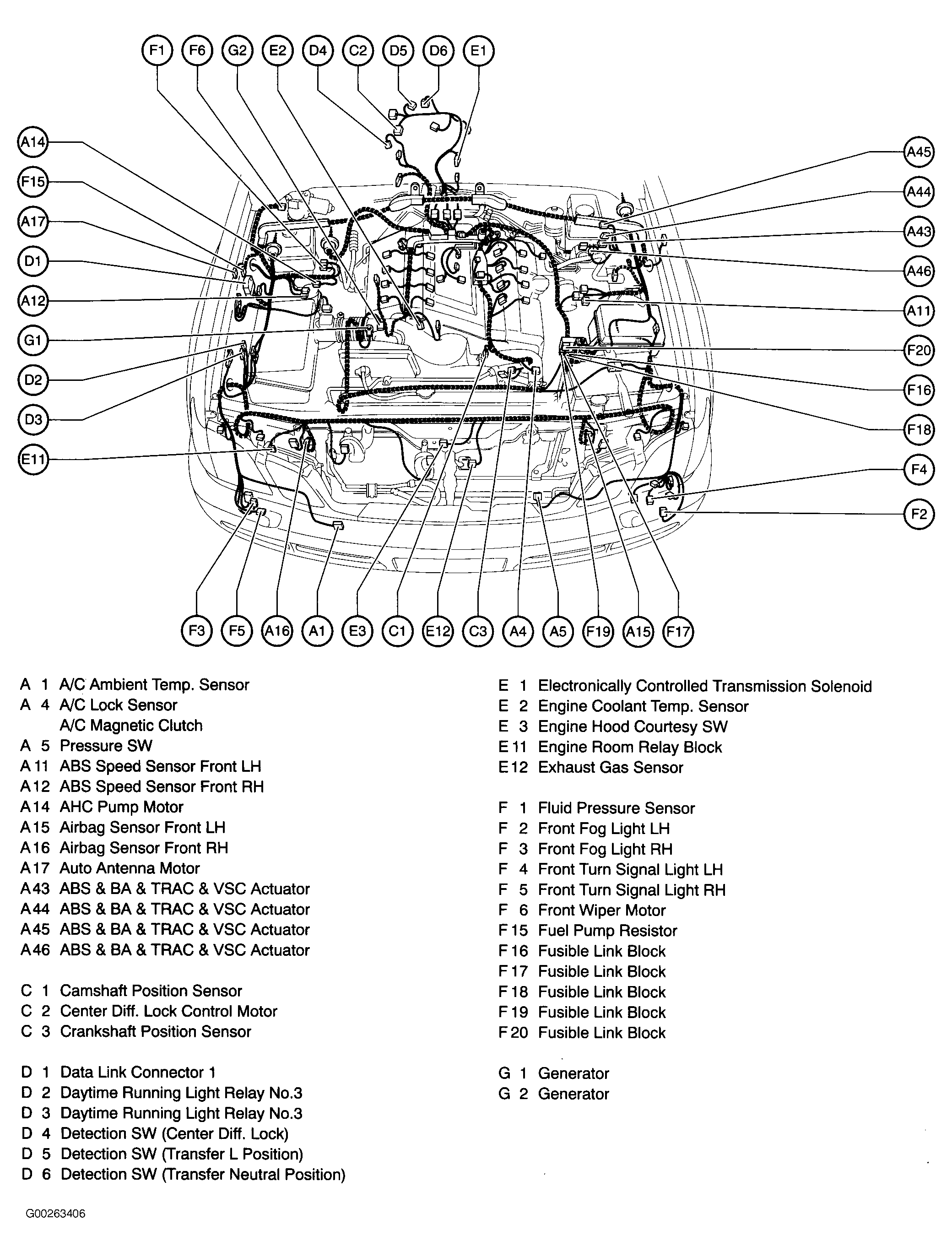

| Detection Switch (Center Diff Lock) | On center of differential. See Figure. |
| Detection Switch (Transfer L Position) | On transfer case. See Figure. |
| Detection Switch (Transfer Neutral Position) | On transfer case. See Figure. |
| Door Courtesy Switch (Left Front) | On left "B pillar. See Figure. |
| Door Courtesy Switch (Left Rear) | On left "C" pillar. See Figure. |
| Door Courtesy Switch (Right Front) | On right "B" pillar. See Figure. |
| Door Courtesy Switch (Right Rear) | On right "C" pillar. See Figure. |
| Door Key Lock And Unlock Switch (Left) | In left front door. See Figure. |
| Door Key Lock And Unlock Switch (Right) | In right front door. See Figure. |
| Door Unlock Detection Switch (Left Front) | In left front door. See Figure. |
| Door Unlock Detection Switch (Left Rear) | In left rear door. See Figure. |
| Door Unlock Detection Switch (Right Front) | In right front door. See Figure. |
| Door Unlock Detection Switch (Right Rear) | In right rear door. See Figure. |
| Engine Hood Courtesy Switch | On top center of radiator support. See Figure. |
| Parking Brake Switch | On base of park brake lever. See Figure. |
| Park/Neutral Position Switch | On right side of transmission. See Figure. |

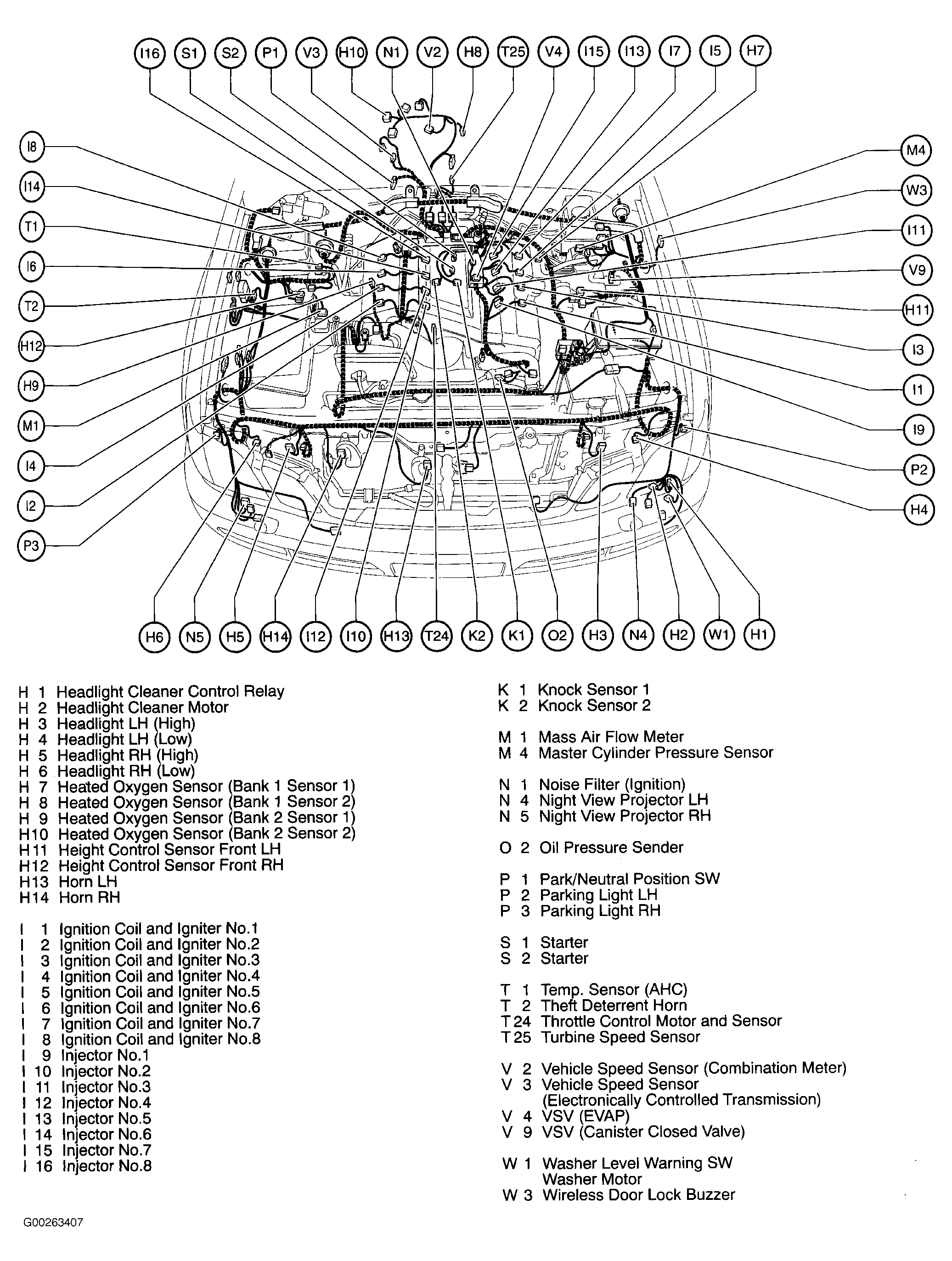

| Pressure SW | At left front of engine compartment, near headlight assembly. See Figure. |
| Stop Light Switch | On bracket, above brake pedal. See Figure. |
| Unlock Warning SW | Behind left side of dash. See Figure. |
| Washer Level Warning Switch | At left front of engine compartment, below headlight. See Figure. |
