Instrument Panel: Disassembly

  1. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
  2. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
  3. REMOVE DEFROSTER NOZZLE
  4. REMOVE CENTER BRACKET
  5. REMOVE NO. 1 HEATER TO REGISTER DUCT
  6. REMOVE INSTRUMENT PANEL WIRE HARNESS
  7. REMOVE NO. 5 HEATER TO REGISTER DUCT
  8. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY

    Remove the 3 nuts and the front passenger airbag assembly.

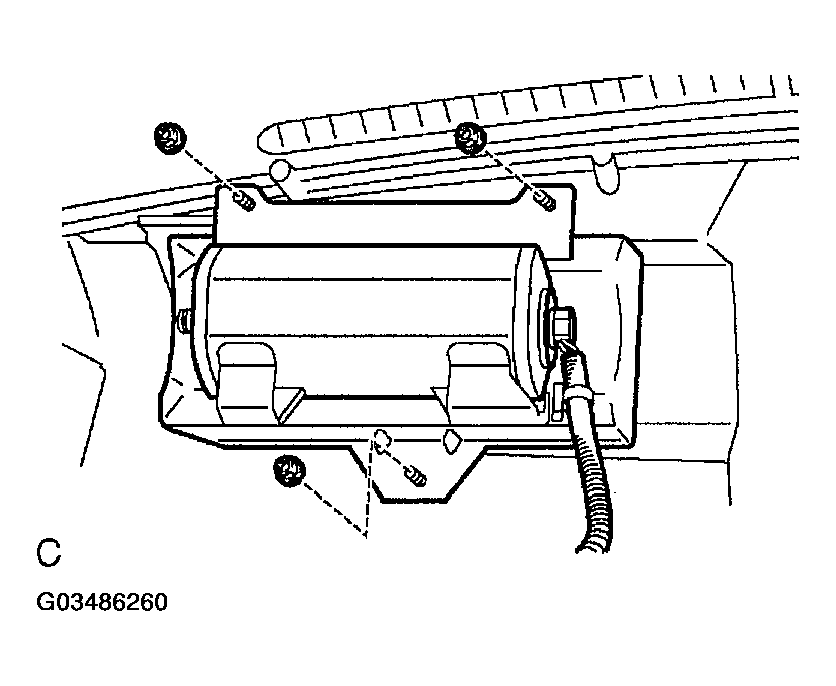

    Fig 1: Removing Front Passenger Airbag Assembly
    G03486260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 6.0 N.m (61 kgf.cm, 53 in.lbf)

    CAUTION:
    • Do not store the front passenger airbag assembly with the airbag deployment side facing down.
    • Never disassemble the front passenger airbag assembly.
    NOTE: At the time of reassembly:
    • Make sure that the front passenger airbag assembly is installed with the specified torque.
    • If the front passenger airbag assembly has been dropped, or if there are cracks, dents or other defect in the case or the connector, replace the front passenger airbag assembly with a new one.
    • When installing the front passenger airbag assembly, take care that the wiring does not interfere with other parts and is not pinched between other parts.
  9. REMOVE NO. 1 REGISTER
  10. REMOVE NO. 4 REGISTER
