Oil Cooler: Components

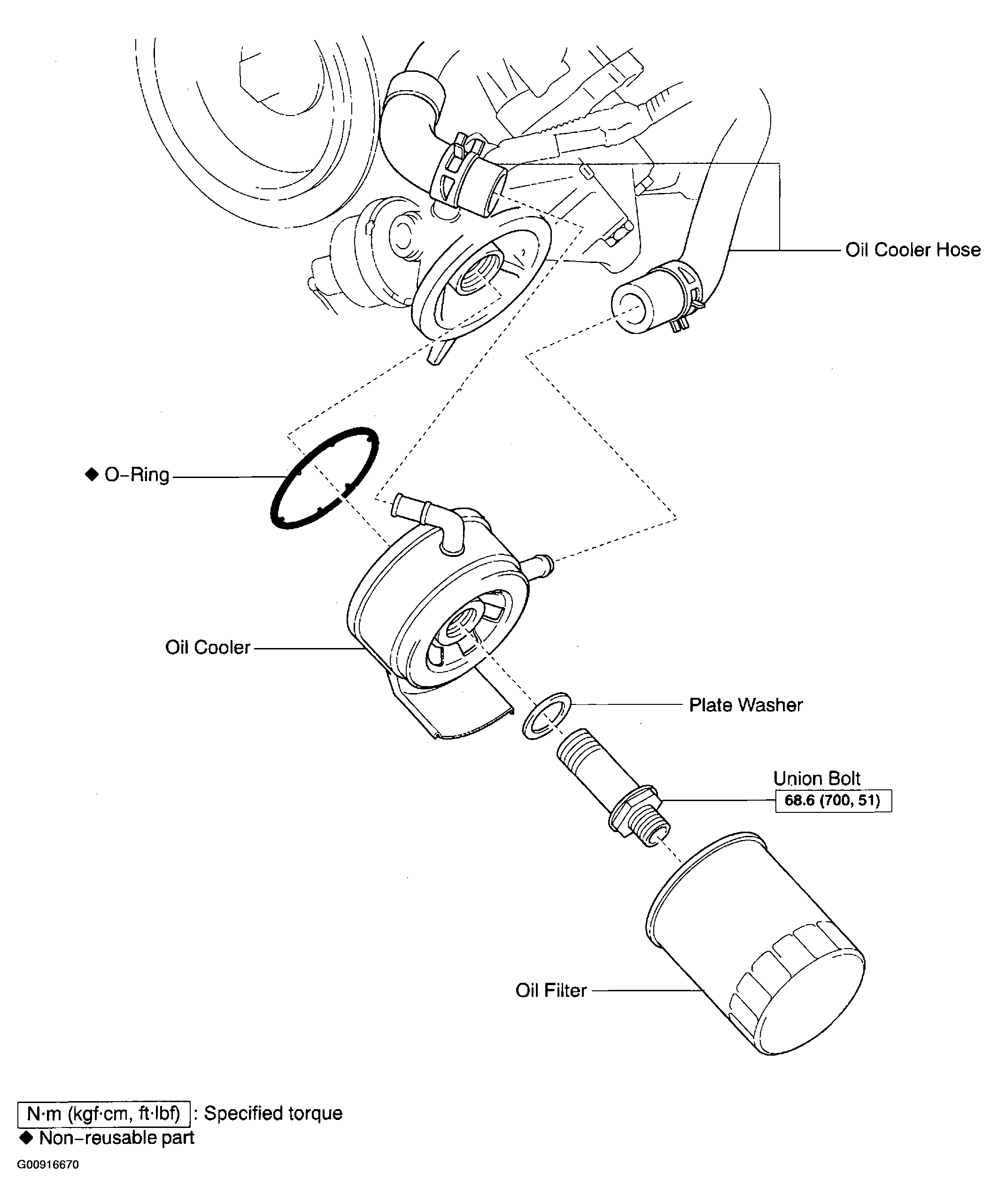

Fig 1: Identifying Oil Cooler Components
G00916670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
