Oil Pump: Components

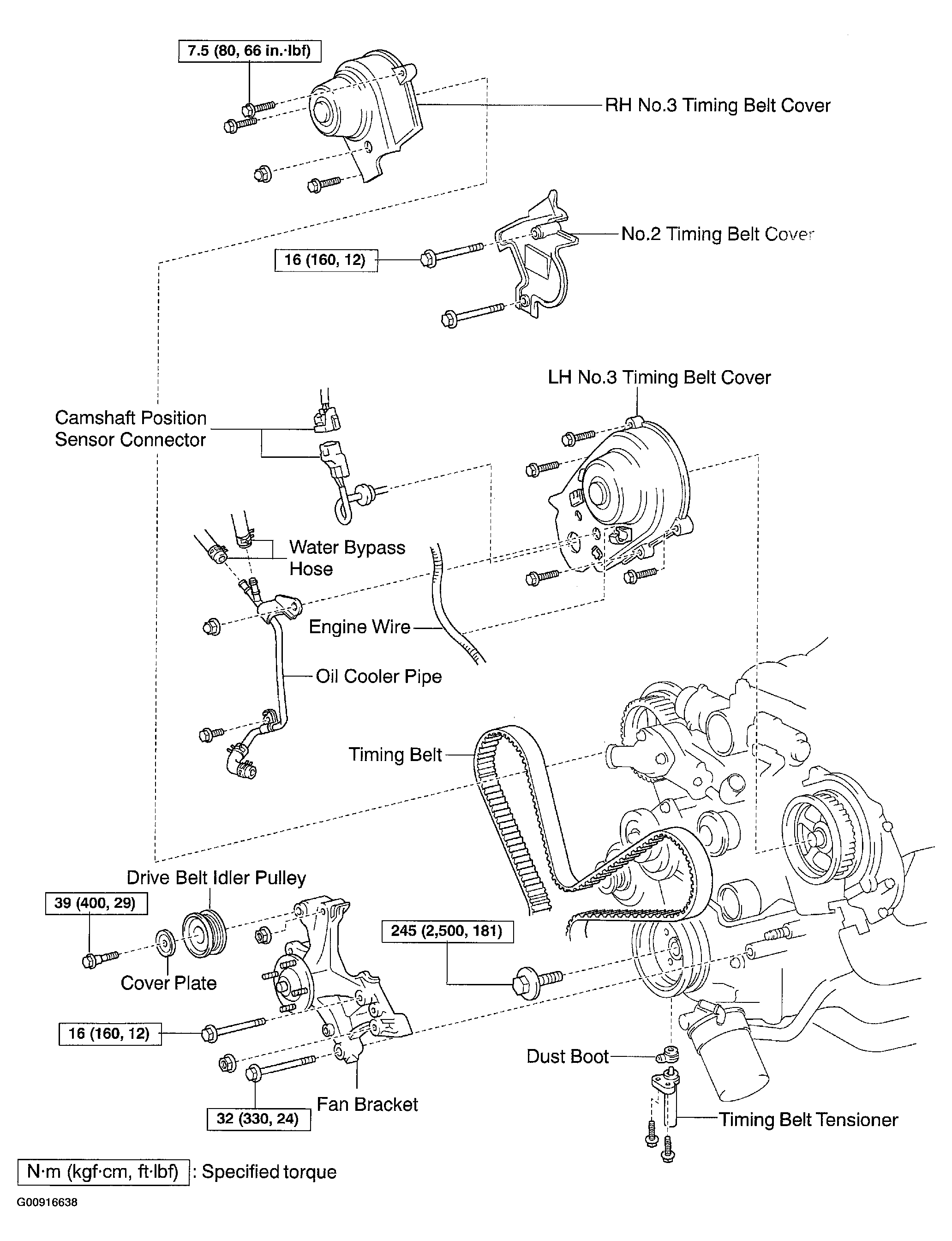

Fig 1: Identifying Oil Pump Components (1 Of 4)
G00916638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

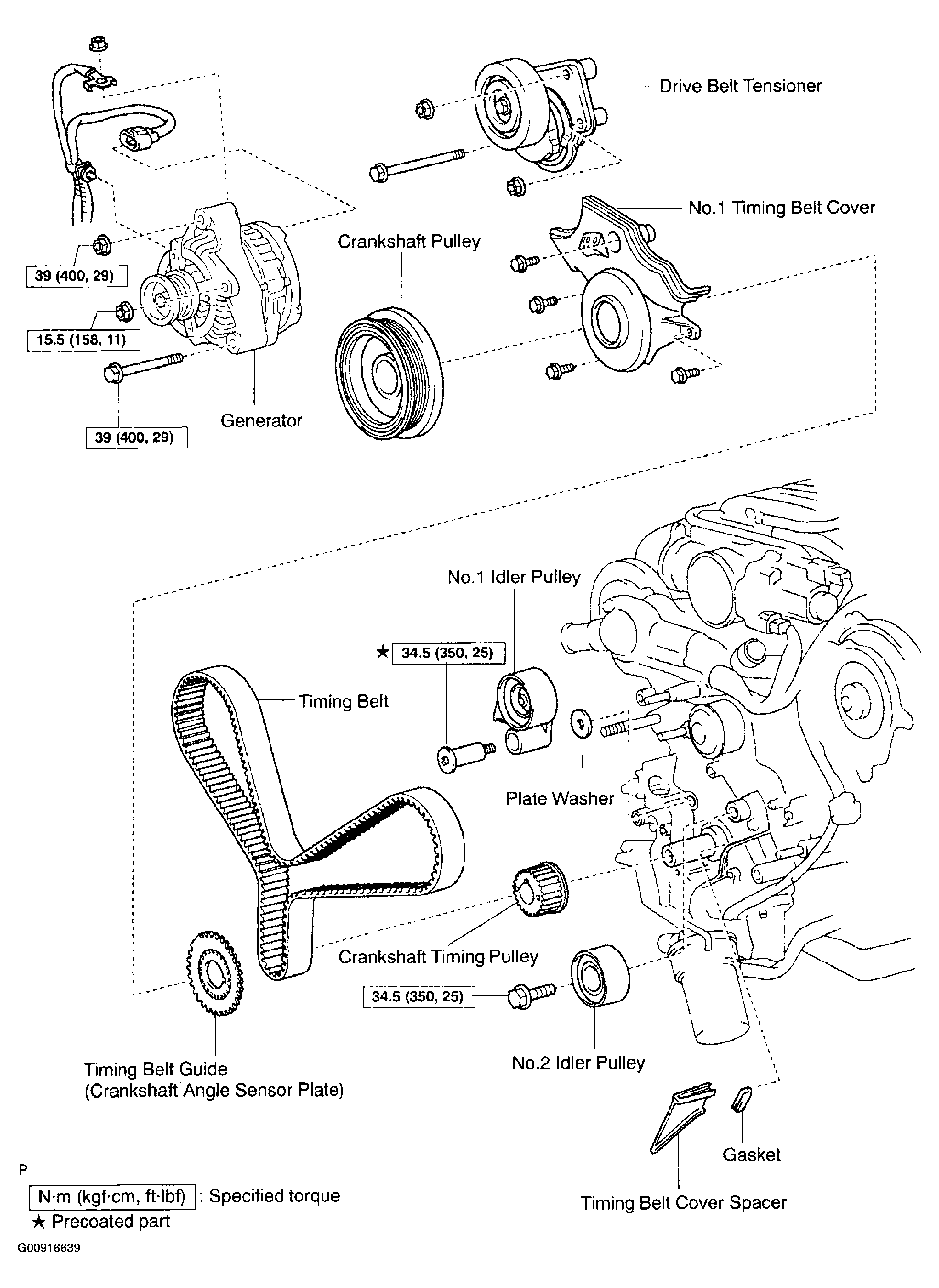

Fig 2: Identifying Oil Pump Components (2 Of 4)
G00916639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

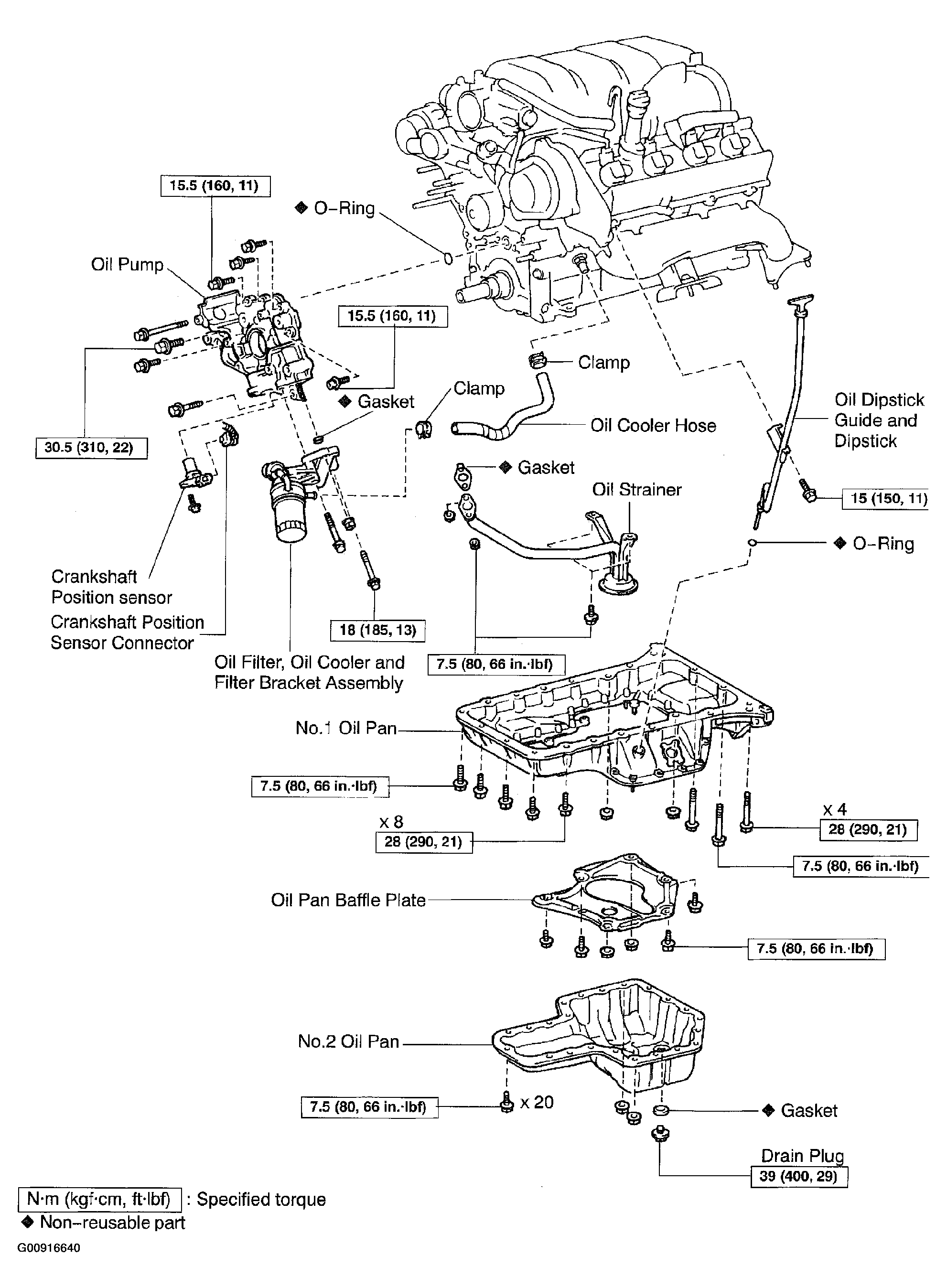

Fig 3: Identifying Oil Pump Components (3 Of 4)
G00916640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

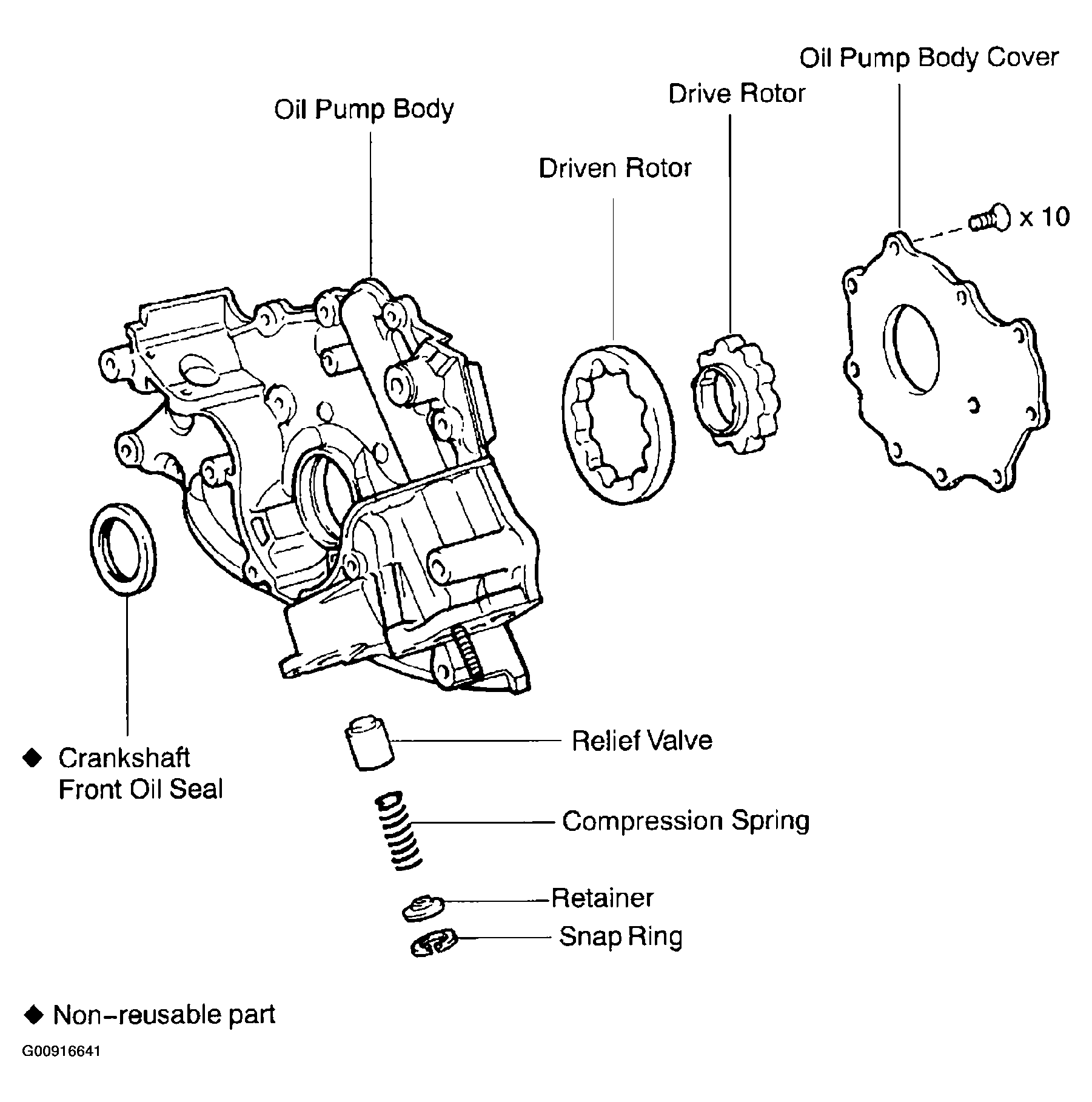

Fig 4: Identifying Oil Pump Components (4 Of 4)
G00916641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
