Oil Pump: Inspection

Coat the valve with engine oil and check that it falls smoothly into the valve hole by its own weight.

If it doesn't, replace the relief valve. If necessary, replace the oil pump assembly.

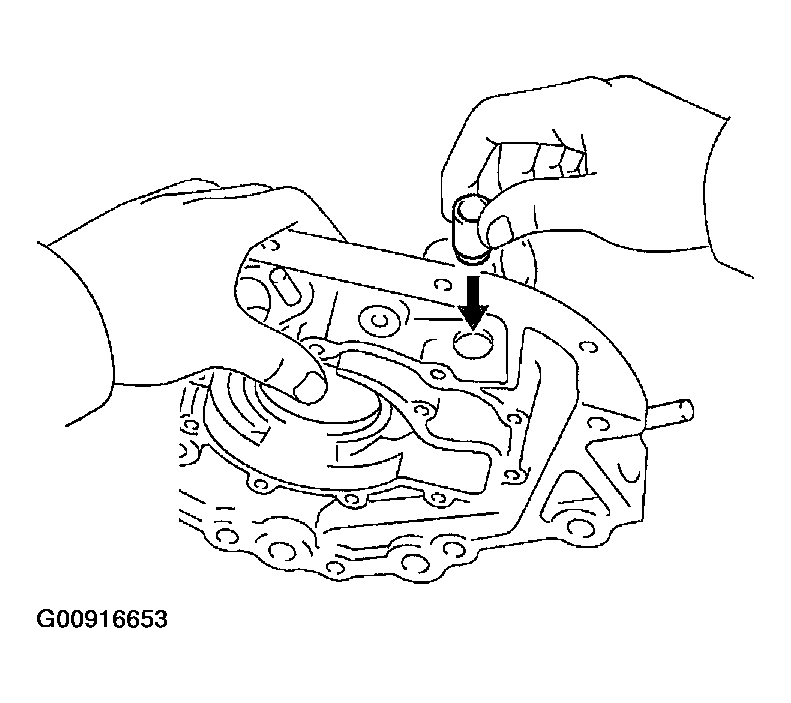

Fig 1: Inspecting Relief Valve

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place the drive and driven rotors into the oil pump body with the mark facing upward.

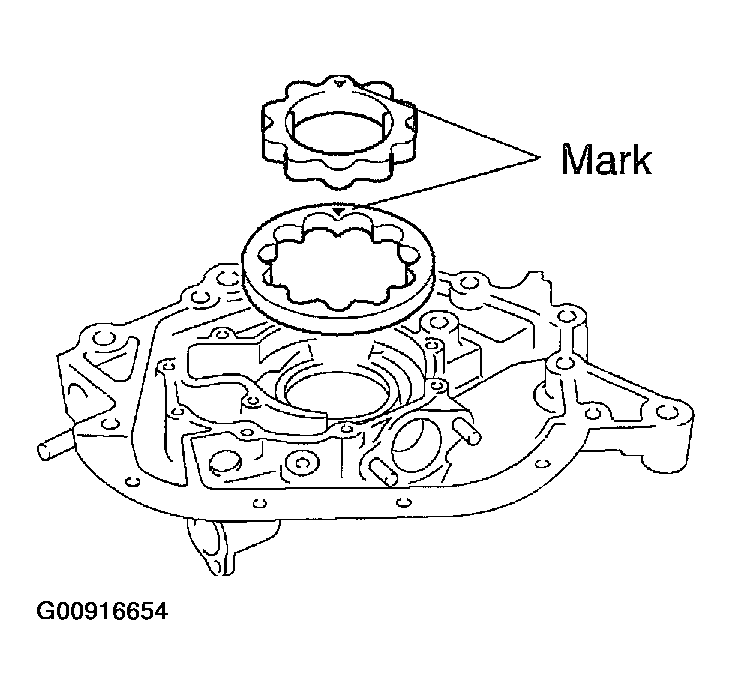

Fig 2: Installing Drive & Driven Rotors Into Oil Pump Body

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a feeler gauge, measure the clearance between the drive and driven rotor tips.

1. Standard tip clearance: 0.110 - 0.240 mm (0.0043 - 0.0094 in.)
2. Maximum tip clearance: 0.35 mm (0.0138 in.)

If the tip clearance is greater than the maximum, replace the rotors as a set.

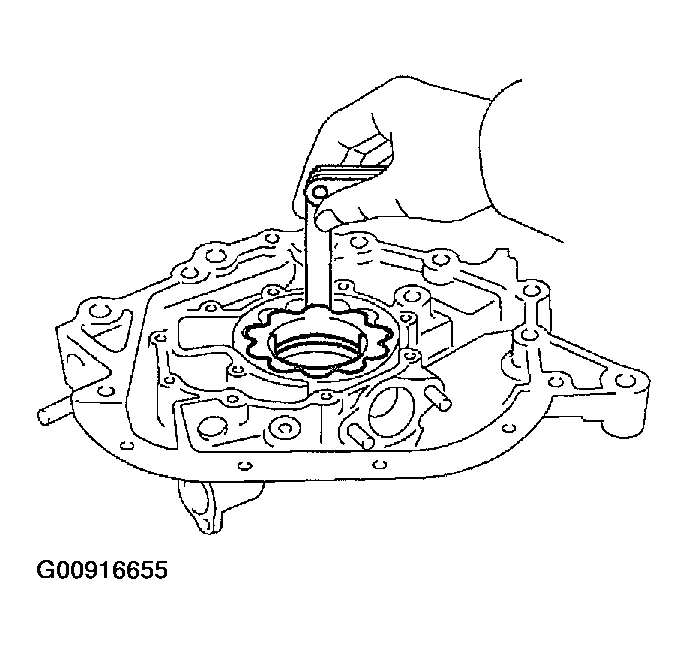

Fig 3: Inspecting Rotor Tip Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a feeler gauge and a precision straight edge, measure the clearance between the rotors and the precision straight edge.

1. Standard side clearance: 0.030 - 0.090 mm (0.0012 - 0.0035 in.)
2. Maximum side clearance: 0.15 mm (0.0059 in.)

If the side clearance is greater than the maximum, replace the rotors as a set. If necessary, replace the oil pump assembly.

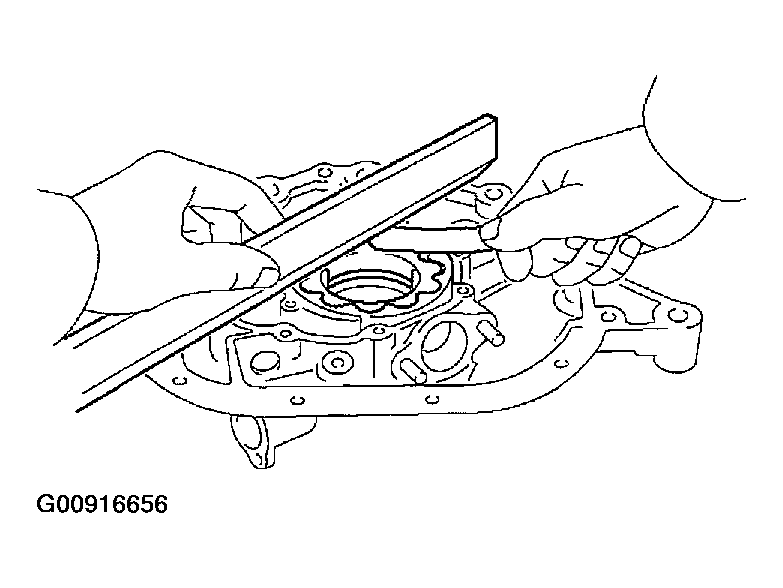

Fig 4: Inspecting Rotor Side Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a feeler gauge, measure the clearance between the driver rotor and body.

1. Standard body clearance: 0.100 - 0.175 mm (0.0039 - 0.0069 in.)
2. Maximum body clearance: 0.30 mm (0.0118 in.)

If the body clearance is greater than the maximum, replace the rotors as a set. If necessary, replace the oil pump assembly.

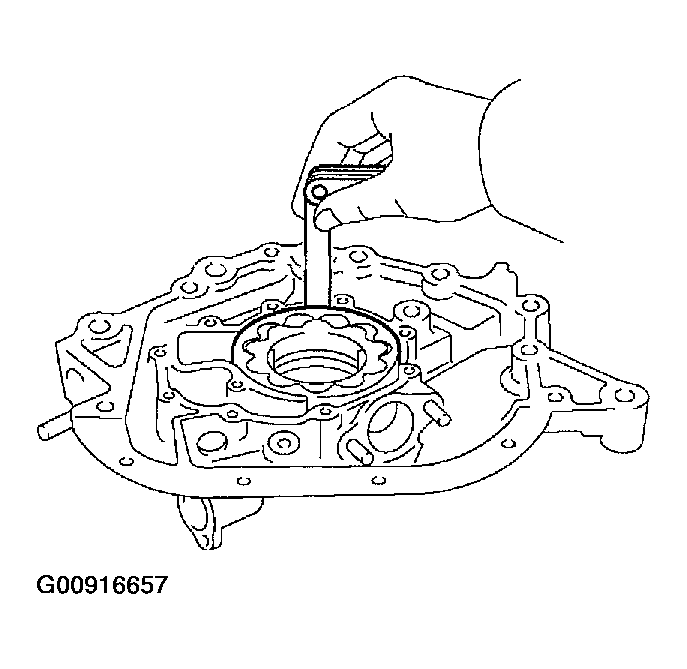

Fig 5: Inspecting Rotor Body Clearance
