Inspection Procedure

HINT:

Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

1. Are there any other codes (besides DTC P0101) being output?

   PREPARATION:

   1. Connect the hand-held tester or the OBD II scan tool to DLC3.
   2. Turn the ignition switch ON and push the hand-held tester or OBD II scan tool main switch ON.
   3. When using hand-held tester, enter the following menus: DIAGNOSIS / ENHANCED OBD II / DTC INFO/CURRENT CODES.

   CHECK:

   Read the DTC using the hand-held tester or the OBD II scan tool.

   RESULT:

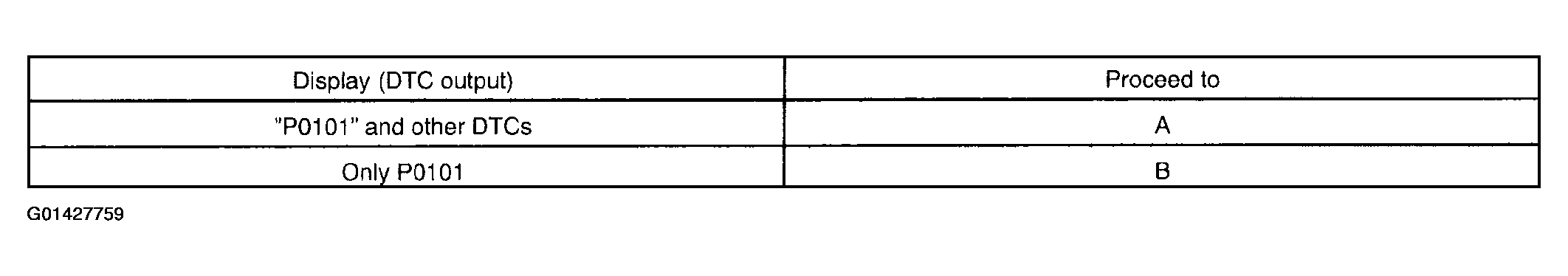

   Fig 1: Result Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   If any other codes besides P0101 are output, perform the troubleshooting for those codes first.

   1. B: Replace mass air flow meter.
   2. A: Go to relevant DTC chart (See  DIAGNOSTIC TROUBLE CODE CHART  ).
