Typical Enabling Conditions

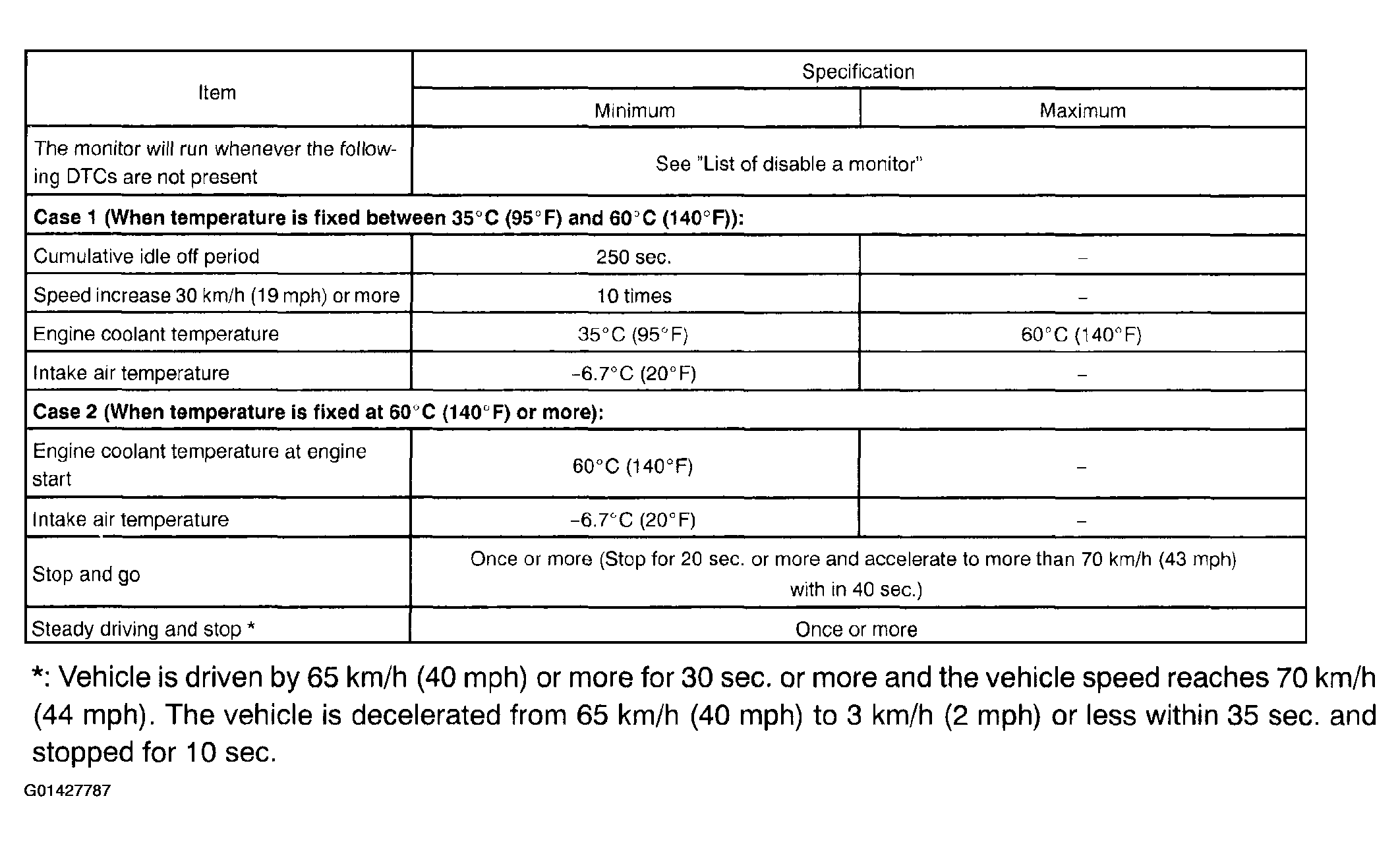

Fig 1: Typical Enabling Conditions Chart
G01427787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*: Vehicle is driven by 65 km/h (40 mph) or more for 30 sec. or more and the vehicle speed reaches 70 km/h (44 mph). The vehicle is decelerated from 65 km/h (40 mph) to 3 km/h (2 mph) or less within 35 sec. and stopped for 10 sec.
