Parts Location

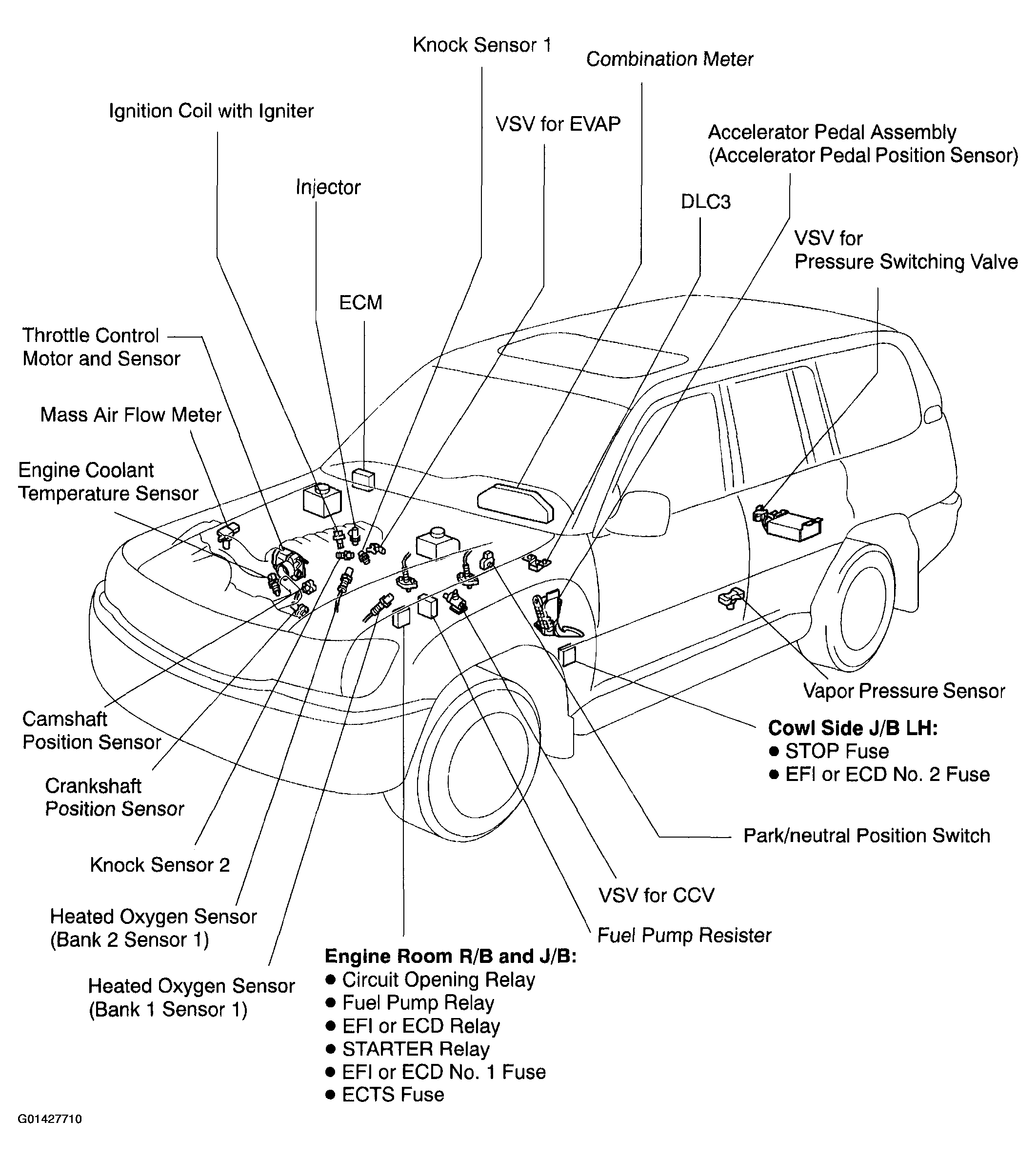

Fig 1: Identifying Location Of Engine Component
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
