Fuel Cut Rpm: Inspection

Allow the engine to warm up to normal operating temperature.

1. Connect the LEXUS hand-held tester or OBD II scan tool to the DLC3.

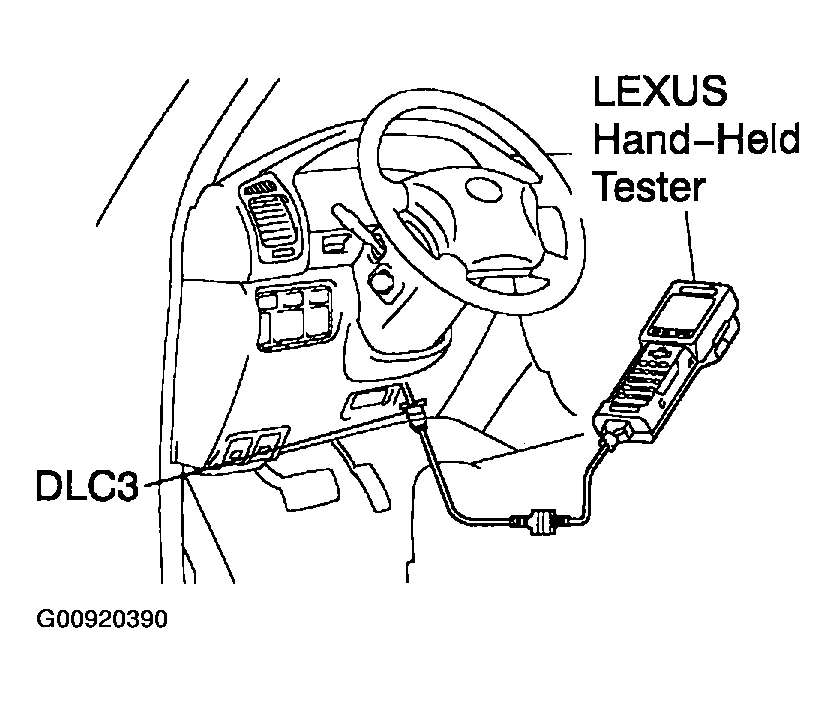

Fig 1: Connecting Hand-Held Tester To DLC3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Please refer to the LEXUS hand-held tester or OBD II scan tool operator's manual for further details.

1. Increase the engine speed to at least 2,500 rpm.
2. Check the injector for operating noise.

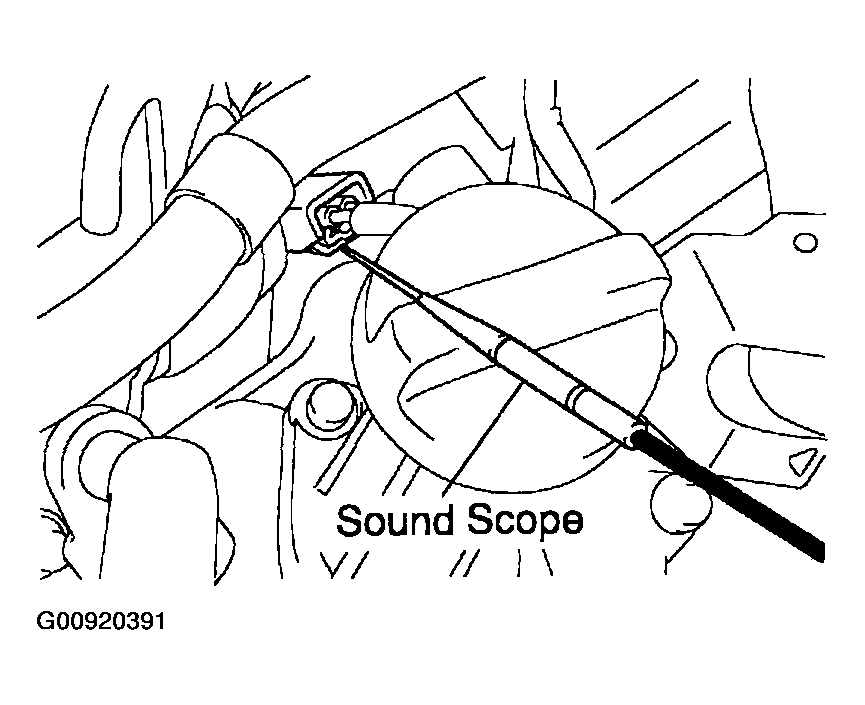

Fig 2: Identifying Sound Scope
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check that when the throttle lever is released, injector operation noise stops momentarily and then resumes.

HINT:

• The vehicle should be at a rest the inspection.
• Inspection with the A/C OFF.
  1. Fuel return speed: 1,000 rpm
