Fuel Pump Resistor: Inspection

Using an ohmmeter, measure the resistance between the terminals.

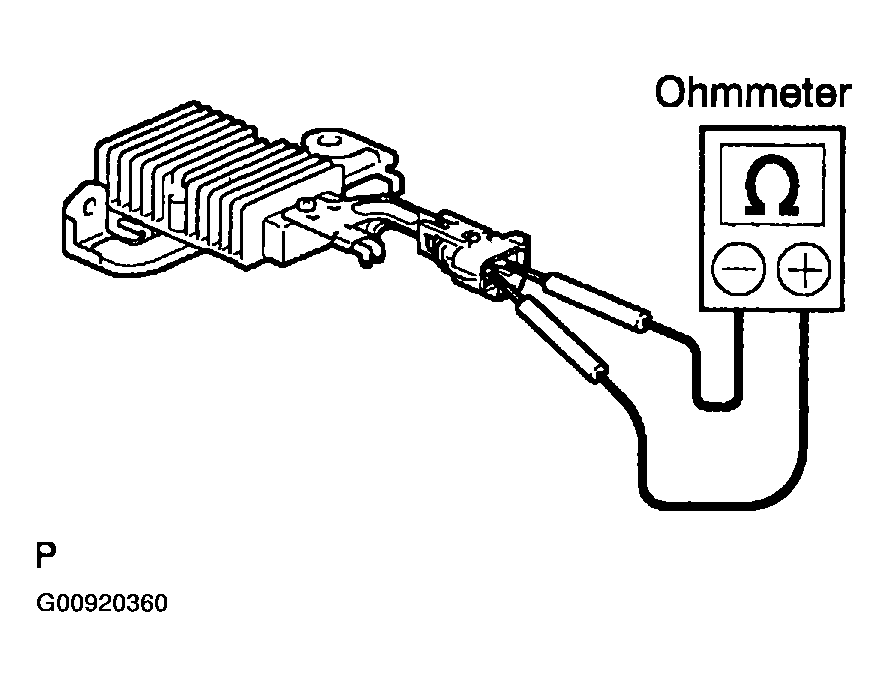

Fig 1: Measuring Resistance Between Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Resistance: 0.70 - 0.76 Ω at 20°C (68°F)

If the resistance is not as specified, replace the resistor.

1. Torque: 12 N.m (122 kgf.cm, 8.8 ft.lbf)
