On-Vehicle Inspection

REMOVE V-BANK COVER
REMOVE INTAKE AIR CONNECTOR
INSPECT INJECTOR RESISTANCE
1. Disconnect the 8 injector connectors.
2. Using an ohmmeter, measure the resistance between the terminals.
  Resistance: 13.4 - 14.2 +/- at 20°C (68°F)

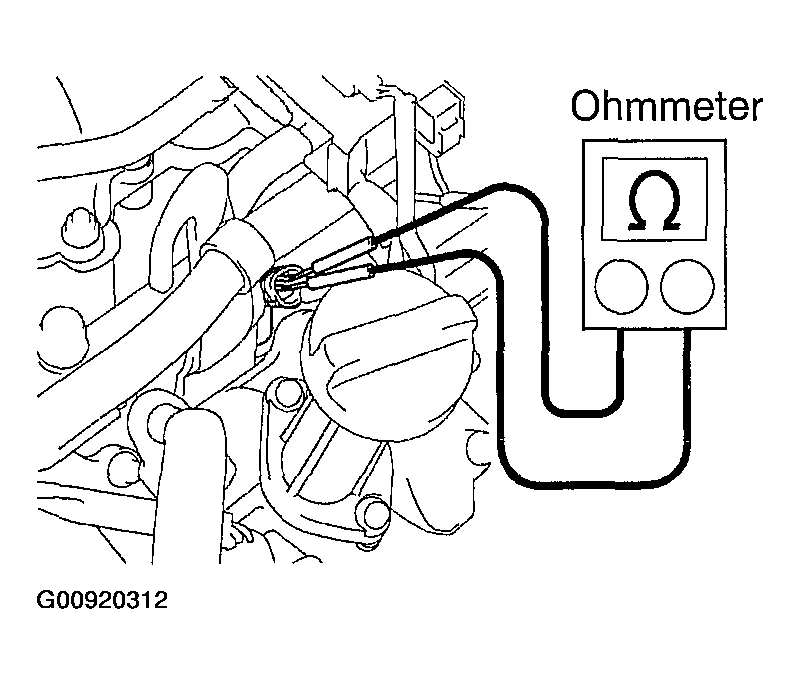

  Fig 1: Measuring Resistance Between Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the resistance is not as specified, replace the injector.
3. Reconnect the 8 injector connectors.
REINSTALL INTAKE AIR CONNECTOR
REINSTALL V-BANK COVER
